The MC7 performs grinding, milling and drilling at 12,000 rpm – unlocking new levels of efficiency in complex machining.

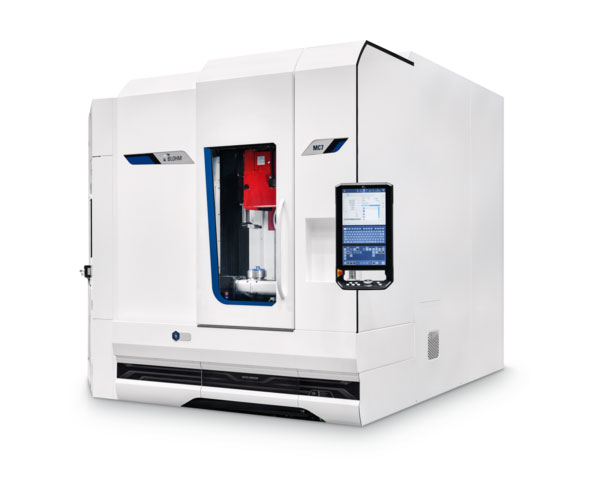

BLOHM has specially designed the MC7 for those markets where multi-face machining of complex workpieces in just a single clamping operation is demanded. The high-performance spindle, which allows speeds of up to 12,000 rpm, and the large working area make the grinding center ideal for applications such as turbine vanes and blades are for use in the aviation and energy industry.

The P360 coolant nozzle technology combined with various axis combinations allows to create new opportunities in grinding of complex geometries. The optional Tool changer ensures less operator intervention, and the continuous dressing process enables high material removal rates with high profile accuracy over long cuts. Several options for coolant supply will guarantee highest results in quality and productivity.

The machine can be loaded from the front, the top and from the side to run all kinds of automated processes.

Precision – accurate results for every workpiece

It combines maximum precision with flexible application and, with modern technology and worldwide service, ensures your productivity for the future.

• Repeatability – consistent quality throughout the entire service life
• Precision – accurate results for every workpiece
• Versatility – flexible software and intuitive operation
• High availability – robust construction and worldwide service, including digital
• Strong partnership – UNITED MACHINING SOLUTIONS (grinding, milling, EDM)

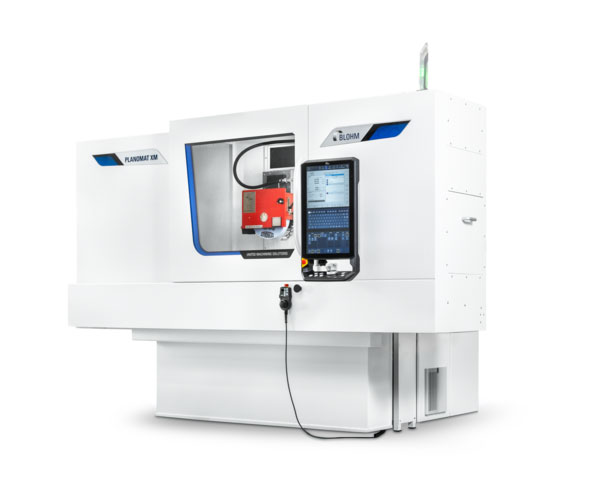

The PLANOMAT XM 408 is the solution for demanding machining tasks – from complex shapes to high-precision parts in a wide variety of materials.

Whether deep grinding or multi-stage production in a single setup: with its flexibility and efficiency, it sets standards in surface and profile grinding. A powerful drive and state-of-the-art control technology guarantee maximum precision and reliability. Our application engineers work with you to develop customized solutions for your individual requirements.

Flexible top-of-the-line technology for your production

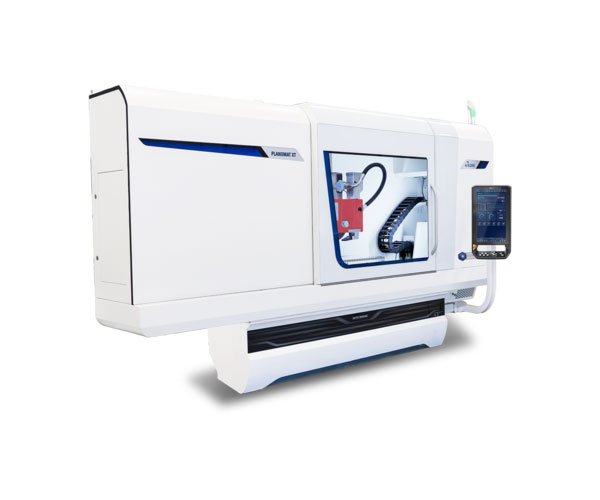

Higher axle speeds, higher accelerations and increased system rigidity - combining these improved influencing factors consistently increases productivity while at the same time increasing component quality. These features feature the PLANOMAT XT as a universal, robust and powerful flat and profile grinding machine, which consistently builds on the experience and quality of the very successful PLANOMAT HP.

To meet the diverse needs of production and flexible technological applications, BLOHM has developed the new machine as a series of machines. The extensive range of accessories combined with the PLANOMAT XT modular system (sizes from 400 x 800 to 600 x 2000 mm) makes this new generation of machines an optimal grinding machine for all customers.

In addition to high-quality machine elements such as ground ball drives, optimised ductile cast iron and precision linear guides, this generation offers the possibility to visualize screens for coolant, state and process monitoring according to Industry 4.0.

The PLANOMAT XT combines several technologies in one machine: It can be used for traverse and deep grinding as well as rapid stroke grinding with the optional linear direct drive (LDA) in the X axis.

Powerful, dynamic, highly efficient: The PLANOMAT XT offers the best conditions for both the highest demands in production and flexible technology applications.

For large batch sizes and series production

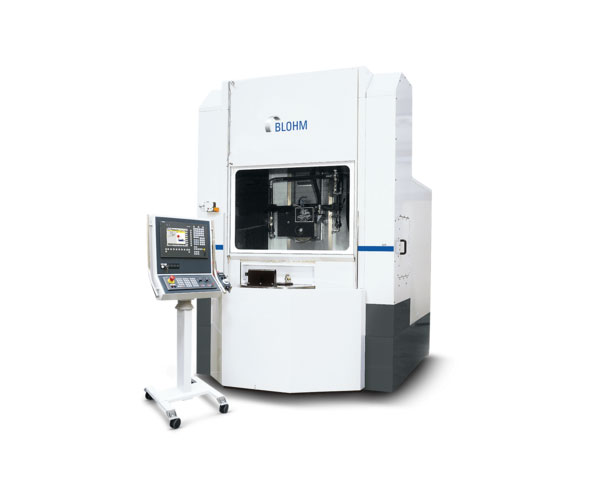

Are you looking for a grinding solution for the production of large lot sizes or batch production? Then the PROFIMAT RT could be the right machine for you. This highly efficient production machine with a traveling column design is equipped with a rotary indexing table. This enables workpiece handling in parallel with the primary processing time, i.e. continuous, simultaneous loading and unloading during the grinding process. Low setup costs combined with high efficiency and the possibility of simple adaptation of automatic workpiece change systems set benchmarks in modern and cost-effective production.

With a maximum spindle power of 60 kW and a cutting speed of up to 170 m/s, the RT is ideally suited for both conventional grinding and for CD, IPD and all CBN grinding processes.

• Rotary indexing table diameter 1,000 mm
• Traveling column design
• Rigid machine structure thanks to generous guide spacings
• High infeed speeds and accelerations

One machine, four grinding technologies

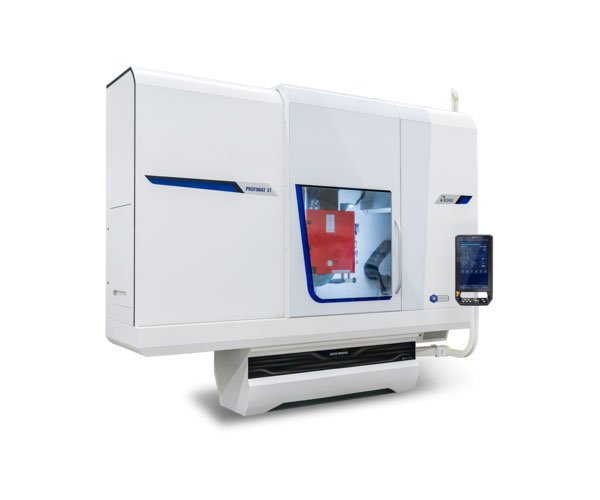

Higher main axis speeds, greater acceleration and increased system rigidity - the combination of these consistently optimized essential performance characteristics means increased productivity while improving component quality. These features distinguish the PROFIMAT XT as a robust and effective production grinding machine that consistently builds on the experience and quality of the highly successful PROFIMAT MT.

To meet the different demands of everyday production and for flexible technological applications, Blohm developed the new machine as a series. The comprehensive range of accessories combined with the modular PROFIMAT XT system (sizes from 400x800 to 600x2000mm) makes this new machine generation an optimal grinding machine for all customers.

In addition to high-quality machine elements such as ground ball linear drive, optimized ductile cast iron and precision guidelines, this generation offers the operator a completely new user interface. The three-part control panel now offers customizable screen areas. The information relevant to the required work steps can be programmed and retrieved for the specific customer. The possibilities offered here range from component diagrams, 3D models, user manuals and electric diagrams to GripsProfile, Blohm's proprietary programming system for profiling of grinding wheels. This area also offers the possibility to call up screens for coolant, statuses and process monitoring based on the Industry 4.0 concept.

The compact production solution

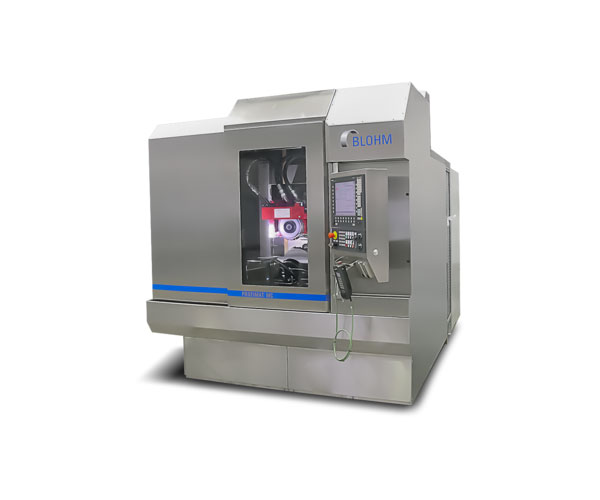

Whether precision, profile, internal or external cylindrical grinding – the PROFIMAT MC is a highly efficient grinding centre for any application. This extremely compact traveling-column machine offers everything that modern production solutions require, with a machine width of just 2000 mm. Different spindle variants enable diverse applications: The five-axis CNC profile grinding machines in the series can optionally be equipped with a horizontal spindle for drive capacities up to 60 kW as well as a stationary or an NC-swiveling vertical spindle with grinding spindle speeds of up to 60,000 revolutions per minute.

With a maximum cutting speed of 170 m/s, traveling-column machines are suitable for both conventional grinding tasks and for CD, IPD and all CBN methods. Equipped with the relevant accessories - such as automatic tooling change, for example – the PROFIMAT MC is even suitable for combination machining.

With the aid of the professional Sinumerik 840D CNC control system from Siemens, virtually any grinding task is possible.

• Traveling column design
• Rigid machine structure thanks to generous guide spacings
• High infeed speeds and accelerations
• RazorTec®, the new grinding wheel cleaning process
