- Offer Profile
- ELB-Schliff
Werkzeugmaschinen GmbH has been producing surface and profile grinding
machines for over 60 years in Babenhausen (Hessen), Germany. The company was
founded by Edmund Lang in the city of Babenhausen which
led to the name “ELB-Schliff”.
Today’s product line includes surface, profile and creep-feed grinding
machines as well as a wide range of highly efficient production systems.
Based on the decades of ELB-Schliff’s experience, there is hardly a grinding
problem
which has not already been solved.
Product Portfolio
Products

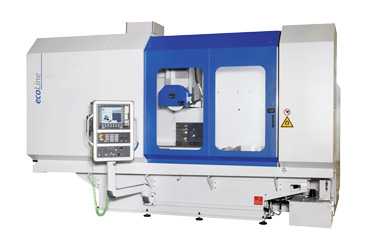

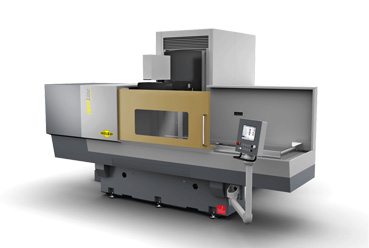

ecoLine
-
Speed grinding with linear drive technology
The ecoLine-Linear Model surface and profile grinding machines are comprised of a single steel base design. The longitudinal linear motor drive table is its defining characteristic. Since 1999, hundreds of these travelling table machines have been delivered and are well established in the market.
The compact, steel base designed ecoLine model is equipped with linear guides in all three axes. The Y- and Z-axes are driven by servo motors and ball screws (KGT) while the longitudinal X-axis table is powered via direct drive linear motor. The standard 11kW grinding spindle can be upgraded up to 26kW. The standard partial enclosure allows for easy monitoring of the grinding process. A wide variety of available options provide customization capabilities for specific requirements.
Benefit Overview
- Wear resistant and quiet linear drive
- Table velocity up to 60 m/min
- High acceleration and deceleration of main axis
- Large grinding width
- Large variety of available options

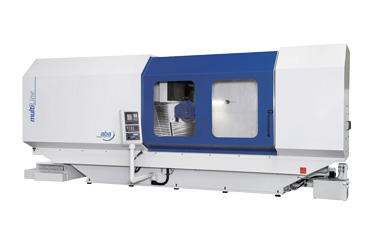

multiLine
-
Robust and economical
The mono-base design of the multiLine models allows grinding widths (Z-axis) of up to 1,020 mm. The compact, steel base designed multiLine model is equipped with linear guides in all three axes. The feed axes Y and Z are driven via servo motors and ball screws. For machines up to 2,000 mm the table is driven via ball screw (KGT). For longer tables up to 4,000 mm a linear motor (LiMo) is used.
The standard version of the multiLine comes with high-precision linear scales for positioning of the vertical axis. The direct drive grinding spindle with up to 26 kW guarantees optimal torque transfer. The partial enclosure allows easy monitoring of the grinding process. To meet your requirements this model can easily be customized through a large variety of available options.
Our dressing units to sharpen, under-cut and profile grinding wheels compliment our well thought-out machine concept. The multiLine is available with the xpressCube PLC or Sinumerik 840D CNC controls. The xpressCube allows easy operation for reciprocation surface grinding while the high end package utilizes the Sinumerik 840D for reciprocation profile grinding.
Benefit Overview
- Large cross reach
- Grinding spindle with pre-loaded precision bearings
- Very high table load capacity
- Large variety of options available
openLine
-
The machine with a view
The concept of the openLine follows the ELB-principle of absolute separation of the three machine axes. This principle has been proven a thousand times over and makes this machine perfectly suitable for prototype and small volume production. Highest geometrical precision and an attractive price makes this machine line so appealing. This machine is completely manufactured in Germany and meets the highest quality standards. Quick and uncomplicated manual grinding (adjusting and fitting) is as easy as finish grinding in automatic mode. The complete features of the basic machine as well as the ELB-technology proven over the past 50+ years make the purchase of an openLine machine a very economical investment.
The basic openLine machine is fully equipped with everything required to grind. A coolant filtration unit with a capacity of 80 l/min, flushing system with table rinse hose to clear the work area, a wheel flange, a grinding wheel, an electro-magnetic chuck for work piece clamping and all required media are included. Optionally, this model can be equipped for simple profile grinding tasks.
Benefit Overview
- Good cost-performance ratio
- Long-term precision
- Comfortable controls
- Easy to operate
- Proven components

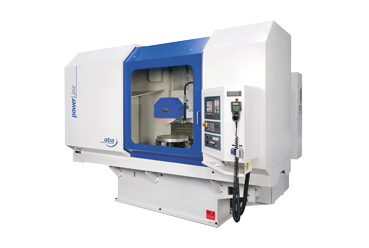

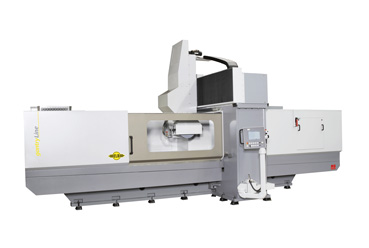

powerLine
-
Robust and economical
The powerLine technology machines are specifically geared towards creep-feed grinding applications. Their mono-base design allows grinding widths (Z-axis) of up to 700 mm with a maximum spindle power of 105 kW.
The compact, steel base designed powerLine model is equipped with linear guides in all three axes. All three axes (X, Y, Z) are driven by servo motors via ball screws (KGT). The standard version of the multiLine comes with high-precision linear scales for positioning of the vertical axis. The direct drive of the grinding spindle from 26 kW guarantees optimal torque transfer.
Different measuring devices and CD (continuous dressing) units are examples of a wide variety of available options making it easy to customize the powerLine to your individual requirements.
Benefit Overview
- Spindle power up to 105 kW
- Grinding spindle with pre-loaded precision bearings
- Capable to handle very high table loads
- Large variety of options available
gantryLine
gantryLine
-
Precise and flexible processing of large work pieces
Completely manufactured in Aschaffenburg, Germany, our gantryLine models can process large, wide and heavy work pieces up to lengths of 5,000 mm and widths up to 2,000 mm with high precision. Special designs are also available to process wider and longer work pieces. This machine line with its variety of available features is suitable for surface grinding applications all the way through complex CNC manufacturing cells. The sturdy gantry-style machine design features a modern vibration-free mechanical table drive, linear guideways in all axes, an over-sized spindle drive as well as ball screws and linear scales in vertical and cross axes. These features guarantee that today’s expectations in the precision machining of large surfaces are met for rough machining and high precision machining as well. The gantryLine achieves highest work piece precision and surface quality.
The mechanical table drive consists of a rack-and-pinion gear (helical planetary gear system with precision rack). This modern drive system is most suitable for reliable movement of heavy loads and long strokes. Its main characteristics are optimal acceleration and velocity profile. In conjunction with the CNC package this drive is able to perform controlled X-axis movement and interpolation with Y-axis.
Benefit Overview
- Highest precision through gantry design
- High thermal stability
- Modular design
- Modern table drive system
- Multi-axes operation

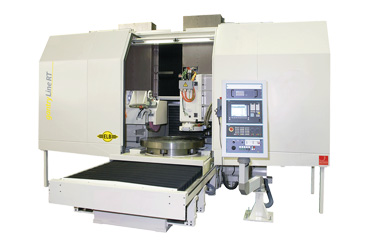

gantryLine RT
-
Complete machining in one set-up
The gantryLine RT is ideal for complete machining of symmetrical and asymmetrical cylindrical work pieces for gas/water turbines and jet engine turbine housings.
The gantry design concept of the machine provides the highest precision for large work pieces. The gantryLine RT is equipped with a rotating table to process rotation symmetrical work pieces up to 3,000 mm diameter. The torque motor of the rotating table allows for high precision machining of eccentrically located holes. The hydrostatic rotating table guarantees highest precision even with heavy work pieces.
Machining options on the gantryLine RT:
- Grinding
- Turning
- Milling
- Boring
Benefit Overview
- For work pieces up to 3,000 mm diameter
- Highest precision through gantry design
- 11 Technologies
- Up to 4 tool supports
- Flexible process guidance
- 4- and 5-axes machining

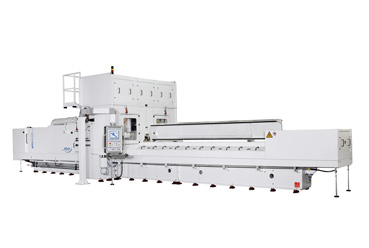

gantryLine SLM
-
High-precision grinding of long work pieces
The SLM model is a Technology Machine based on the gantryLine design. It is specifically conceived for the economic processing of long work pieces. The gantryLine SLM combines all required characteristics to achieve the highest quality and repeatability for reciprocation as well as creep-feed grinding. This machine is conceived to process work pieces up to 6,000 mm in length. Equipped with three main spindles, it is capable of solving diverse grinding problems. Initially designed for processing of linear guides, this machine finds its place in a number of other industries as well. High levels of customization is achieved utilizing a wide variety of dressing units.
All axes are equipped with high-precision linear guides and absolute measuring systems. The main table movement via linear motor achieves velocities of up to 60 m/min even with heavy loads. Acceleration and deceleration curves are short increasing the economic benefits of this machine. Vertical and cross-axes are driven via ball screws and servo motors.
Benefit Overview
- X-axis with linear motor (60 m/min, no wear, quiet)
- High acceleration and deceleration of main axes
- High spindle power
- Various roll dressing units possible
- Flexible process guidance
Controls

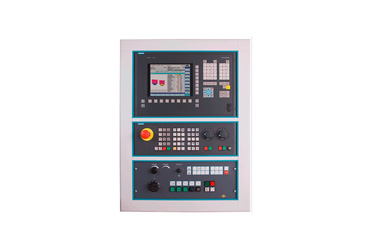

Sinumerik 840D
-
Controls
The Sinumerik 840D is capable of handling all complex grinding tasks and profiles. This control package can interpolate up to 5 axes.
This enables the machine to precisely create cone shapes, spherical shapes and threedimensional curves. There are no limits when creating wheel profiles. The 840D is capable of safely controlling large and complex grinding centers with a multitude of axes and several spindles. The user interface is designed very user friendly. ELB has created proven grinding cycles for easy parameter input via graphically structured templates.
An additional advantage of this controls package is the optional Cadnology software. Cadnology converts even extremely complex profiles directly from a CAD-file into contour data for the machine.
Of course the multitude of controlsspecific features, e.g. plain text display, language toggle, fast internal communication via Profibus, interfaces to peripheral equipment and data recorders or remote service, are also available on all ELB grinding machines.
Benefit Overview
- Interpolation of up to 5 axes
- For complex grinding centers
- Tested pre-defined cycles for almost all grinding tasks
- Parameter input in programs
- Comfortable ELB HMI
xpressCube Pro
-
Steuerungen
Fast and easy profile grinding even without CNC knowledge. Simple surface grinding with the option of upgrading to a profile grinding machine? No problem. The controls package xpressCube Pro is based on the hardware of the xpressCube.
A software update can provide the Profunctionality if desired in the future. Due to the intuitive operation and multitude of hint features the complete functionality can be utilized even without special skills. Via the Operator Management “rights” can be assigned and individual settings can be adjusted based on the operator.
Grinding programs as well as dressing profiles need only be entered via parameter input and don’t have to be programmed from scratch. If a profile should not be available, user programs can be uploaded at any time.
The Pro version is offered with following options:
- Groove / face grinding
- Profile dressing
- Wheel management
- Program management
- Operator management
- Fully automatic balancing
Benefit Overview
- Optimal functionality
- Easy to operate
- Easy set-up
- All messages in plain text
- Robust design

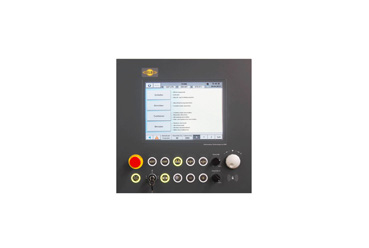

xpressCube
-
Steuerungen

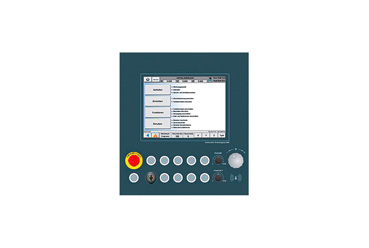

The xpressCube combines a powerful control with comfortable visualization via 10.4“ TFT-Touch-Display in one unit. The user-friendly and easy operator screens allow fast and effective realization of manufacturing tasks in prototype, small batch and mass production. The new xpressCube meets the Machine Directive 2006 / 42 / EG while being very comfortable to operate.
Direct input of grinding parameters via the display. All functions can be switched on and off via the display as well as all messages being provided in plain text on the display. The new xpressCube offers a variety of well-structured grinding programs.
- Reciprotation grinding
- Plunge grinding
- ECO grinding (combined plunge and reciprocation grinding)
- Grinding with manual feed via hand wheel
Parameters can be altered during machining and take effect immediately. Optimal quality can therefore be achieved with complex materials and machining tasks. Set-up of work pieces, grinding wheel and dressing units is easy with the “Teach” function. Dressing can be performed automatically with tablemounted or head-mounted dressing units. The new xpressCube enables beginners and experienced grinders alike to start producing quickly and safely.
Benefit Overview
- Optimal functionality
- Easy to operate
- Easy set-up
- All messages in plain text
- Robust design

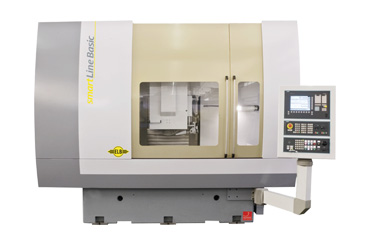

smartLine

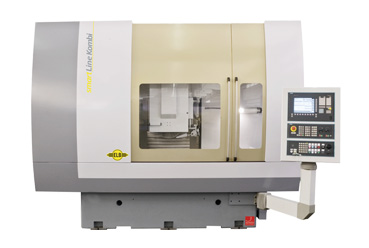

smartLine Kombi millGrind
smartLine Kombi
-
The new standard in precision grinding
The smartLine covers the entire spectrum of travelling table grinding machines. From simple reciprocation surface grinding through speed-stroke, slot and profile grinding all the way to creep-feed grinding. This machine concept solves every grinding task. The machine‘s versatile building block system is designed to allow almost any combination of components to solve your specific grinding task.
The Kombi-version of the smartLine allows individual configurations all the way up to a complex creep-feed grinding machine. Grinding width, grinding height, type of drive and spindle power as well as all variations of dressing units from simple table-mounted dressing diamond to CD-grinding with a headmounted roll dressing unit can be selected to meet specific requirements. The same standard dimensions for grinding lengths are available as for the pre-configured machines. It is possible to combine the grinding width of the N-line with the upgraded column of the BD-line. This includes the respective features as well.
Benefit Overview
- Good cost-performance ratio
- High-powered spindle
- Roll dressing units on spindle head
- Flexible process guidance
- Multi-axes machining

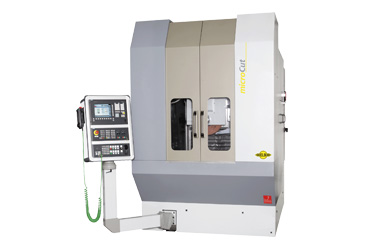

microCut
microCut
-
Compact solution for creep-feed grinding
The microCut model was specifically designed to meet the requirements of profile and creep-feed grinding applications. The modular traveling column design offers a small foot print which can be easily configured into economical production cells frequently used in the turbine industry. This machine is available in compact standard sizes but special designs with spindle power up to 52 kW are also feasible.
The integration into production lines is achieved through automatic material handling and tool changes. A common solution to reduce non-productive time is to equip the microCut with an index table to allow loading and unloading during machining times.
For high-precision applications, dressing of the grinding wheel can be done on the table with a roll dressing unit or via interpolation of feed and cross axes. For high-production grinding, head mounted roll dressing units for intermittent or continuous use are available. For complex grinding tasks, dual head mounted dressing units and tool changers are being used. The microCut is frequently used with Corundum, CBN and diamond grinding wheels.
A trunnion table can be mounted on the machine table to allow the processing of multiple sides of a work piece. With the Sinumerik 840D sl CNC control the microCut can grind complex shapes by interpolating multiple axes. Proven ELB programming templates are available for most grinding applications. We have application engineers and programmers on staff for every grinding task.
Benefit Overview
- Compact machine design
- High rate of material removal
- High long-term precision
- Ideal for cell layout
- Optional index table for loading/ unloading during grinding
- Automatic tool changer

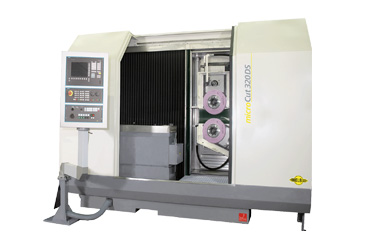

microCut 320 DS/TS
-
Economical creep-feed grinding
The microCut 320 DS / TS is equipped with two opposing grinding spindles. This design was specifically conceived for the simultaneous grinding of opposing surfaces. This grinding process offers numerous advantages including a reduction in processing time, increased parallelism and profile symmetry of the work piece. Additionally, the opposing grinding forces counteract and avoid material stresses in the work piece.
Profile dressing of the grinding wheel can be performed on the table or with headmounted roll dressing units. Headmounted dressing units can be used intermittently or continuously. To accommodate for the offset between two profiles the position of the upper dressing unit can be adjusted in the cross direction via CNC controls. This machine is commonly used to grind the fir tree profile on turbine vanes. To increase productivity this model can be equipped with a loading table rotating +/- 180º. This table allows the loading and unloading of work pieces during the grinding process. Grinding wheels and dressing rolls are being changed in a separate machine area to improve ease of operation.
This machine comes equipped with the Sinumerik 840D CNC control system by Siemens and is prepared for a multitude of applications by ELB pre-defined program cycles. We have application engineers and programmers on staff for every grinding task.
Benefit Overview
- Large machining capacity through simultaneous grinding of two sides
- Compact machine design
- Avoiding of material stresses through dual spindle grinding
- Great long-term precision through single set-up machining
- Ideal for cell configuration
- Optional loading table
- Automatic tool changer
rotary
rotary H
-
Economical grinding of small work pieces
This model is well suited for efficient, economical processing of circular work pieces via surface and step grinding operations. There is no lost time through deceleration, acceleration and reversal as with conventional reciprocation grinding. The grinding wheel remains in contact with the work piece throughout the grinding process. Single work pieces can be located centrically on the table while multiple work pieces can be located concetrically to optimize table space utilization. A tilting table option allows grinding of chamfers or blade edges (i.e. circular blades), where the table of the H6/8 models can be tilted +/- 5 degrees.
The high-precision rotary table of the rotary H 6/8 models is belt driven while the H 10/12 models are equipped with a hydrostatic bearing and torque motor drive. This machine is offered with the xpressCube SPS controls package. A software option is available for step grinding operations.
Benefit Overview
- Compact and robust machine design
- High productivity through continuous contact between wheel and work piece
- High long-term precision
- Precision rotary table
- Easy to operate

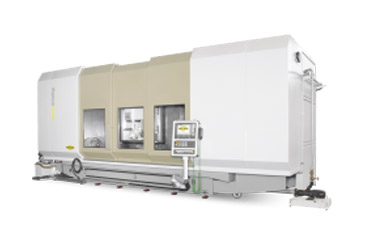

broachGrinding / broachSharpening

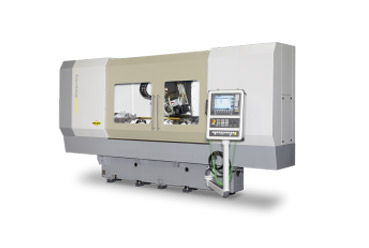

BG
-
Traveling table / column machine for broaches
The BG handles the grinding of flat and round broaches with ease. It
finds its place mainly in the automotive and aerospace industries. Design and
programming of the BG is based on many years of design and manufacturing
experience in the tool industry. The BG signifies not only a machine concept but
also a complete technology package consisting of machine and competence in tool
manufacturing.
The BG 1000 / 2000-T models are very compact traveling table machines for the
grinding of broaches up to 200 mm
diameter. They are designed to grind straight and helical teeth with very stable
grinding behavior.
The BG 2000 / 3000-C models are based on the moving column principle and display
very consistent machining even on very heavy work pieces. They are designed for
broaches up to 600 mm diameter. The distinguishing characteristics are profile
precision, maintaining center and ease of use. Grinding of inner features is
available as an option.
BGS
-
Broach Sharpening
The BGS product line consists of machines
designed for the sharpening of flat and round broaching tools found mainly in
the automotive and aerospace industries. Design and programming of the BGS is
based on many years of manufacturing experience and knowledge of the tool
industry. The BGS series signifies not only a machine concept but also a
complete technological package consisting of machine and competence in the tool
manufacturing arena.
The machines of the BGS series are specifically designed for the sharpening
process. The design concept with high dynamics and adapted grinding spindle
allow the efficient and economic sharpening of broaching tools. An onboard
measuring device probes the tooth root and cutting edge to determine the tooth
pitch.
The machines are available as a standard for tools with circular flutes or
through the optional pivoting spindle for circular and helical flutes.
