Applications

The ballistic separator STT2000 is specially designed for sorting the following feed materials:

• Paper/cardboard
• Films and mixed hollow body products
• Lightweight packaging
• Plastic
• Plastic fraction from domestic waste

Features

PIVOTING FRAME

• With manual tilt adjustment between 0° and 25° for fast adjustment of sorting quality

SHAFT QUALITY

• Robust design for sorting dry waste
• Optimum rating of shaft stroke and speed – for maximum throughput and minimum machine vibrations

STACKING

• A maximum of three ballistic separators can be stacked to increase the separation quality for different particle size fractions

EASY MAINTENANCE AND ADJUSTMENT

• Bolt-on screens
• Easy access to all areas of the machinery thanks to maintenance doors

MODEL VARIETY

• A choice of various machine widths and lengths for high-efficiency sorting processes in line with the required throughputs

ADJUSTABLE OUTER SKIN

• For flexible design of the material infeed and plant integration

Applications

The PPK200 ballistic separator is specially designed for separating paper, OCC and cardboard without 3D fractions

Features

PADDLES

• Z-shaped paddles for effective separation of paper and cardboard
• Bolt-on coverings with different perforations and surfaces for easy maintenance and adjustment

MAINTENANCE DOORS

• For convenient access to all machine areas

SHAFT QUALITY

• Robust design for sorting dry waste
• Optimum rating of shaft stroke and speed – for maximum throughput with minimal machine vibrations

ADJUSTABLE OUTER SKIN

• For flexible design of the material infeed and plant integration

Applications

The STT5000 ballistic separator is our all-rounder for separating household waste, mixed commercial waste and bulky waste.

Features

PIVOTING FRAME

• With hydraulic tilt adjustment between 7.5° and 25° for easy adjustment of sorting quality

MAINTENANCE DOORS

• For convenient access to all areas of the machinery

MODEL VARIETY

• A choice of various machine widths and lengths for high-efficiency sorting processes in line with the required throughputs

ADJUSTABLE OUTER SKIN

• For flexible design of the material infeed and plant integration

PADDLES

• Bolt-on coverings with different perforations and surfaces for easy maintenance and adjustment
• Very robust design for processing flows of moderately heavy and heavy materials

SHAFT QUALITY

• Robust design for sorting moist waste
• Optimum rating of shaft stroke and speed – for maximum throughput and minimum machine vibrations

MODULAR STACKING

• A maximum of two ballistic separators can be stacked to increase separation quality for different particle size fractions

Specially designed for large material

Thanks to generously sized material outlets and completely smooth contours in the screen outlet, the STT6000 can sort individual particles that are up to two metres long.

Features

SHAFT QUALITY

• Single-piece cast shafts with an extra-large diameter provide extremely good stability without the need for additional supports inside the machinery

PADDLES

• The special layout of five paddles and very thick materials ensure low-vibration operation and maximum stability – even if the materials being sorted are incredibly heavy

MAINTENANCE DOORS

• For convenient access to all areas of the machinery

LUBRICATION

• Since the labyrinth sealing gaps are filled with grease during operation via the lubricant holes in the shafts, the multi-sealed shaft bearings do not require any additional lubrication

PROTECTION AGAINST WEAR

• The side walls around the paddles feature replaceable wear protection plates

Durable STADLER quality it pays for itself in the long run

The use of 10-mm Hardox steel results in robust and incredibly strong, torsion-resistant trommel screens. What is more, the drive, support and guide wheels feature double bearings for extremely low-vibration operation.

The aim is to create order

Reliable break-up of material compounds. Even distribution of the materials being sorted. Optimum sizing of materials into different particle sizes. This is what our trommel screens do.

Features

BASE FRAME

• Robust design for smooth operation

TRANSPORT

• STADLER trommel screens are also available in a bolted version – making extra-large designs easier to transport

SIZING

• Different screen plates are available with perforations in various shapes and sizes – including winding protection

SUSPENSION

• Plastic-coated drive, support and guide wheels ensure low-vibration operation even at high speeds

EASY MAINTENANCE

• STADLER trommel screens feature large access walkways, multiple maintenance openings, generously sized and monitored safety doors and interior lighting

For flows of light to moderately heavy materials and average centre distances, together with compact design.

• Robust steel table and sliding belt support
• Available with four different side-wall heights and seals
• Robust scraper made of steel or vulcanised rubber depending on the flight design
• Space-saving SEW bevel gear motors

For flows of moderately heavy to heavy materials and long centre distances with low drive powers at the same time.

• Rolling belt support on three-part support units
• Available with three different side-wall heights
• Robust scraper made from various steel grades or vulcanised rubber depending on the flight design
• Space-saving SEW bevel gear motors

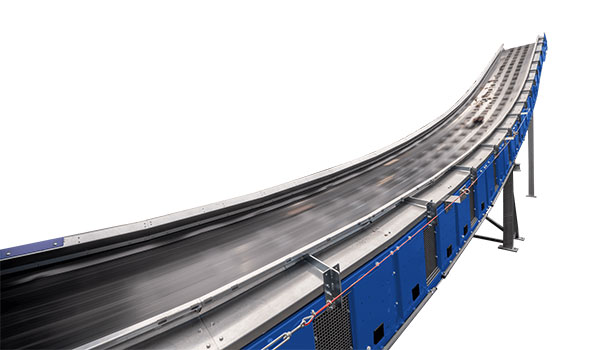

The STADLER acceleration conveyor has been specially designed for use with sensor-based sorting technology. Thanks to conveyor speeds that can be precisely controlled, it effectively spreads the flow of material.

• Special side wall sealing for operation at high conveyor speeds
• Expansion hood with integrated maintenance platform available as an option
• Special support rolls and balanced drums for low-vibration operation
• Space-saving SEW bevel gear motors

The material is accelerated and straightened. As a result, sensors (not included) detect the material on the conveyor and individual particles can be blown out with a nozzle bar (not included)

• An endless belt change is possible (observe maintenance clearance)
• Higher speed for film/paper
• The standard version includes a slot for a sensor under the belt; optionally an optical sensor can also be used
• Space-saving SEW bevel gear motor with sliding movement to create space in the area of the conveyor's head end

For material and air control in sortingsystems with compressed air discharge of one or two fractions.

• An adjustable separating splitter allows optimisation of the separation precision
• One maintenance access point and one maintenance opening are located on both the left and right side of the hood
• Integrated maintenance platform with fixed position inside the hood
• Different units and conveyors can be connected to the EH via an adapter.

Bush conveyor chains allow flows of even heavy and large materials to be transported with ease.

• The use of sturdy lateral sections and various chain and belt designs enables the STADLER chain conveyor to transport whatever material is required
• The KF can be used as an infeed conveyor, a baler feed conveyor or a feed hopper, depending on how the angular sections are positioned
• Space-saving SEW bevel gear motors
• The drive and return shaft can be removed laterally, forwards or backwards.

The side wall and belt position have been specially designed to sort material as efficiently as possible directly on the conveyor.

• Discharge chutes that can be flexibly positioned allow sorting of different fractions
• The ergonomic design of the frame enables a comfortable working position
• Adaptable belt speeds for optimum sorting results
• Space-saving SEW bevel gear motors

Developed for temporary storage of sorted material fractions, the STADLER storage conveyor has side walls up to 2.5 metres tall.

• Rolling belt support means heavy materials can be accomodated in the storage area
• Thanks to robust doors made of steel segments, the entire storage capacity can always be fully utilised
• Space-saving SEW bevel gear motors

The material is evenly distributed and thus ensures a constant feeding of the system and higher purity.

• The system consists of a combination of our DW metering drum and our KF chain conveyor in the bunker version, whereby dosing and storage of the material is made possible
• Reliable material distribution
• Large maintenance opening due to moving unit blockages and wraps can be removed even in the filled state
• The working height of the drum can be adjusted to different heights (100 mm steps)
• Lateral removal of the rotor body possible

A shining example of German engineering

Our powerful label remover processes up to nine tonnes of plastic bottles per hour – achieving a quality standard of up to 80 per cent of labels removed. It features a robust overall construction and is incredibly resistant to impurities.

Equipped with blades made from high-tensile steel that are attached to the rotor at one end so they can oscillate freely, and to the housing’s inner wall at the other, the label remover processes a mass flow of up to nine tons per hour depending on the particle size and material composition.
