  • Offer Profile
  • The INDEVA® solutions range of products includes Intelligent Devices for Handling (INDEVAs), Automatic Guided Vehicles (INDEVA® AGVs) and Modular Structures for Lean Manufacturing implementation (INDEVA Lean System®).

    The INtelligent DEVices for hAndling (INDEVAs) are a new generation of advanced industrial manipulators. When linked to bespoke gripping devices designed by our engineers specifically for each application, the INDEVAs can be truly considered ‘human extenders’.

    The INDEVA® Automatic Guided Vehicles (INDEVA® AGVs) and INDEVA Industrial Manipulators have been chosen by large manufacturing companies in the Automotive, Mechanical, Electronic and Fashion Industries, because we provide our customers with expert, dedicated attention to their requirements from concept to commissioning and beyond.

Product Portfolio
  • Industrial Manipulators and Material Handling Solutions

  • The most complete range of industrial manipulators nowadays on the market

    It comprises:

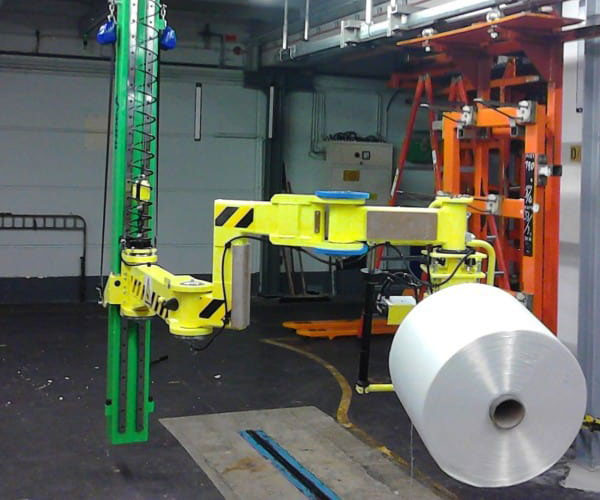

    • Intelligent Devices for Handling INDEVA® of the Liftronic® Series featuring advanced electronic control technology
    • Traditional industrial manipulators of the PN Series featuring pneumatic control technology

    Scaglia Indeva® distinguish themselves from the other manufacturers of industrial manipulators

    because of their Intelligent Devices for Handling or INDEVA® (Liftronic® Series) . The INDEVA® are an evolution of the industrial manipulators and feature cutting edge electronic control.
    Scaglia Indeva®’s range includes also traditional pneumatic industrial manipulators (PN Series), featuring pneumatic control. in order to satisfy special demands and suit applications in controlled environment with danger of explosion, according to the ATEX Regulations.
      • Industrial Manipulators

      • The widest range on the market  comprising both pneumatic and electronic manipulators.

        The INtelligent DEVices for hAndling or INDEVAs feature advanced technology that distinguish them from traditional industrial manipulators, and provide a step forward towards improved productivity, safety and ergonomics. Thanks to intelligent electronic control, an INDEVA® is faster, more reactive and precise, to the point that it can truly be considered a powerful ‘human extender’.

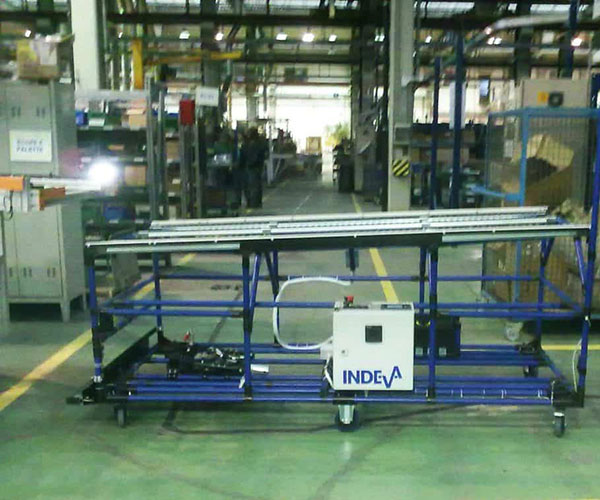

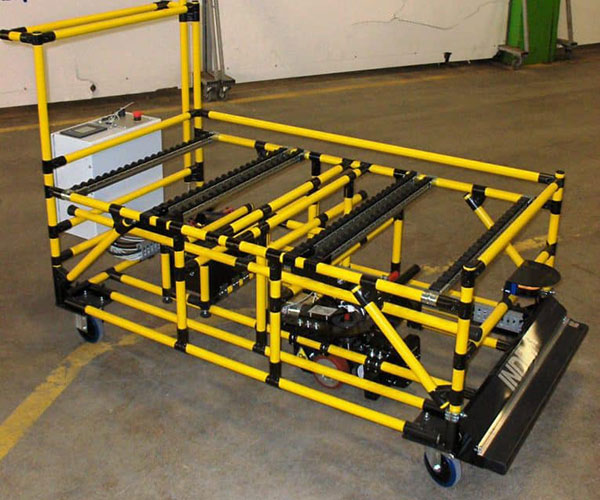

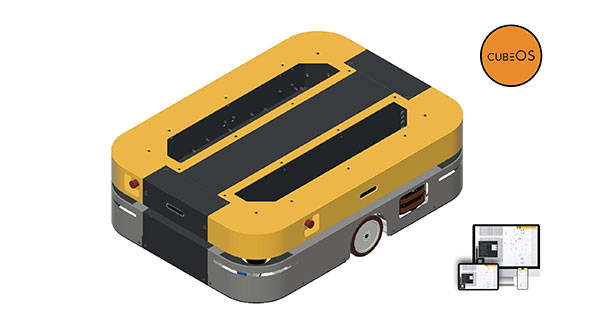

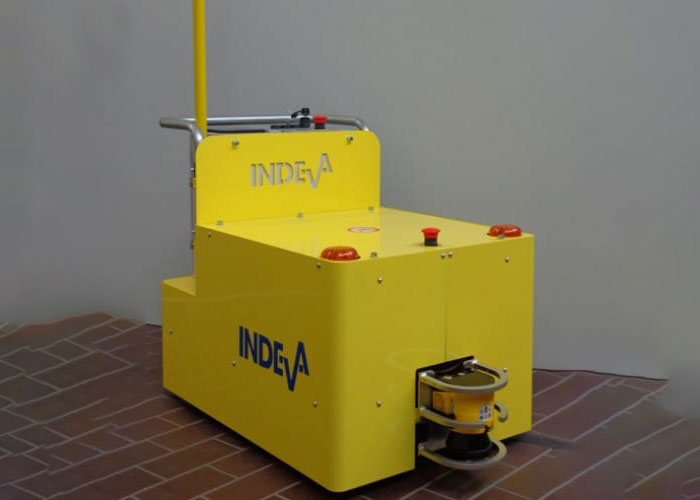

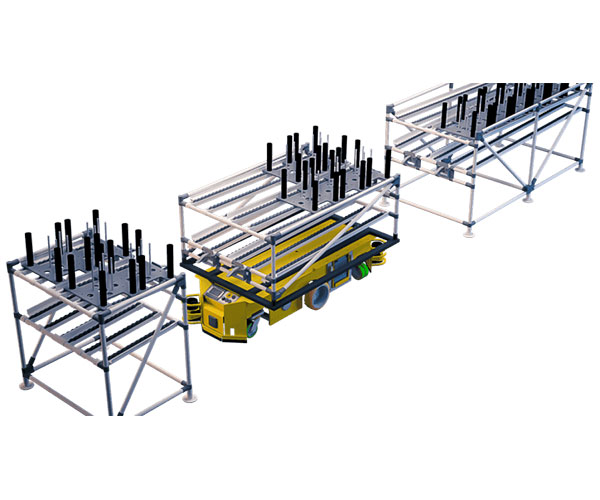

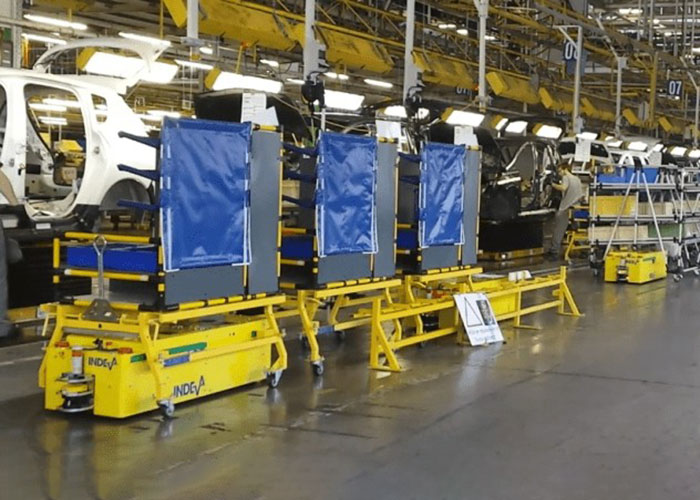

      • Automatic Guided Vehicles

      • The INDEVA® Automatic Guided vehicles (AGVs) are designed by INDEVA® R&D personnel with the cooperation of research institution and universities for the most advanced control techniques. Scaglia Indeva is committed to continuously update its AGV’s software and features to ensure alignment to the technology edge.

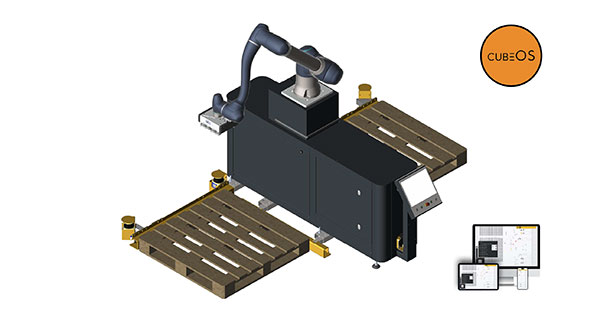

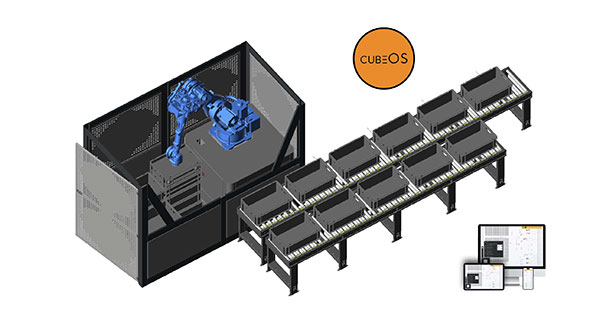

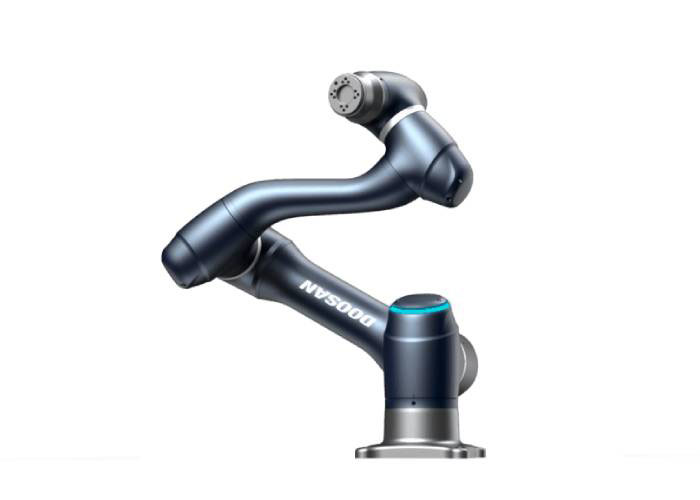

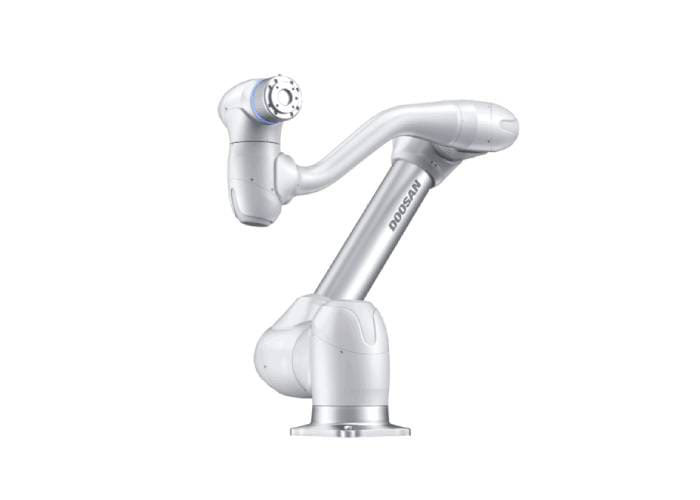

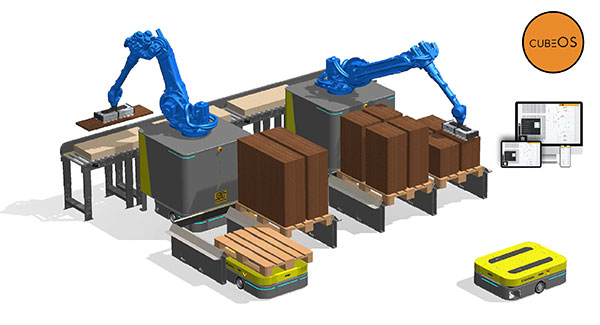

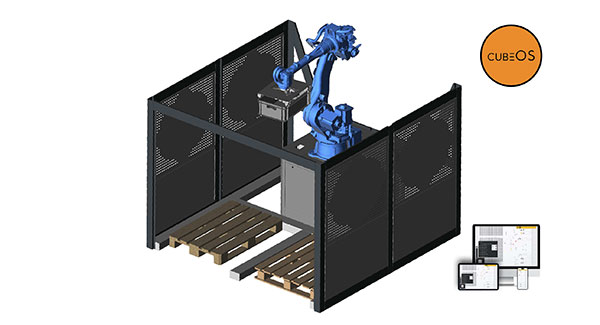

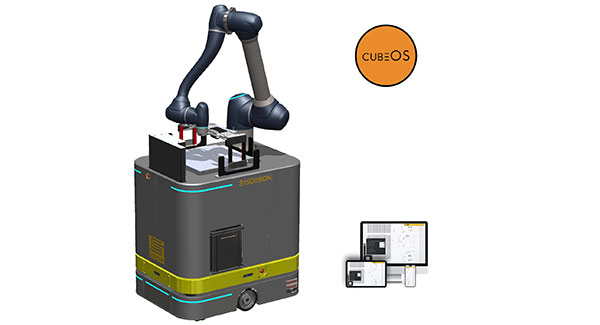

      • Robotic Automation

      • As part of its ongoing expansion into products and systems for the smart factory, Scaglia INDEVA S.p.A. has acquired a majority share in SysDesign S.r.l., integrating the assets of its INDEVA Cobotics division into the deal.

        With this move, INDEVA SysDesign establishes itself as a key provider of flexible robotic automation solutions for the connected factory, with a particular emphasis on production line automation and intelligent palletizing systems.

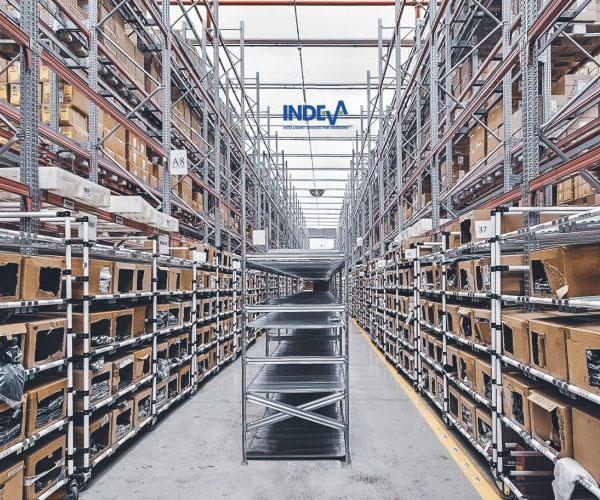

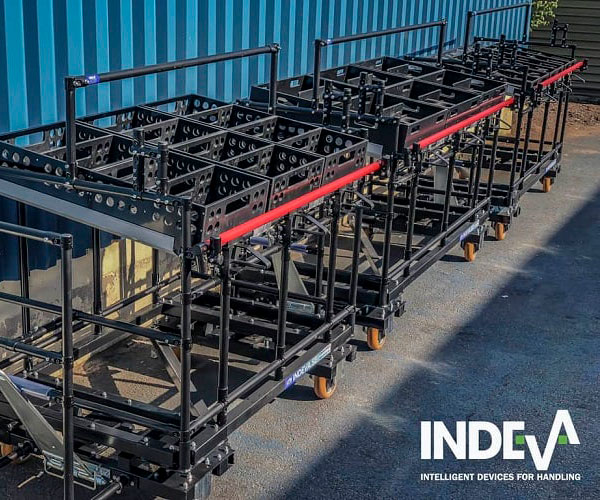

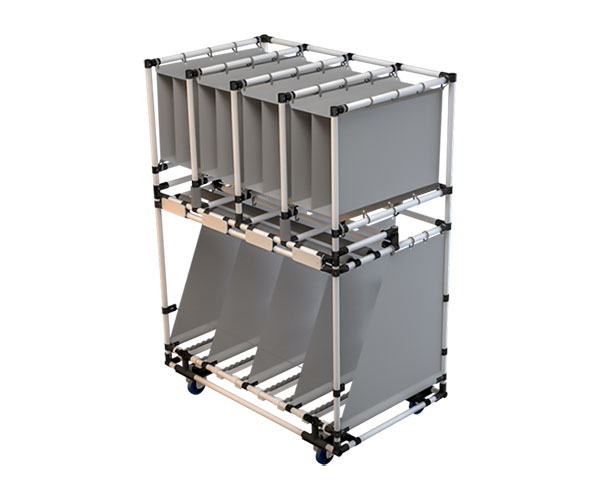

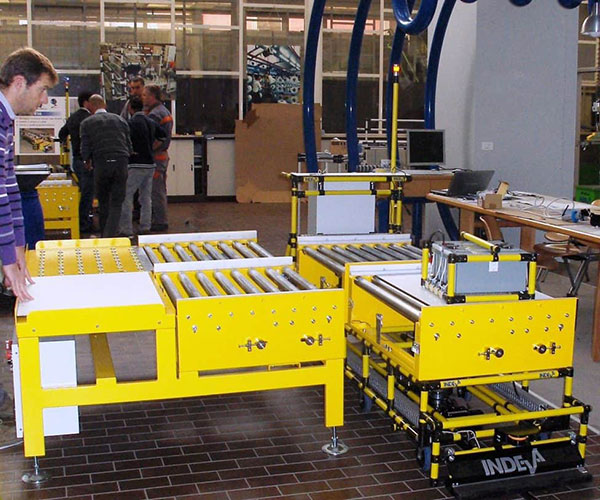

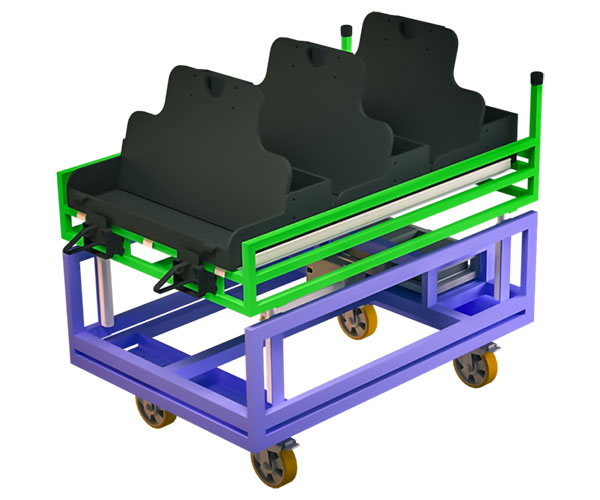

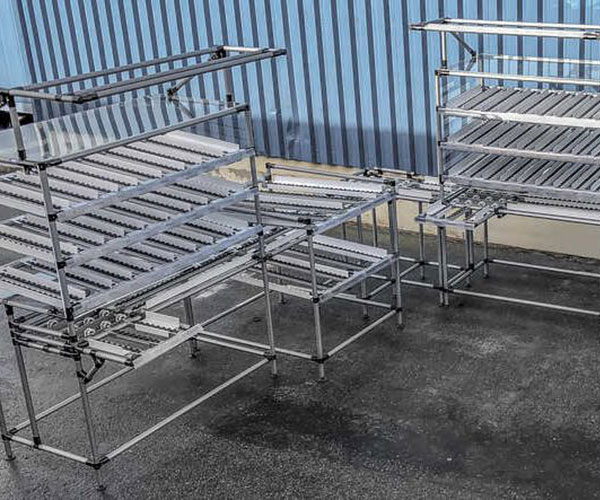

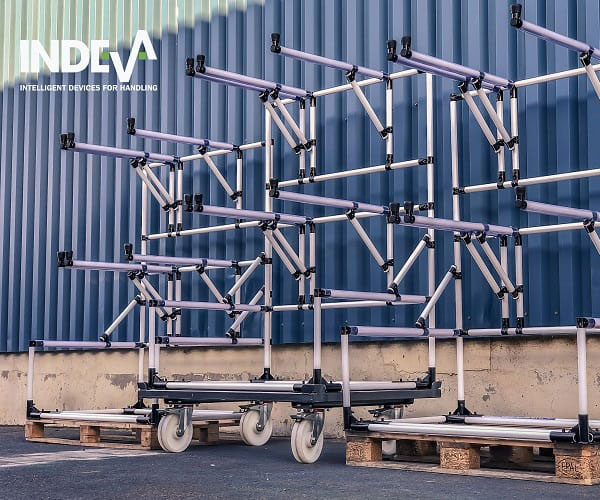

      • Lean System

      • Since the late 1990’s Scaglia Indeva S.p.A. has been supplying modular structures and lose components designed to suit the Lean manufacturing philosophy.

        The INDEVA Lean System® comprises a wide range of components that  enables you to design and build a variety of structures to suit any need within the manufacturing process.
    • Skills

        • SOLUTIONS

        • Industrial manipulators with bespoke gripping tools suitable for all industry sectors. With an INDEVA®, thousands of repeated and satisfied customers worldwide have increased their productivity and operator wellness. Find out the material handling solution that best suits your requirement.
        • Ergonomics and safety for Manual Material Handling (MMH)

        • Manual material handling (MMH) work contributes to a large percentage of musculoskeletal disorders reported annually in Europe and in the United States. Musculoskeletal disordersoften involve strains and sprains to the lower back, shoulders, and upper limbs.
        • Indeva Lean System® fully supports the principles of the Lean manufacturing

        • Indeva Lean System® features versatility and reusability and it is, therefore, the ideal tool for those companies aiming for space optimisation and continuous improvement processes for a total business efficiency and profitability.
        • Internet of Things (IoT)

        • Many are the applications, uses and relative advantages of industrial manipulators interconnected with your IT system and /or other machines in your assembly line or in your warehouse.
      • INDEVA®, Electronic Manipulators Liftronic® Series

      • Advantages of Liftronic® INDEVA® Intelligent Devices for Handling vs. traditional pneumatic manipulators.

        • auto-weight sense and auto balancing
        • very responsive and precise
        • ergonomic and effortless handling
        • remote trouble shooting through App-Indeva
        • efficient and user-friendly auto diagnostic system: many auto- diagnostic parameters allows for accurate and quick fault diagnostic.

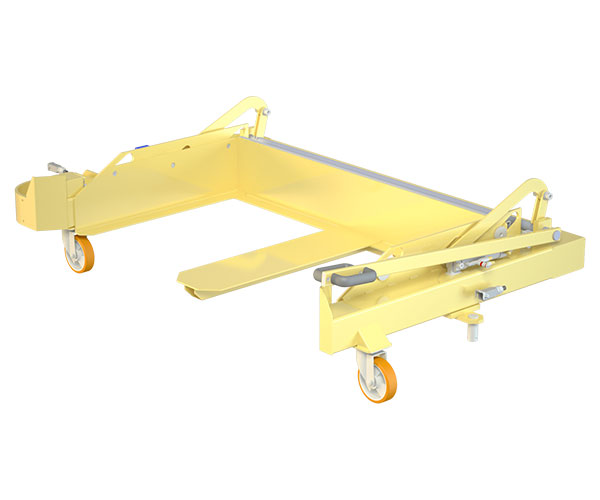

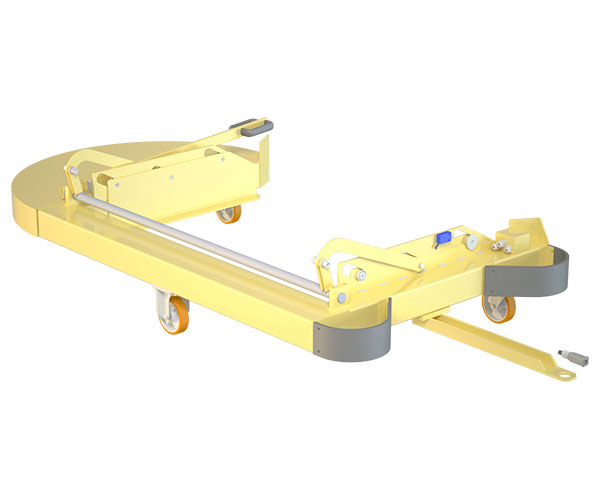

          • Liftronic® Mobile

          • A Lift Assist Device INDEVA with a base suitable for being fitted on a pallet truck

            Liftronic Mobile is an INDEVA Lift Assist Device designed to be installed on a pallet truck so that it can be moved and used wherever it is needed.

            Main features and Advantages of Liftronic Mobile

            • Easy to fix onto a pallet truck
            • One lift assist device available for different work stations
            • Allows for very smooth handling operations thanks to its 4 jointed arm
            • Auto-weight sense and auto-balancing
            • Safe and easy to move around
            • Fast, responsive and precise
            • Low carbon footprint
            • Easy interchange of grippers for different applications
            • Easy maintenance, having all components easily accessible behind a removable carter

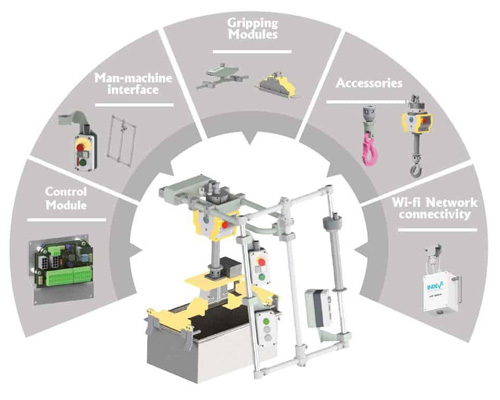

          • INDEVA® Modulo

          • Design,build and modify your own gripping tool

            INDEVA® Modulo is a standard component range for assembling an end effector which is to be attached to Liftronic® Easy tool head. You can design your end effector to best suit your needs and then purchase the necessary parts. These standardised modules have been proven over many years and are a key part of our continuous improvement and development program.

        • Liftronic® Pro

        • Liftronic® Pro belongs to the INDEVA® intelligent industrial manipulators Liftronic® Series;

          Suitable for custom handling solutions involving load rotation or vacuum gripping and/or special handing controls.

          Models are available from 80 to 320 kg capacity, including the end effector. It can be applied to different supports such as column with Orbit Arm, ceiling, overhead rail and bridge crane system, Liftruck.

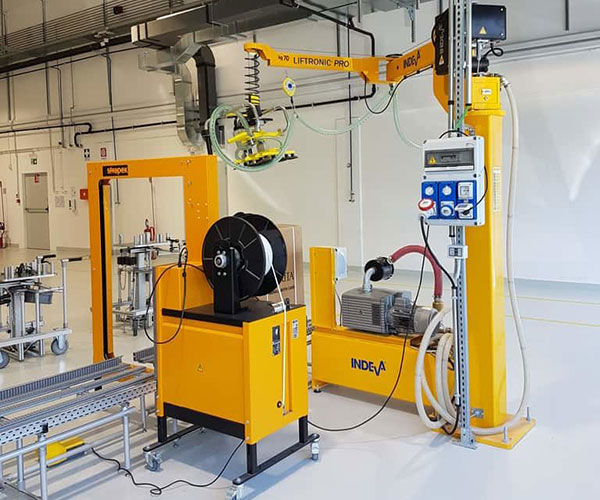

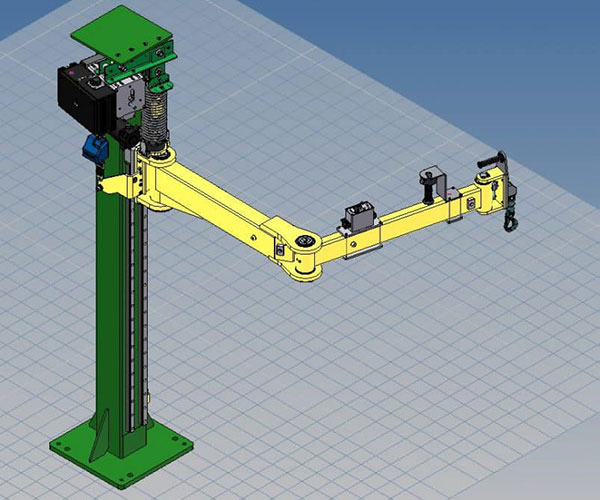

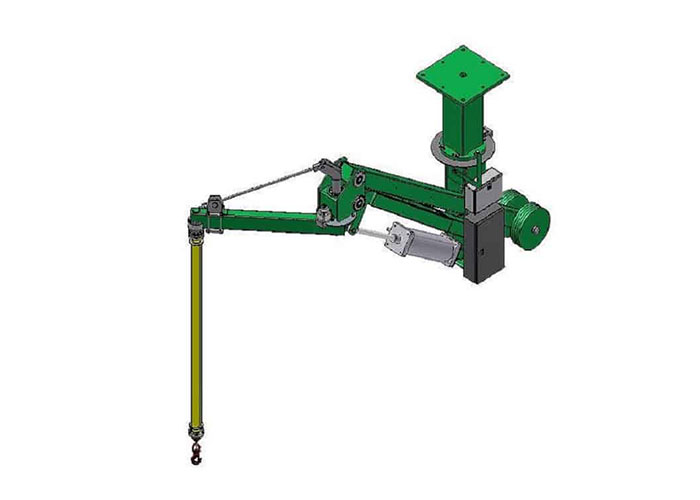

            • Liftronic® Pro Column Mounted with Articulated Arm

            • Liftronic® Pro version Column + Arm  is available in different configurations depending from the max load capacity, arm length and column height required for each application. It is delivered complete with a custom designed gripping tool. It can be fixed unto the floor or on a moveable base platform.

              MAIN FEATURES
              • Auto-weight sense and auto-balancing
              • Can be integrated with App-Indeva and INDEVA® Gateway
              • Unparalleled safety
              • Ergonomic design
              • Bespoke gripping devices
              • Compact and light
              • Fast, responsive and precise
              • Low carbon footprint

              TECHNICAL DATA
              Max. gross capacity: from 80 to 320kg (weight of lifting tool included)
              Power supply: 110/230 V-AC – 50/60 Hz
              Power consumption: max 700 VA
              Vertical stroke: up to 2.80m

            • Liftronic® Pro – Overhead rail – ceiling mounted manipulator with jointed arm

            • Liftronic® Pro can be supplied with an articulated arm fixed to the ceiling or to overhead rails. Overhead rail or ceiling mounted INDEVA® Liftronic® Pro with articulated arm. This solution is suitable when you can’t use any space on the floor for a column mounted solution or you need to cover a large area.

              MAIN FEATURES
              • Auto-weight sense and auto-balancing
              • Can be integrated with App-Indeva and INDEVA® Gateway
              • Unparalleled safety
              • Ergonomic design
              • Bespoke gripping devices
              • Compact and light
              • Fast, responsive and precise
              • Low carbon footprint

              TECHNICAL DATA
              Max. gross capacity: from 80 to 320kg (weight of lifting tool included)
              Power supply: 110/230 V-AC – 50/60 Hz
              Power consumption: max 700 VA
              Vertical stroke: up to 2.80m

            • Overhead Rail Mounted Manipulator INDEVA® Liftronic® Pro

            • An INDEVA® Liftronic® Pro rail mounted model slides along overhead mounted rails. A rail mounted model Liftronic® slides along overhead bridge mounted rails. It is suitable for covering a large work area.

              Main features
              • Auto-weight sense and auto-balancing
              • Can be integrated with App-Indeva and INDEVA® Gateway
              • Unparalleled safety
              • Ergonomic design
              • Bespoke gripping devices
              • Compact and light
              • Fast, responsive and precise
              • Low carbon footprint

              TECHNICAL DATA
              Max. gross capacity: from 80 to 320kg (weight of lifting tool included)
              Power supply: 110/230 V-AC – 50/60 Hz
              Power consumption: max 700 VA
              Vertical stroke: up to 2.80m

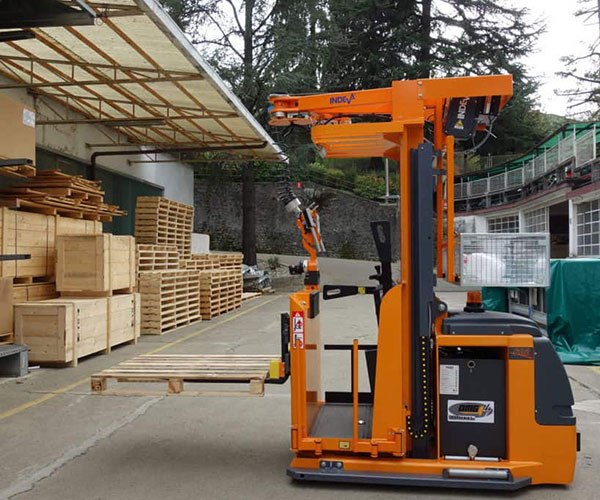

            • INDEVA® Liftruck

            • INDEVA® Liftruck: Transpallet or lifting truck or order picker with an electronic manipulator Liftronic® mounted on it.

              Main features

              • Max capacity: 50 kg
              • Max vertical stroke: max 3000 mm
              • Max lifting speed: 0,6 m/sec
              • Control: electronic – 24 Volt D.C.
              • Power consumption: 700 VA
              • Jointed Arm : Orbit-Arm®- possibility of custom arm lengths.
              • Gripping tool with orbital tool head and expanding chuck: equipped with reel barycentre adjust device and quick coupling device for quick chuck replacement allowing to handle reels with diameters ranging from 70 to 150 mm .
              • It is possible to use a vacuum gripper  as end effector for handling cardboard cases.
              • Control panel: it comprises a direction indicator, a battery charge indicator, a steering wheel, control handle for back/forward moves, emergency stop.
              • Safety devices: a failsafe mechanic lock is triggered in the case of a power shortage and a brake limits the lowering speed of the motor.
            • Liftronic® Pro – Linear Manipulator version

            • Linear version is the best solution for reaching offset loads in a work area with low ceiling.

              Main features

              • Auto-weight sense and automatic load weight balancing
              • High precision in load placing
              • The load doesn’t suffer any impact when positioned
              • Touch sensitive handle giving fingertip controlled movement: you can move the load at the exact speed you want, very quick or very slow
              • Total safety in the event of sudden loss of load: the controls immediately balance the system, so removing the risk of sudden upward movement of the tooling
              • User-friendly
              • Easy to maintain
              • Remote servicing available
            • Telescopic Liftronic® manipulator

            • An overhead rail mounted Liftronic® coupled with an aluminium telescopic column The Liftronic® intelligent Manipulator mounted on a telescopic column, which is heavy-duty, smooth-running, backlash-free, and low-maintenance even with off-centered loads.

              Main features
              • Auto-weight sense and auto-balancing
              • Wide visibility and manoeuvrability
              • Unparalleled safety
              • Ergonomic design
              • Bespoke gripping devices
              • Compact and light
              • Fast, responsive and precise
              • Low carbon footprint

              TECHNICAL DATA
              Max. gross capacity: 120kg
              Max lifting speed: 18 m/min
              Vertical telescopic stroke: up to 1.30m

          • Liftronic® Easy

          • Designed for simple applications and non-complex and rapid work cycles. Only standard gripping tools are applicable underneath the force sensing handle. A quick coupling device allows for quick and easy replacement of gripping tools to suit different load types.

            Different models are available for capacities up to 320 kg and for applications on different supports: “Column mounted with jointed arm”, “Over head-mounted with jointed arm” or  “Jib-mounted with arm”,  “Linear Version”, “Liftruck mounted”, “Overhead rail/bridge crane mounted”

            The Column+arm model can be fixed on a transportable base, so that it can be moved, if necessary, to a different workstation by means of a manual or an electric pallet truck

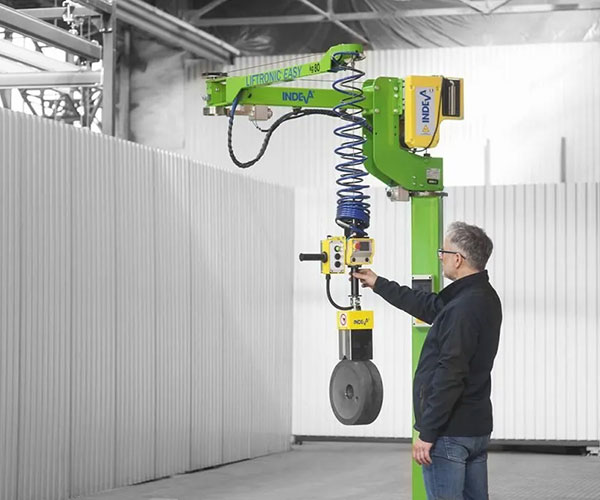

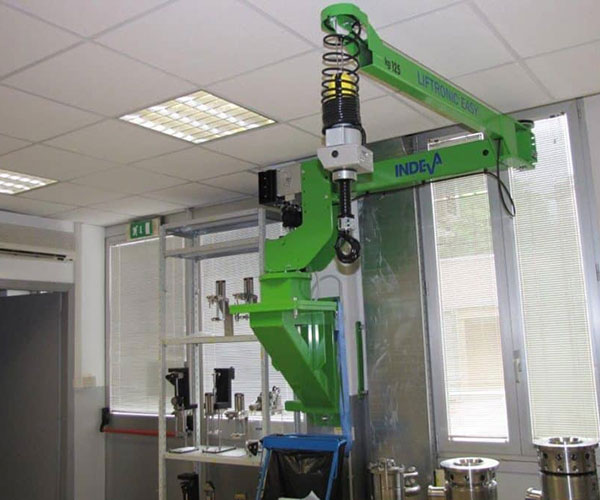

              • Liftronic® Easy Column Mounted with Articulated Arm

              • Liftronic® Easy version Column + Arm  is available in different configurations depending from the max load capacity, arm length and column height required for each application.

                It can be fixed unto the floor or on a moveable base platform.

                MAIN FEATURES
                • Auto-weight sense and auto-balancing
                • Can be integrated with App-Indeva and INDEVA® Gateway
                • Unparalleled safety
                • Ergonomic design
                • Simple gripping devices
                • Compact and light
                • Fast, responsive and precise
                • Low carbon footprint

                TECHNICAL DATA
                Max. gross capacity: from 80 to 320kg (weight of lifting tool included)
                Power supply: 110/230 V-AC – 50/60 Hz
                Power consumption: max 700 VA
                Enclosure protection: 54 IP
                Vertical stroke: up to 2.80m

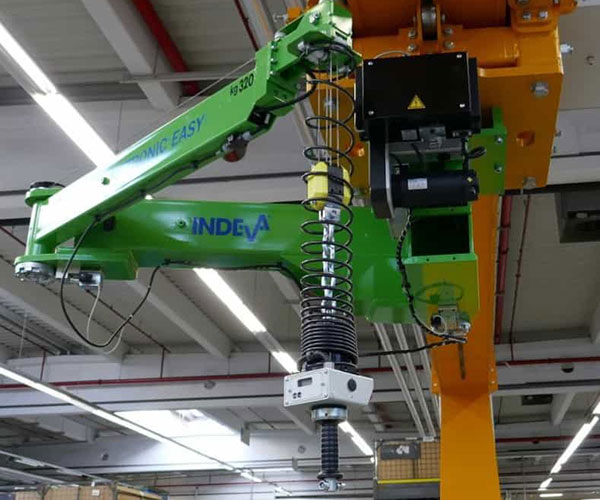

              • Liftronic® Easy overhead rail

              • INDEVA® Liftronic® Easy overhead rail – ceiling mounted with articulated arm is suitable when you can’t use any space on the floor for a column mounted solution or you need to cover a large area.

                MAIN FEATURES
                • Auto-weight sense and auto-balancing
                • Can be integrated with App-Indeva and INDEVA® Gateway
                • Unparalleled safety
                • Ergonomic design
                • Bespoke gripping devices
                • Compact and light
                • Fast, responsive and precise
                • Low carbon footprint

                TECHNICAL DATA
                Max. gross capacity: from 80 to 320kg (weight of lifting tool included)
                Power supply: 110/230 V-AC – 50/60 Hz
                Power consumption: max 700 VA
                Vertical stroke: up to 2.80m

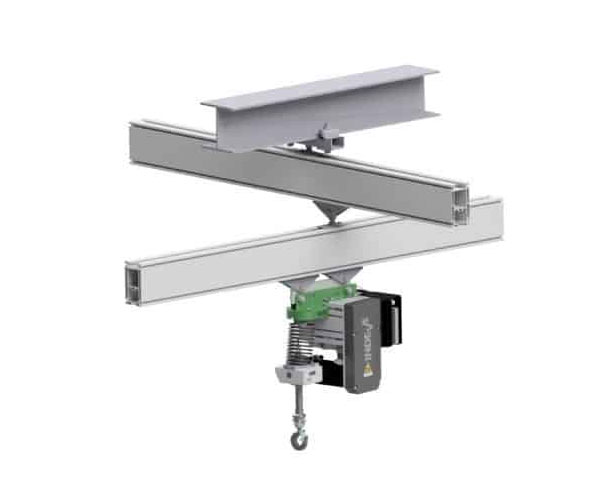

              • Liftronic® Easy Overhead Rail Mounted Manipulator

              • DA rail mounted model Liftronic® Easy slides along overhead bridge mounted rails. It is suitable for covering a large work area.

                Main features
                • Auto-weight sense and auto-balancing
                • Can be integrated with App-Indeva and INDEVA® Gateway
                • Unparalleled safety
                • Ergonomic design
                • Simple gripping devices
                • Compact and light
                • Fast, responsive and precise
                • Low carbon footprint

                TECHNICAL DATA
                Max. gross capacity: from 80 to 320kg (weight of lifting tool included)
                Power supply: 110/230 V-AC – 50/60 Hz
                Power consumption: max 700 VA
                Vertical stroke: up to 2.80m

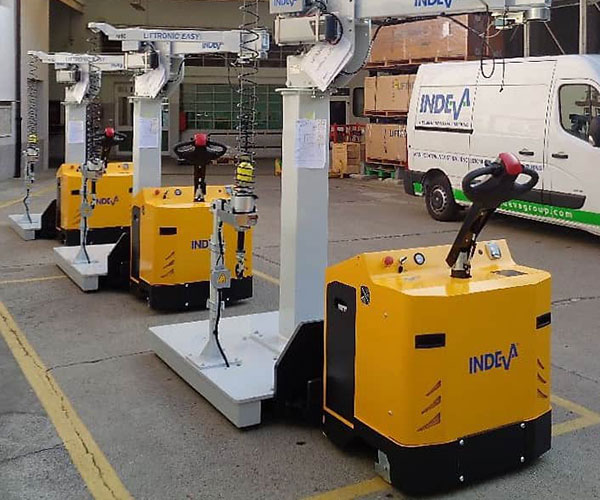

              • Liftronic® Easy – Liftruck version

              • Liftronic® Easy, with Column and articulated arm can be fixed unto a base platform and this can be fixed unto the forks of a  Liftruck.

                Main features

                • Max capacity: 50 kg
                • Max vertical stroke: max 2800 mm
                • Max lifting speed: 0,6 m/sec
                • Control: electronic – 24 Volt D.C.
                • Power consumption: 700 VA
                • Jointed Arm : Orbit-Arm® – possibility of custom arm lengths. .
                • Control panel: it comprises a direction indicator, a battery charge indicator, a steering wheel, control handle for back/forward moves, emergency stop.
                • Safety devices: a failsafe mechanic lock is triggered in the case of a power shortage and a brake limits the lowering speed of the motor.
              • Liftronic® Easy – Linear Manipulator version

              • Linear Manipulator version is the best solution for reaching offset loads in a work area with low ceiling.

                Main features

                • Auto-weight sense and automatic load weight balancing
                • High precision in load placing
                • The load doesn’t suffer any impact when positioned
                • Touch sensitive handle giving fingertip controlled movement: you can move the load at the exact speed you want, very quick or very slow
                • Total safety in the event of sudden loss of load: the controls immediately balance the system, so removing the risk of sudden upward movement of the tooling
                • User-friendly
                • Easy to maintain
                • Remote servicing available
            • Liftronic® Air

            • Liftronic® Air belong to the INDEVA® Liftronic® Series of intelligent industrial manipulators; It combines the intelligent control system of the Liftronic® Series with the rigid parallelogram arm structure alike the pneumatic manipulators of the PN Series. They represent the state of the art technology for handling offset loads.

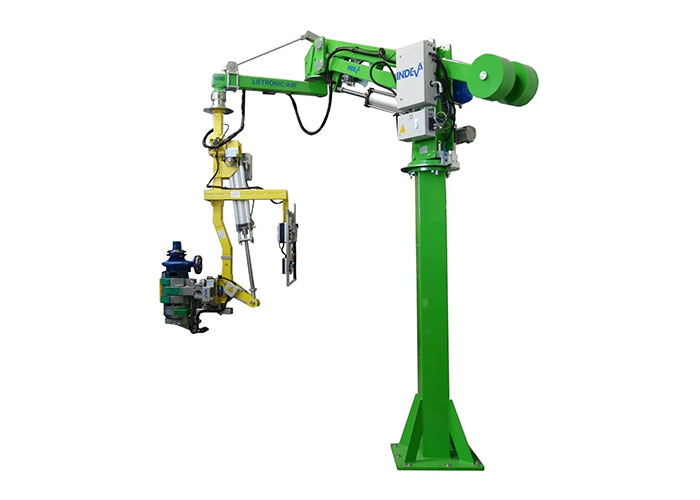

                • Column mounted manipulator INDEVA® Liftronic® Air

                • Main features

                  • Air pressure 0,65 MPa (6,5 bar)
                  • Power supply 115/230V A/C 50/60Hz
                  • Power consumption 100VA
                  • Enclosure protection IP54
                  • Noise level < 70 dB(A)
                  • Lifting capacity limiter
                  • Lift speed from 15 to 30 m/min
                  • Main column axis brake
                  • Intermediate joint axis brake
                  • Column rotation 360°
                  • Tool axis rotation 550°
                  • Slow descent in case of pressure failure
                  • Balancing type: load preset or self balancing (it depends from the tooling)
                • Overhead rail – ceiling mounted INDEVA® Liftronic® Air with pneumatic drive and electronic control

                • Main features

                  • Air pressure 0,65 MPa (6,5 bar)
                  • Power supply 115/230V A/C 50/60Hz
                  • Power consumption 100VA
                  • Enclosure protection IP54
                  • Noise level < 70 dB(A)
                  • Lifting capacity limiter
                  • Lift speed from 15 to 30 m/min
                  • Main column axis brake
                  • Intermediate joint axis brake
                  • Column rotation 360°
                  • Tool axis rotation 550°
                  • Slow descent in case of pressure failure
                  • Balancing type: load preset or self balancing (it depends from the tooling)
              • Liftronic® Pro end effectors

              • Most of the end effectors or end of the arm toolings, designed for a Liftonic® Pro include industrialized parts and modules which are being used on all our end effectors, thus granting maximum reliability. Most of the end effectors for a Liftronic® Pro is custom designed to suit specific requirements, but some applications are very common and allow the use of typical solutions for the end of arm toolings (EOAT).

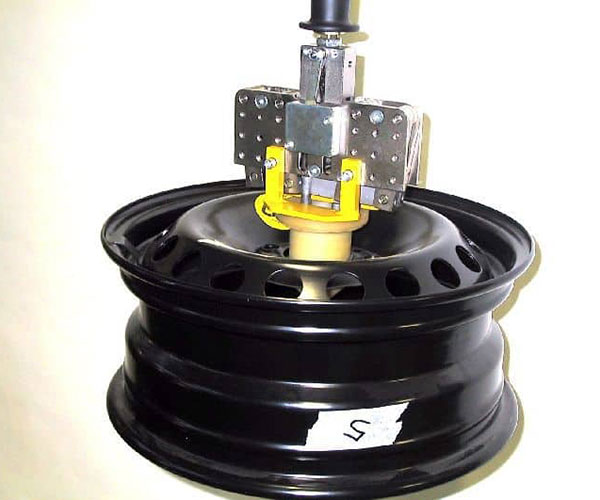

                  • INDEVA® Orbital Tool Head

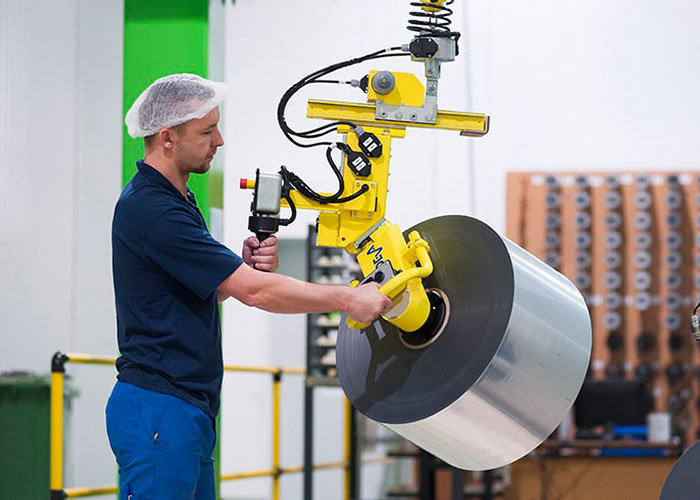

                  • A Liftronic® Pro INDEVA® can be equipped with a standard or custom orbital tool head for easily tilting reels or cylinders. Suitable for handling reels, cylinders etc… INDEVA® Orbital Tool Head can feature automatic load balancing and automatic barycentre adjust device.

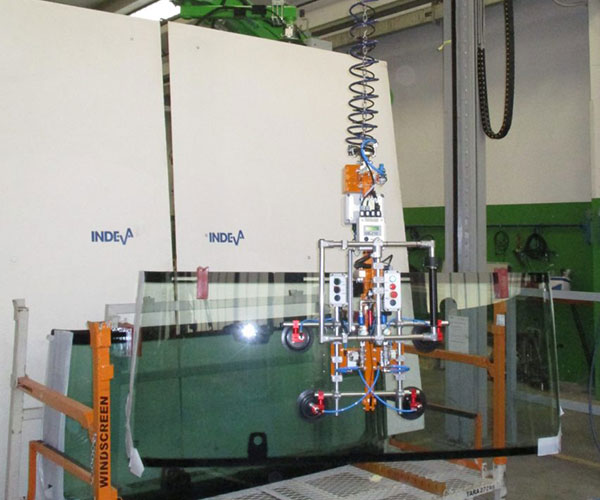

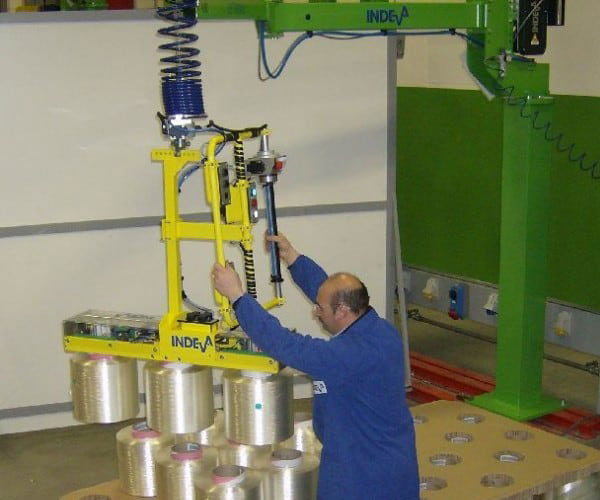

                  • INDEVA® Vacuum Grippers

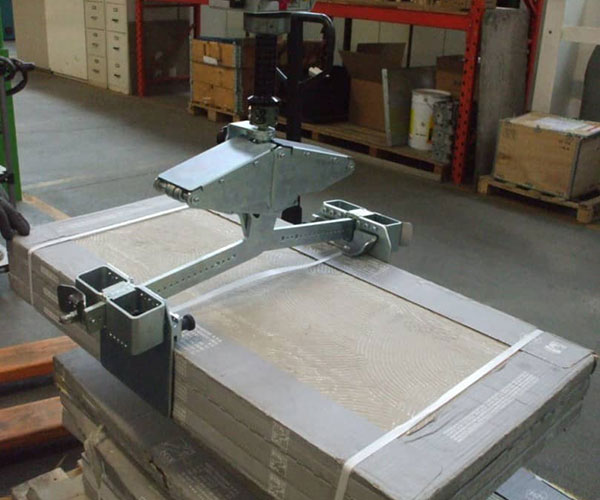

                  • All INDEVA® manipulators equipped with a vacuum gripper (standard or custom) offer the highest safety standard compared to any other lift equipment with a vacuum gripping system. 3 standard vacuum grippers are available for the INDEVA® Liftronic® Pro manipulators:

                    • VAC-U-GRIP PANELS
                    • VAC-U-GRIP-BAGS
                    • VAC-U-GRIP-BOXES

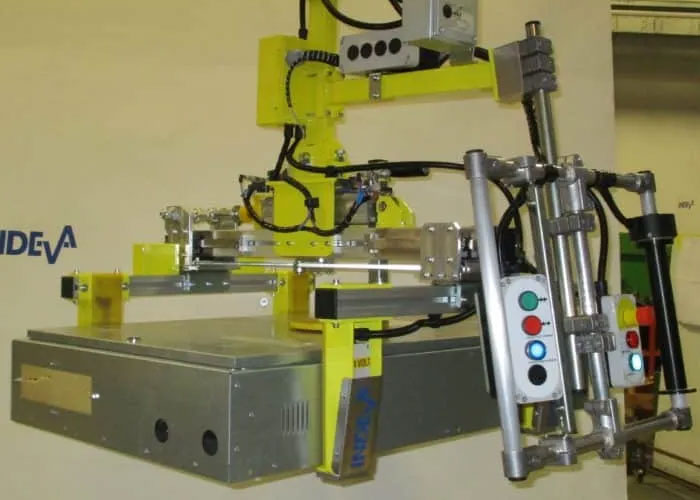

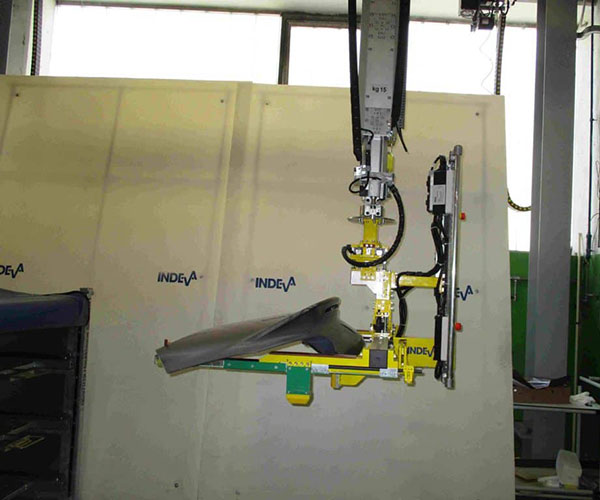

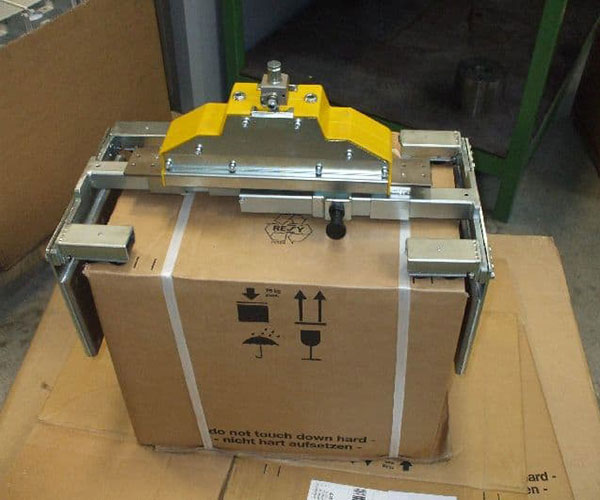

                  • Custom end effectors

                  • Liftronic® Pro is used with custom designed end effectors.

                    Scaglia Indeva has been designing custom end effectors (gripping tools) since 1975 and has gained extensive expertise and know-how that enable us to satisfy a great variety of requirements to suit applications in different industry fields. Scaglia Indeva is also known worldwide for the fine attention paid to ergonomics and safety, and all solutions we supply, from the simple to the most complex one, fully comply with all safety and ergonomics regulations and guidelines.

                • Liftronic® Easy standard end effectors

                • The universal tool head of Liftronic® Easy allows quick applications of different types of end effectors such as hooks, pantograph chucks, jaws, clamps, etc…
                    • Liftronic® Easy Standard gripping tool: Hook

                    • All Liftronic® Easy units are supplied with a standard hook. A standard hook is always supplied even in the case you have purchased one or more standard gripping tools for your Liftronic® Easy other than a hook. This standard hook is designed with a safety device that keeps the hooked load from getting unhooked.
                    • INDEVA® Linear Pantograph for Liftronic® Easy

                    • It can be applied to the standard tool head of the manipulator. A quick coupling system allows quick and easy exchange of standard lifting tools to be applied under the manipulator tool head. The Linear Pantograph can be completed with jaws of different sizes to suit various types of loads such as cardboard boxes or rigid cases of different sizes or other types of loads. The jaws of the Linear Pantograph can be easily and quickly adjusted to suit different sizes.
                    • INDEVA® Compact Pantograph

                    • INDEVA® Compact Pantograph is a standard end effector, a load gripper designed for the Liftronic® Easy manipulators. It can be applied underneath the standard tool head of the manipulator in place of the standard hook. A quick coupling system allows quick and easy exchange of standard lifting tools to be applied under the manipulator tool head. The Compact Pantograph can be slightly customized with jaws or pins to suit different types of loads.
                    • INDEVA® Scissor Pantograph

                    • It can be applied to the standard tool head of the Liftronic® Easy industrial manipulator and by means of a quick coupling device can be quickly and easily replaced at any time with standard hook or another standard gripping tool. The INDEVA® Scissor Pantograph is complete with a safety carter for the prevention of injury. It can grip laods with a wide range of sizes. Different models are available according to load weight range and load type.
                    • Expanding chuck

                    • A Liftronic® Easy manipulator can be equipped with an end effector made of an INDEVA® compact pantograph chuck combined with an expanding chuck. An INDEVA® compact pantograph chuck complete with an expanding chuck can be used for handling tire rims, reels, tires, engine blocks etc…
                    • Magnetic Gripper

                    • An INDEVA® Liftronic® Easy manipulator can be equipped with a magnetic gripper end effector for handling iron loads. INDEVA® Magnetic Gripper is a permanent pneumatic magnet for a Liftronic® Easy unit Manual Magnet is a permanent magnet to apply directly to the standard hook of a Liftronic® Easy unit.

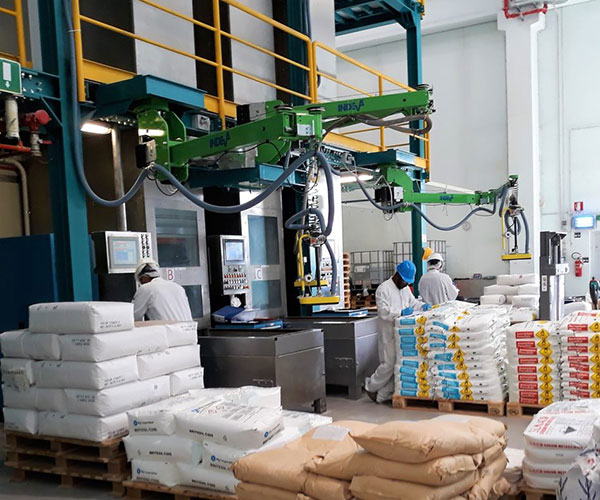

                  • Pneumatic Manipulators: PN Series

                  • Pneumatic manipulators are traditional industrial manipulators, featuring pneumatic drive and control

                    PN series manipulators are traditional industrial manipulators featuring pneumatic control and drive.

                    PN series balancers can be designed according to the ATEX regulations as per the EU Directives 94/9 regarding applications in controlled environments with danger of explosion, classified classes 1 and 2 (Gas).

                      • PN ERGO (PN)

                      • Manipulator with pneumatic control and drive

                        PN ERGO are pneumatic industrial manipulators with rigid vertical arm, suitable for handling large size loads, especially when loads are not reachable from the top (offset handling).

                        Technical features

                        • Lift speed from 15 to 30 m/min
                        • Control: pneumatic
                        • Air pressure: min 6,5 Bar
                        • Temperatures of exercise: da +5° a +50° C
                        • Noise level:
                        • Main column axis brake
                        • Intermediate joint axis brake
                        • Continuous column rotation
                        • Safety devices: in case of pressure failure slow descent till the floor

                        Available options

                        • Conformity to the ATEX
                        • Regulations for applications in controlled environment with danger of explosion,
                        • Rotating joint on the articulate axis
                        • System lock for the lift capacity
                        • Brake for up/down movement
                        • Special painting
                        • Steel platform
                        • Sliding trolley
                        • Limit switch for the main and intermediate Joint axis
                      • PN COMPATTO

                      • Pneumatic industrial manipulators

                        PN COMPATTO are pneumatic industrial manipulators with rigid vertical arm, suitable for applications in small size, low ceiling work areas.

                        Technical Features

                        • Lift speed from 15 to 30 m/min
                        • Control: pneumatic
                        • Air pressure: min 6 bars
                        • Work Temperatures: from +5° to +50° C
                        • Noise level:
                        • Main column axis brake
                        • Intermediate joint axis brake
                        • Continuous column rotation
                        • Safety devices: in case of pressure failure a safety devices retains the grip on the load, and the tooling descends slowly till the floor. Special brakes keep the arm and gripping tool still when not used

                        Available options

                        • Rotating joint on the articulate axis
                        • System lock for the lift capacity
                        • Brake for up/down movement
                        • Double braking force on the main and intermediate axis
                        • Special painting
                        • Sliding trolley
                      • PN ZIP

                      • Pneumatic Industrial Manipulators PN ZIP Series

                        Pneumatic industrial manipulators, light and compact, suitable for applications with a short vertical excursion and quick work cycles.

                        Technical features

                        • Max load capacity: kg 80
                        • Control: pneumatic
                        • Air pressure: 6,0 Bar
                        • Work Temperatures: from +5° to +50° C
                        • Noise level:
                        • Safety devices: in case of pressure failure slow descent till the floor

                        Available options
                        • Conformity to the ATEX
                        • Regulations for applications in controlled environment with danger of explosion,
                        • Special painting
                      • PN FLEX (PNF)

                      • Pneumatic Manipulator PN Flex

                        Pneumatic manipulator with a flexible rope in place of the vertical rigid arm. The PN Flex pneumatic manipulators are suitable for handling loads having their barycenter on the Z axis of the vertical arm. They allow flexible load picking/releasing movements.

                        Technical Features

                        • Max load capacity: kg 80
                        • Max lift speed: 45 m/mn
                        • Control: pneumatic
                        • Air pressure: 6,0
                        • Bar Work Temperatures: from +5° to +50° C
                        • Noise level:
                        • Main joint axis friction
                        • Intermediate joint axis friction
                        • Safety devices: in case of pressure failure slow descent till the floor
                        Available Options
                        • Conformity to the ATEX
                        • Regulations for applications in controlled environment with danger of explosion,
                        • Special painting Steel platform

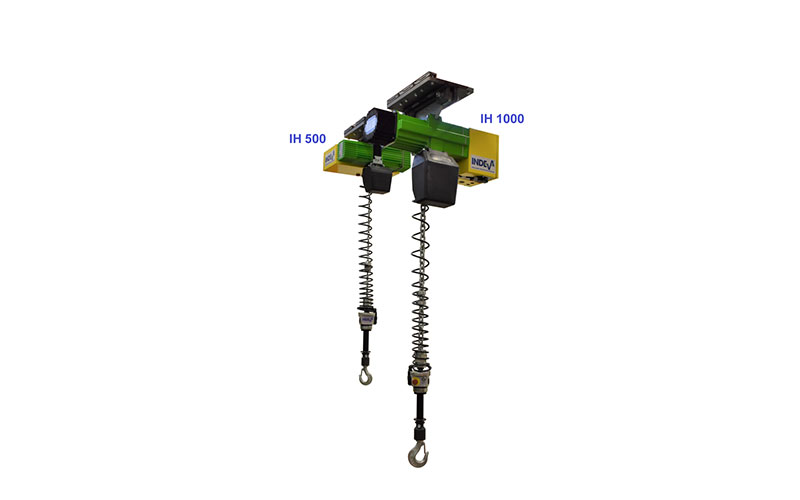

                    • INDEVA® Hoist

                    • INDEVA® HOIST redefines the Standard of Excellence of traditional hoists

                      Scaglia Indeva is proud to present the INDEVA® Hoist, designed to improve ease of use and safety for the operator, as well as overall productivity compared to traditional hoists.

                      Compared to traditional hoists, it definitely provides greater ergonomics for the operator, who does not have to press and keep pressing any buttons for up/down movements or for choosing a different lifting speed.

                        • IH 500

                          • Load Capacity: 500kg
                          • Power Supply: 380/400/415 VAC at 50Hz (3PH + PE + N)
                          • Power Consumption: 1kW
                          • Maximum Current: 2.8 A
                          • Control Voltage: 24V
                          • Minimum Speed (Vmin): 2 m/min
                          • Maximum Speed (Vmax): 8 m/min
                          • Stroke: 2800 mm
                          • Duty Rating: 50% ED
                          • Classification: FEM 9.511 - 2m - ISO 4301-1 M5
                          • Motor Insulation Class: F (max 95°C)
                          • Enclosure Protection: IP54
                          • Standard Operating Temperature: 0°C – 40°C
                          • Operating Humidity: < 90% (avoid dew points)
                          • Noise Level: <70dB
                          • Weight: 47kg
                        • IH 1000

                          • Load Capacity: 1000kg
                          • Power Supply: 380/400/415 VAC at 50Hz (3PH + PE + N)
                          • Power Consumption: 2kW
                          • Maximum Current: 5.7 A
                          • Control Voltage: 24V
                          • Minimum Speed (Vmin): 2 m/min
                          • Maximum Speed (Vmax): 8 m/min
                          • Stroke: 2800 mm
                          • Duty Rating: 50% ED
                          • Classification: FEM 9.511 - 2m - ISO 4301-1 M5
                          • Motor Insulation Class: F (max 95°C)
                          • Enclosure Protection: IP54
                          • Standard Operating Temperature: 0°C – 40°C
                          • Operating Humidity: < 90% (avoid dew points)
                          • Noise Level: <70dB
                          • Weight: 83kg
                      • Automatic Guided Vehicles – INDEVA® AGV

                      • INDEVA® Automatic Guided vehicles (AGVs)  have been designed expressly for companies that apply the lean manufacturing principles. Thanks to their modularity, flexibility and easy-to-use features they represent an effective and low cost solution for assembly lines and logistics. The use of automatic guided vehicles proved to increase efficiency and reduce costs related to the task of carrying  material from warehouse to the assembly line.

                        Emphasis on ‘easy-to-use’ and ‘make-it-yourself’ principles is the main focus of our INDEVA® AGVs overall design. In fact we do strongly believe that in a fast changing world the user has an important advantage in being independent in the programming, maintenance and possible modifications of their vehicles.

                        The INDEVA®  Automatic Guided vehicles (AGVs) are designed by INDEVA® R&D personnel with the cooperation of research institution and universities for the most critical and advanced control techniques. Indeva is committed to continuously update its AGV’s software and features to ensure alignment to the technology edge. Scaglia Indeva® is the only European company that designs and manufacture in Europe modular Automatic Guided vehicles (AGVs) for Lean manufacturing.

                          • INDEVA® AGV – Standard Models

                          • Main features:

                            The AGVs follow a magnetic tape which is quickly and easily laid along the required route.

                            Each standard AGV can be configured for different functions and can be upgraded from a range of optional accessories.

                            An AGV INDEVA® is programmed for automatic start by means of either a preset timing or reception of a signal from customer’s line.

                            Comes complete with standard interfaces. Customer can use these to perform special functions or to control external devices.

                              • INDEVA® Tugger AGV

                              • DescriptionINDEVA® TUGGER AGV is typically a standard product used to tow a train of trolleys. We can supply trolleys designed according to the materials to be moved.
                              • INDEVA® TUNNEL AGV

                              • INDEVA® TUNNEL AGV is used to move trolleys through the workshop and warehouse. This AGV positions itself beneath a trolley or cart that, using a fully automated pinhook system, is then guided to the destination. At the destination, the AGV moves forward, automatically releasing the full trolley and hooking the empty trolley for
                                return to the warehouse. Towing capacity up to 750 kg. This AGV model is largely used to transport accessory kits from warehouse to the assembly line of automotive industries.
                            • INDEVA® AGV – Custom built Solutions

                            • A custom built INDEVA® AGV is designed specifically to meet special site and operational requirements regarding structure, layout, size and program. A custom built INDEVA® AGV is designed to your exact specifications using either modular pipes and joints from our INDEVA Lean System range of components or a steel base structure.
                                • Welded structures-AGV

                                • The INDEVA®  AGV shown above is complete with power driven rollers for uploading large containers from the conveyor line that carries material between the warehouse and assembly line. It can carry loads up to 1500 kg.
                                • Modular structure – AGV

                                • An INDEVA®  custom built gravity AGV is used to transport boxes and small containers in both directions between the warehouse and assembly line. Could be possible the loading/unloading of  the boxes from/to the AGV is carried out with a completely automatic and simple mechanism using gravity to slide boxes from the AGV to the rack and vice-versa.
                                • Welded and modular structures – AGV

                                • The above shown custom built INDEVA®  AGV is equipped with  custom made power driven conveyors, matched by similar conveyors at the load and offload positions. On arrival at correct location, the AGV establishes contact with the conveyor using Wi-Fi.  This sets both powered conveyors rotating  at the same speed, so providing a smooth, controlled transfer of product. Potential applications are the transfer of heavy loads and fragile materials.
                              • INDEVA® AGV – Trolleys, Accessories and Options

                              • Supervisor and Controller

                                It is the brain interacting with all the vehicles in the entire system: it receives from the AGVs information on their position and work parameters and controls crossings and overall traffic flow.

                                • controls AGV and all the other line components we supply such as roller conveyors, trolleys, WI-FI start-stop, etc…
                                • controls crossings
                                • controls position on the route
                                • assigns the task to be completed by the AGV
                                • controls battery level and other parameters
                                • informs about failure and position of the AGV in case of unplanned stop.

                                  • Intralogistics Systems

                                  • A wide range of Intralogistics Sytems to suit transport of a great variety of goods In order to satisfy the great variety of requests from our customers with large size production sites, e.g. in the automotive, aerospace, fashion, mechanics, etc.. industry fields, we can provide a wide range of intralogistics systems for carrying all types of trolleys in an efficient and safe way. These Intralogistics sytems can be pulled by an INDEVA® TUGGER AGV or by any other AGV in your shopfloor.
                                      • "E" carts

                                      • The “E” carts are perfect to move different types of loads without special adjustments. It can transport two trolleys at the same time or a single big trolley (about max 1200 x 800 mm).
                                      • "C" carts

                                      • The “C” carts allows quick, ergonomic and safe exchange of containers on production lines. It could be provided with max dimension 1600 x 1200 mm.

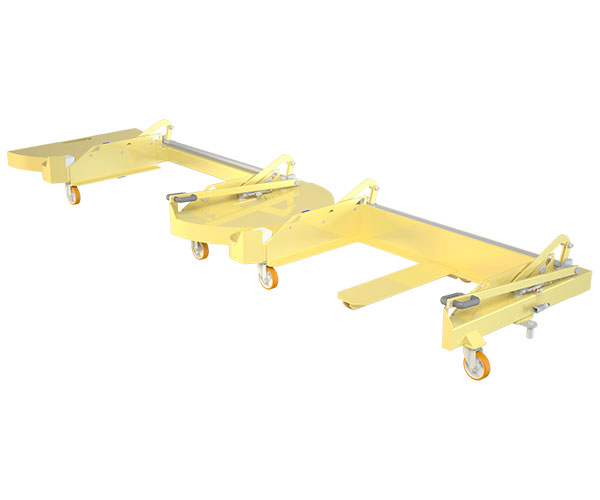

                                      • Composition E+C carts


                                      • Carts may be composed and oriented as a train. With these compositions you can use your carts to service your production line. Other configurations on request (“V” carts, “H” turntables and custom trolleys).
                                    • INDEVA Lean System®

                                    • Since the late 1990s, Scaglia Indeva s.p.a. has been providing innovative modular solutions for the line edge, in line with the Lean Manufacturing philosophy, which aims to improve efficiency and reduce waste in production processes. INDEVA Lean System® is a system comprising modular components made of coated steel and aluminium, designed to create flexible structures that can be adapted to production requirements.

                                      These structures offer numerous advantages, including flexibility, durability, operational efficiency and ergonomics. Modularity allows the design of customised solutions that can be easily modified, while high-quality materials guarantee a long service life. In addition, the system promotes an optimised line-side layout, improving material flow and reducing downtime, while taking into account the operators’ needs for a safe and comfortable working environment.

                                        • Supermarkets

                                        • A supermarket in an industrial production site is the location where a preset standard inventory is kept to supply downstream processes.

                                          Supermarket trolleys or SAG trolleys, short for Supermarket and Assembly Goods, are an innovative and versatile solution for the efficient management of materials within a production plant. Designed to optimise material flow, these carts have become indispensable in many industries due to their ability to improve internal logistics and support the principles of Lean Manufacturing.

                                        • Work stations

                                        • Flow racks, also known as first-in-first-out (“FIFO”) racks or gravity racks or gravity-fed rack (“GFR”).

                                          Our modular workstations allow the operator to reach all components, necessary for carrying out his work, easily and ergonomically, without having to bend, move or turn around.

                                          Any need can be met by the INDEVA Lean System® workstation as it is designed to be fully adjustable and thus adapt to the needs of the operator, e.g. it can be adjusted in height at any time, even to meet temporary situations. Modular INDEVA® workstations are also designed so that another operator can replenish them at the back or at the side, thus completely or almost completely eliminating waiting times. Production is thus kept at optimum levels and staff are more productive and responsible.

                                        • Gravity fed flow racks

                                        • Waiting time, repetitive strain and uncomfortable positions will be only a sad memory for the operator that use INDEVA Lean System® modular work stations!

                                          The wide range of gravity roller conveyors combined with INDEVA® fasteners are innovative solutions designed to improve stock management through the First-In-First-Out (FIFO) principle, ensuring a continuous and orderly flow of materials. Our gravity roller conveyors, combined with modular fasteners, offer unparalleled versatility and efficiency, ideal for any production or warehouse environment.

                                        • Shooter trolleys

                                        • INDEVA Lean System® modular tugger carts can be used in a train set or individually for being towed by an AGV.

                                          Our modular shooter trolleys provide an innovative and versatile solution for handling heavy loads in industrial and warehouse environments. These trucks are designed to simplify load transfer, reducing physical effort and improving safety and operational efficiency.

                                        • Kitting trolleys

                                        • Thanks to 3D simulation we can provide a wide range of tailor-made storage solutions and exhibitors.

                                          Thanks to an accurate 3D simulation of our modular kitting trolleys, we can offer a wide range of displays and customised storage solutions, helping you to better organise and maintain your equipment and components, even the most valuable and delicate ones.

                                          Using modular kitting trolleys with customised kit boxes reduces production cycle times, improves project preparation, shortens production times and contributes to lower production costs.

                                        • Train set – Tugger carts

                                        • Shooter trolleys made with INDEVA Lean System® allow handling heavy loads and move them from one trolley to another one or from one fixed structure to a cart, through an efficient gravity fed sliding system.

                                          INDEVA® modular tow trucks are an innovative and highly efficient solution for internal logistics in production units. Designed to be easily connected to Automated Guided Vehicles (AGVs), these trucks enable the automated transport of components and products without the need for a driver, optimising production processes and improving overall productivity.

                                          This type of combined solution contributes to significant savings in terms of time and costs, significantly increasing operator productivity and eliminating waste; not for nothing have they been among the most requested solutions by major automotive brands such as PSA.

                                        • Welded Structures

                                        • INDEVA Design & Manufacture welded structures according to customers specifications.

                                          These cutting-edge frameworks are engineered to transform your production environment, offering unparalleled stability, durability, and efficiency, far surpassing traditional modular systems.

                                        • Work in process carts

                                        • INDEVA Lean System® is ideal for the design and assembly of in-house material handling carts.

                                          Modular work in process carts made with the INDEVA Lean System® are the perfect solution for the safe and efficient transport of delicate and valuable parts along production lines. Designed to offer maximum flexibility and adaptability, these trolleys are ideal for dynamic and ever-changing production environments.

                                        • Dunnage bags for kitting

                                        • INDEVAs Dunnage bags combines the strength & versatility for handling sensitive parts.

                                          The INDEVA Lean System® kitting bag trucks are designed for the safe transport of components and light assemblies in production lines, ideal for automotive assembly and white goods production. The bags’ unique design offers strength and versatility when handling sensitive parts.

                                      • INDEVA Lean System® Component Range

                                      • The INDEVA Lean System® tube and joint system comprises a wide range of components, including abrasion-resistant plasticised steel tubes, aluminium tubes and other aluminium components, steel joints, roller tracks and accessories. This variety makes it possible to design and build a wide variety of modular structures to meet any requirement within the production process. Applications range from ergonomic workstations to trolleys, gravity-fed roller conveyors, line-side racking, shelving and modular storage systems. The availability of aluminium components adds further advantages, such as light weight and corrosion resistance, making the system even more versatile and suitable for different operating conditions.
                                          • Kit boxes

                                          • The Perfect Solution for Organisation and Storage

                                            Kit containers are an innovative and versatile solution for organising and storing objects of various sizes and types. Ideal for domestic, professional or industrial use, these modular containers offer practicality and flexibility, allowing you to optimise space and keep everything in perfect order.

                                            The production manager of a large company said: ‘We have created a department to group finished products in kits. The type of kits used vary from simple to special and complex solutions to meet all company requirements. Our application of the LEAN MANUFACTURING culture has allowed us to design efficient kitting to simplify procurement, minimise inventory, reduce parts handling and eliminate missing parts. Using bespoke kit boxes reduces production cycle times, improves project preparation, shortens production times, all of which contributes to lower production costs.’

                                            We offer complete customised solutions, from prototype development to subsequent 3D simulation and series production. Discover the unique advantages of kit containers and how they can improve your everyday work.

                                              • INDEVA Lean System SUPPLY OPTIONS

                                              • In order to meet specific demands, Scaglia Indeva offer following supply options for INDEVA Lean System® components and solutions

                                                • ASSEMBLED STRUCTURES
                                                • KITTED STRUCTURES
                                                • BULK COMPONENTS
                                                • 3D SIMULATION & PROTOTYPING
                                                • LEAN TECHNICIAN
                                                  • Robotic Automation: Indeva SYS Design

                                                  • One of the key strengths of our automation systems is modularity, meaning the ability to expand and adapt the line based on increased production or new operational needs without requiring radical changes.

                                                    The combination of expandability and modularity is essential to ensure that an industrial line can evolve alongside the company, maintaining high levels of efficiency and minimizing the costs of upgrades and integration of new technologies.

                                                      • Palletizers

                                                      • Thanks to the modularity of our CubeOS-based solutions, our palletizers can handle pallets with various box formats, using an advanced pattern generator, and boxes of different shapes and weights. We offer two highly specialized palletizer versions, each designed to meet specific material handling needs: EasyCUBE Pall and HeavyCUBE Pall.

                                                        EasyCUBE Pall is designed to minimize space requirements, utilizing collaborative robotics to optimize space and improve efficiency in compact environments. On the other hand, HeavyCUBE Pall is developed to handle heavy loads of up to 80 kg, while still delivering excellent performance even in very tight spaces.

                                                        Both models offer customizable and scalable solutions, allowing companies to adapt the palletizer to their specific operational needs.

                                                        Integration with our CubeOS platform ensures optimized palletizing processes, enhancing the overall efficiency and productivity of the system. Whether you need an ultra-compact palletizer or a robust one for heavy loads, our solutions are designed to deliver superior performance and seamlessly fit your logistics needs.

                                                      • Packaging

                                                      • Thanks to the modularity of our CubeOS-based packaging solutions, we offer a flexible platform that can be adapted to various production needs. Our products enable the handling of both light and heavy boxes, and easily integrate automated tasks such as box forming, taping, labeling, and weighing. This flexibility allows for simple expansion and upgrading of the production line without requiring structural modifications. The result is optimal management of space and costs, with solutions that maintain efficiency and can be adapted to future needs or new technologies.
                                                      • Intralogistics

                                                      • Internal transport and material handling are key elements for the success of factory logistics. INDEVA SysDesign’s AMRs (Autonomous Mobile Robots) can efficiently optimize these workflows, improving the overall operational efficiency of production.
                                                        Our AMR system is designed to enhance material transport and handling, autonomously navigating complex environments such as production plants, warehouses, and distribution centers, ensuring maximum safety even in the presence of operators.
                                                        Our AMRs offer flexibility and adaptability, managing a wide range of loads, from smaller components to heavy pallets. They easily adapt to changes in factory layout and can be quickly repositioned to optimize workflows. With customization options and a simple, scalable fleet management system via our Fleet Manager, our robots are easy to integrate with existing systems.
                                                      • Mobile Robotics

                                                      • Our Mobot, available in two versions — Easy (with a payload of up to 25 kg, using a collaborative robot) and Heavy (with a payload of up to 80 kg, using an industrial robot) — mounted on an autonomous guided vehicle, offers numerous advantages to the industry. It enhances operational flexibility, as the robot can move freely within the facility and serve multiple machines at different points in the production process, easily adapting to new layouts or requirements. It optimizes internal logistics by autonomously transporting materials and products, reducing wait times and improving workflow without the need for manual intervention.

                                                        EasyCUBE Mobot Mobile Robotic Island
                                                        Mobile robot that can handle different types of tasks by moving around the production environment for better ROI and without layout issues

                                                      • Loading

                                                      • INDEVA SysDesign’s Plug and Play robotic cells are designed to automate machine tools, significantly reducing labor costs and increasing productivity.
                                                        Thanks to the CubeOS software, these ready-to-use cells can easily integrate with major CNC machines and other equipment, facilitating the handling of small and medium series of parts.
                                                        Offering all the benefits of a complete robotic solution in a single machine, these cells are easy to program and ready for use. Their main strength lies in rapid installation, allowing them to be used on any machine tool without the need for complex adjustments.

                                                        HeavyCUBE Load Serving Island HeavyCUBE Load
                                                        Standardized island for the servicing of automatic lines or work centers capable of also including de-palletization and empty management functions

                                                    • DOOSAN Cobots - Collaborative Robots

                                                    • Collaborative robots are designed to have very small footprints and weights to be able to interact and collaborate with humans, as well as having an intuitive and easy-to-use UX interface.

                                                      • They stand out for their greater range of motion in the category and for the high payload capacity.
                                                      • Choice between blue or white color for the M and A series. The H series is only available in blue color.
                                                      • Equipped with an interface that allows programming, control, and monitoring in an intuitive and immediate way, also usable by non-experts.
                                                      • Certified Clean room ISO 14644-1 Class 6, and protection against dust and water splashes IP54.
                                                      • They do not require ordinary maintenance, resulting in zero operating costs.
                                                      • Equipped with standard signaling LEDs in compliance with ISO 60204-1 regulations.
                                                      • Advanced safety level PL e – CAT 4.
