  • Offer Profile
  • Our company's success is mainly founded on our employees' vast competence and years of experience. This fact is confirmed again and again by awards such as "Best of German Engineering". Not only motivated sales staff and experienced engineers and technicians see to it that you are satisfied but also well-trained workers such as welders, fitters, electricians, mechanics, and lacquerer – to name but a few. This is why we would like to introduce the people behind the scenes in our new serial "We are VETTER".
Product Portfolio

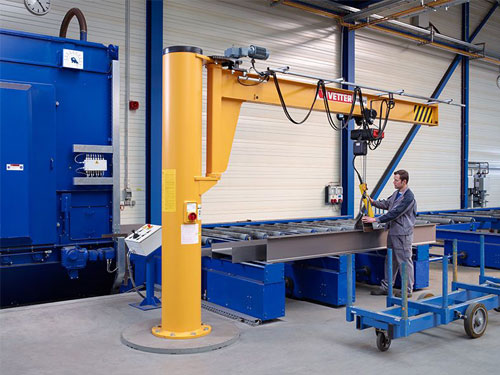

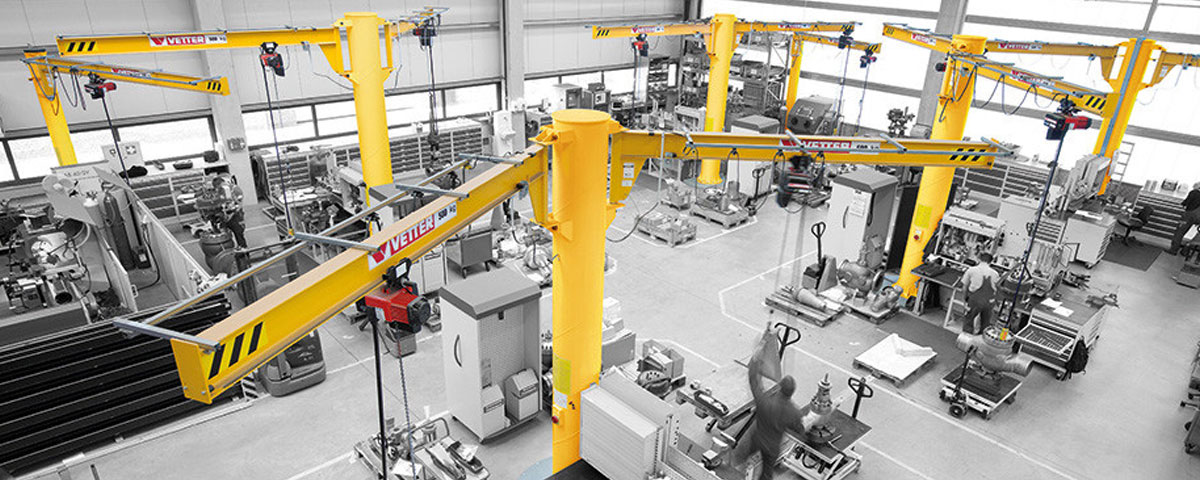

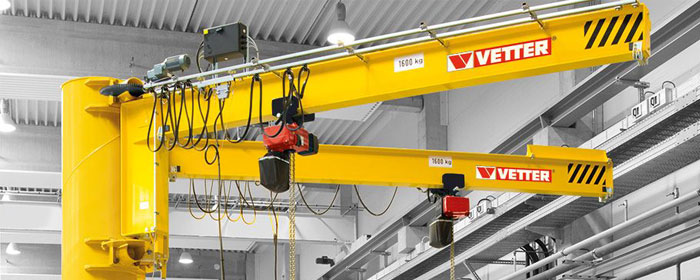

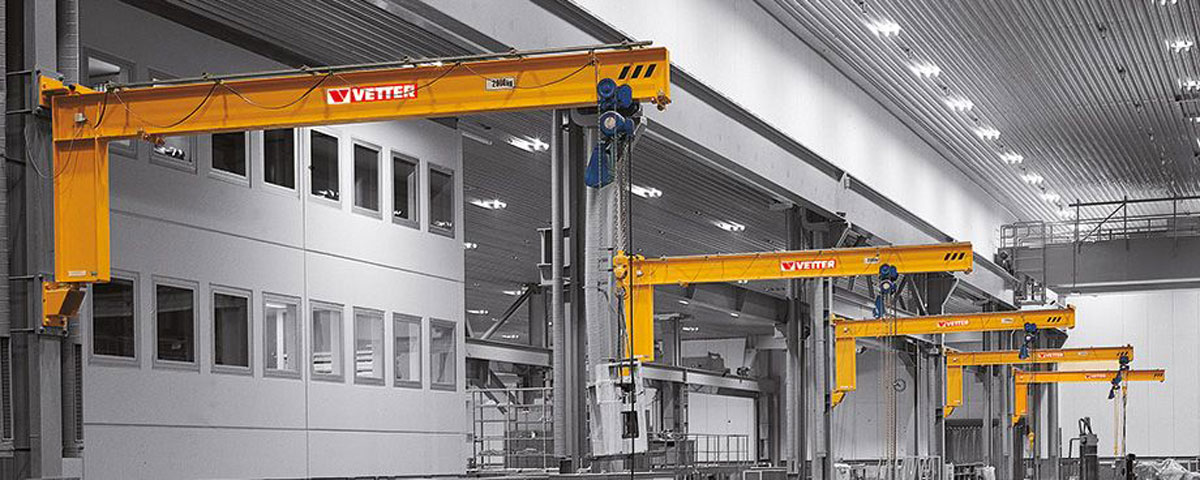

  • Slewing jib cranes

      • Column-mounted slewing jib cranes

          • BOY BS

          • Capacity: 63 to 250 kg
            Outreach: 2,000 to 4,000 mm
            Slewing range max.: 250° (300°/300°)

            Advantages
            • Articulating jib arm reaches every corner of the workspace
            • Easy slewing operation with pivot resistance regulator as standard feature
            • Compact design, perfectly suitable for feeding of machines and machining centres or installation of machines
            • Large effective lifting height
            • Column height and jib arm length can be adjusted to conditions on the spot
            • Broad range of fastening options provides for convenient installation
            • High-quality coating

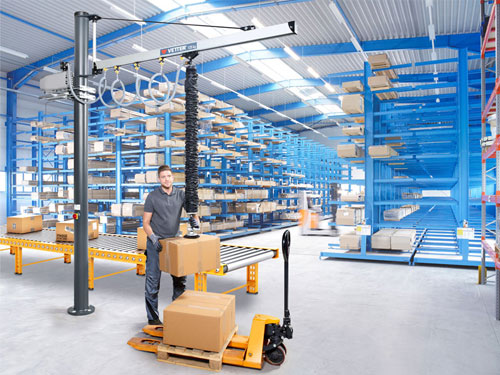

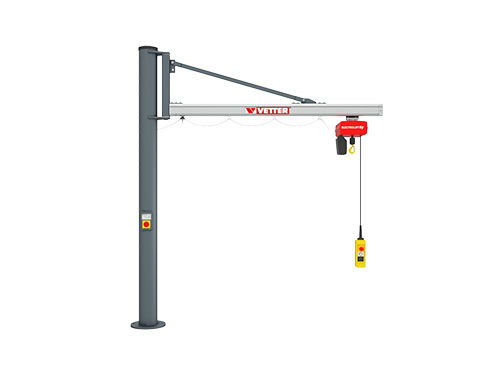

          • UNILIFT US

          • Capacity: 125 to 1,000 kg
            Outreach:2,000 to 6,000 mm
            Slewing range max.: 270°

            Advantages
            • Aluminium profile jib
            • Easy slewing
            • Smooth running trolley
            • Overbraced design, low dead weight of aluminium profile jib arm
            • Trailing cable system travelling inside the aluminium profile
            • Column height and jib arm length can be adjusted to conditions on the spot
            • Broad range of fastening options provides for easy installation
            • High-quality coating


          • PRIMUS PR

          • Capacity: 30 to 1,000 kg
            Outreach: 2,000 to 7,000 mm
            Slewing range max.: 360°

            Advantages
            • Infinite slewing by 360° thanks to power supply by slip-ring assembly
            • Especially easy slewing operation thanks to sophisticated ball bearing with pivot resistance regulator as standard feature
            • Small stop clearance for maximum utilization of effective outreach
            • Compact design, perfectly suited for small rooms and installation on machines
            • Large effective lifting height
            • Column height and jib arm length can be adjusted to conditions on the spot
            • Broad range of fastening options provides for convenient installation
            • High-quality coating

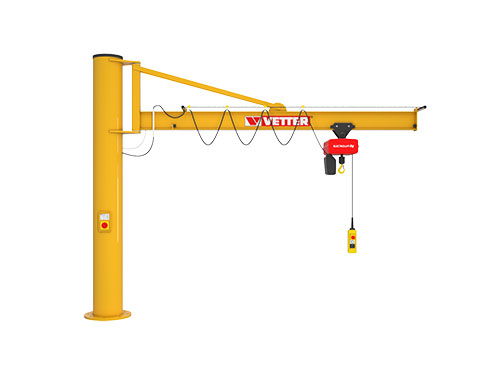

          • PRAKTIKUS PS

          • Capacity: 80 to 2,000 kg
            Outreach: 2,000 to 6,000 mm
            Slewing range max.: 270°

            Advantages
            • Cost-effective crane
            • Easy slewing
            • Overbraced design, low dead weight of jib arm
            • Column height and jib arm length can be adjusted to conditions on the spot
            • Outdoor use possible
            • Broad range of fastening options provides for easy installation
            • High-quality coating

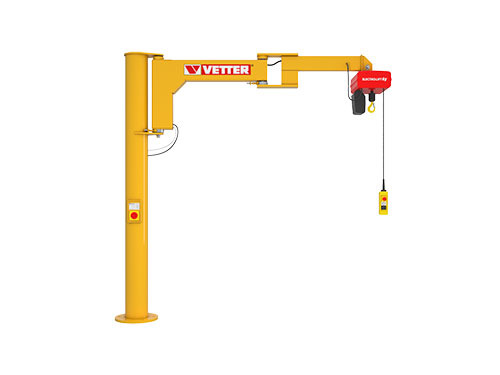

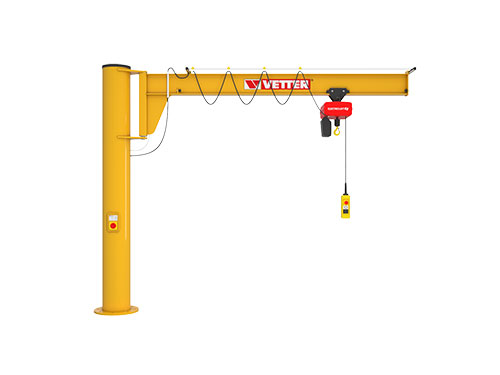

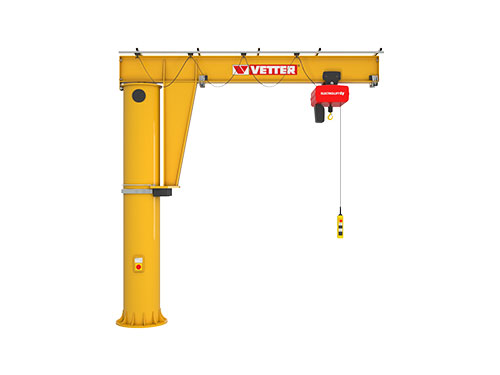

          • ASSISTENT AS

          • Capacity: 80 to 2,000 kg
            Outreach: 2,000 to 10,000 mm
            Slewing range max.: 270°

            Advantages
            • Compact design, perfectly suited for small rooms
            • Large effective lifting height
            • Column height and jib arm length can be adjusted to conditions on the spot
            • Outdoor use possible
            • Comfortable and smooth slewing possible by means of electrical slewing gear
            • Broad range of fastening options provides for convenient installation
            • High-quality coating

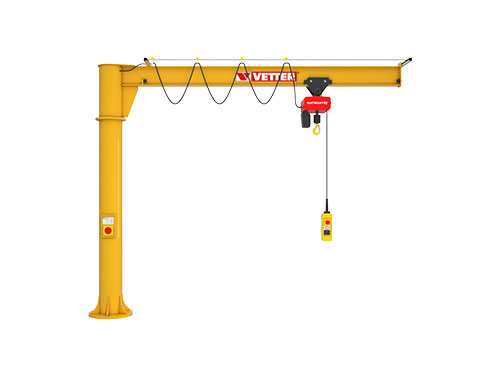

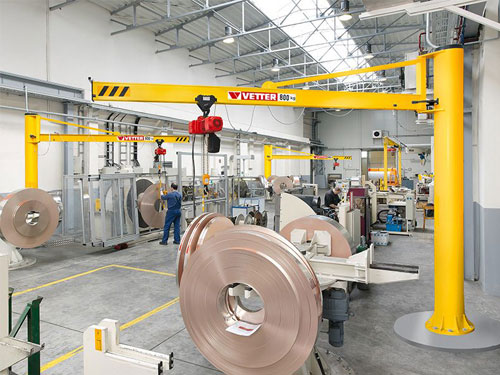

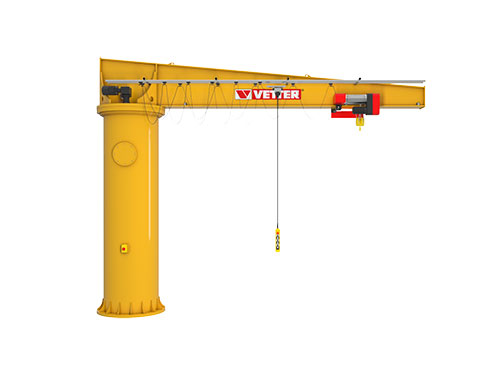

          • MEISTER M

          • Capacity: 125 to 20,000 kg
            Outreach: 2,000 to 12,000 mm
            Slewing range max.: 360°

            Advantages
            • Infinite slewing by 360° thanks to power supply by slip-ring assembly
            • Compact design, perfectly suited for small rooms
            • Large effective lifting height
            • Column height and jib arm length can be adjusted to conditions on the spot
            • Outdoor use possible
            • Comfortable and smooth slewing possible by means of electrical slewing gear
            • Suitable for explosion protection according to ATEX (option)
            • Broad range of fastening options provides for convenient installation
            • High-quality coating

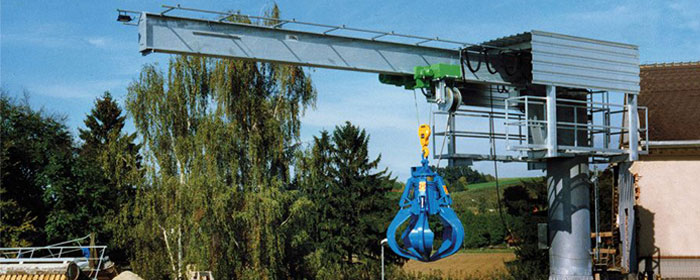

          • BOSS B

          • Capacity: 5,000 to 63,000 kg
            Outreach: 4,000 to 20,000 mm
            Slewing range max.: 360

            Advantages
            • Designed for large capacity and outreach
            • Infinite slewing by 360° thanks to power supply by slip-ring assembly
            • Comfortable, smooth electrical slewing of jib arm by positive ball bearing slewing ring
            • EN 13001 rating by type and place of use
            • Column height and jib arm length can be adjusted to conditions on the spot
            • Outdoor use possible
            • Suitable for explosion protection according to ATEX (option)
            • Broad range of fastening options provides for easy installation
            • High-quality coating
            • Special models with a capacity of up to 100 t and an outreach of 25 m are available

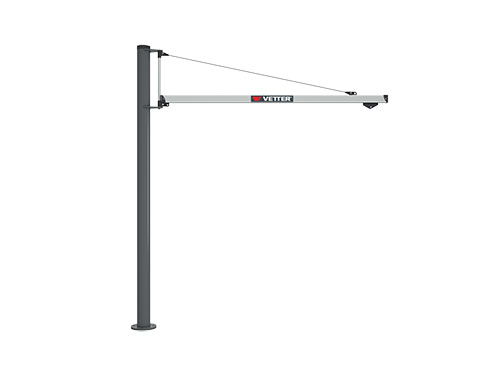

          • UNILIFT LIGHT ULS

          • Capacity: 100 kg
            Outreach: 1.9 – 2.9 m
            Slewing range max.: 270°
            Installation location: Indoor
            Slewing: Manual

            Advantages
            • Aluminium profile jib
            • Ergonomic handling
            • Ultra-easy slewing
            • Smooth running trolley
            • Overbraced design, low dead weight of aluminium profile jib arm
            • Easy anchoring of the foot flange without intermediate plate or Dundament
            • Sunken composite anchors therefore no tripping hazards
            • Column height and jib arm length can be adjusted to conditions on the spot
            • High-quality coating

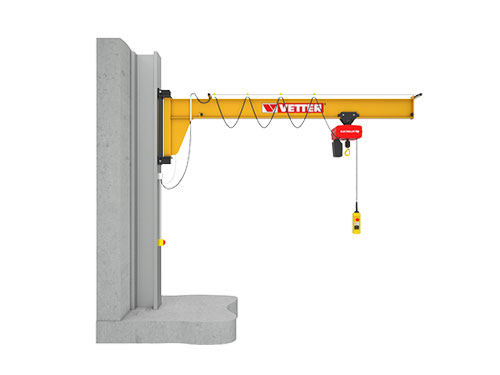

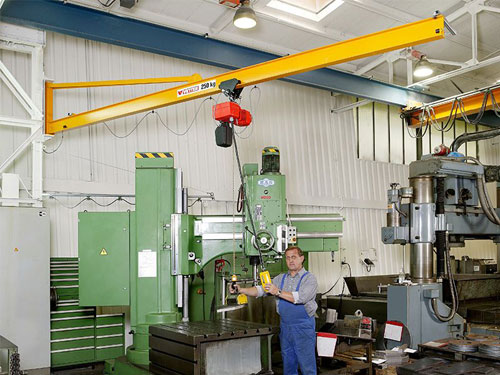

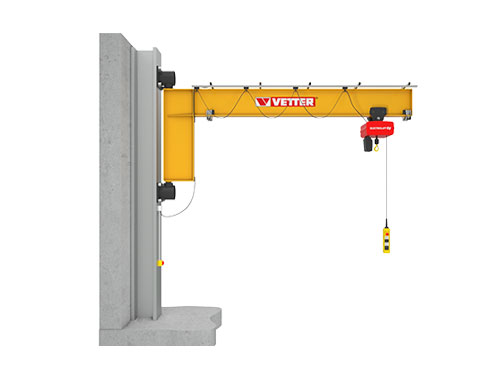

        • Wall-mounted slewing jib cranes / Mobile slewing jib crane

            • BOY BW

            • Capacity: 63 to 250 kg
              Outreach: 2,000 to 4,000 mm
              Slewing range max.: 180° (300°/300°)

              Advantages
              • Articulating jib arm reaches every corner of the workspace
              • Easy slewing operation with pivot resistance regulator as standard feature
              • Compact design, perfectly suitable for feeding of machines and machining centres
              • Large effective lifting height
              • Jib arm length can be adjusted to conditions on the spot
              • Broad range of fastening options provides for convenient installation
              • High-quality coating

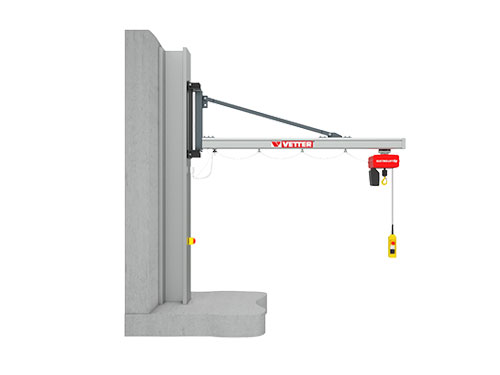

            • UNILIFT UW

            • Capacity: 80 to 2,000 kg
              Outreach:
              2,000 to 6,000 mm
              Slewing range max.: 180°

              Advantages
              • Aluminium profile jib
              • Ergonomic handling
              • Easy slewing
              • Smooth running trolley
              • Overbraced design, low dead weight of aluminium profile jib arm
              • Trainling cable system travelling inside the aluminium profile
              • Jib arm length can be adjusted to conditions on the spot
              • Broad range of fastenings options provides for easy installation
              • High-quality coating

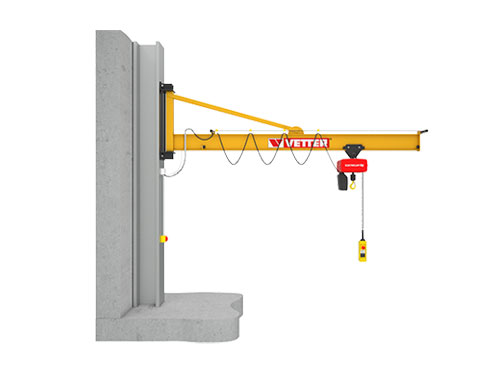

            • PRAKTIKUS PW

            • Capacity: 80 to 2,000 kg
              Outreach: 2,000 to 6,000 mm
              Slewing range max.: 180°

              Advantages
              • Cost-effective crane
              • Easy slewing
              • Overbraced design, low dead weight of jib arm
              • Jib arm length can be adjusted to conditions on the spot
              • Outdoor use possible
              • Broad range of fastening options provides for convenient installation
              • High-quality coating

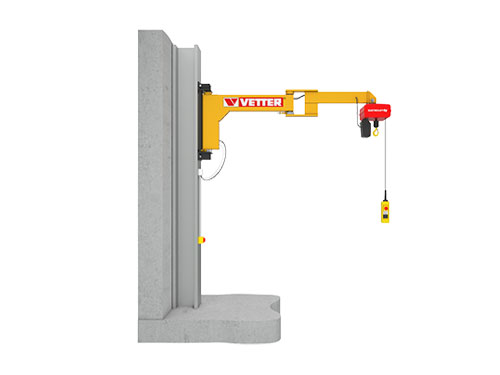

            • ASSISTENT AW

            • Capacity:  80 to 2,000 kg
              Outreach: 2,000 to 10,000 mm
              Slewing range max.: 180°

              Advantages
              • Compact design, perfectly suited for small rooms
              • Large effective lifting height
              • Jib arm length can be adjusted to conditions on the spot
              • Outdoor use possible
              • Comfortable and smooth slewing possible by means of electrical slewing gear
              • Broad range of fastening options provides for convenient installation
              • High-quality coating

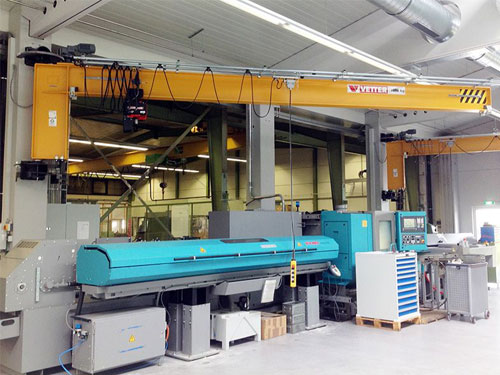

            • GESELLE GN

            • Capacity: 125 to 10,000 kgg
              Outreach: 2,000 to 12,000 mm
              Slewing range max.: 180°

              Advantages
              • Compact design, perfectly suited for small rooms
              • Large effective lifting height
              • Jib arm length can be adjusted to conditions on the spot
              • Outdoor use possible
              • Comfortable and smooth slewing possible by means of electrical slewing gear
              • Suitable for explosion protection according to ATEX (option)
              • Broad range of fastening options provides for convenient installation
              • High-quality coating

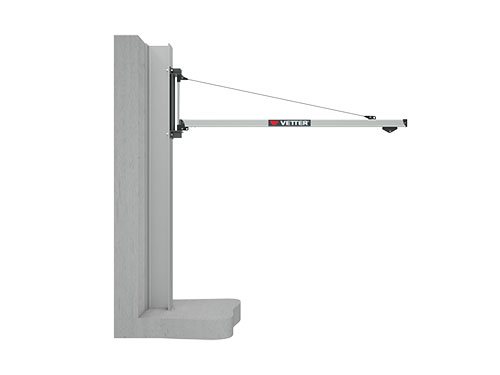

            • UNILIFT LIGHT ULW

            • Capacity max.: 0.1 t
              Outreach max.: 2.9 m
              Slewing range max.: 180°
              Classification EN 13001: hoisting class HC2, stability class S2
              Aluminium profile with inside travelling trolley
              Aluminium profile jib

              Advantages
              • Aluminium profile jib
              • Ergonomic handling
              • Ultra-easy slewing
              • Smooth running trolley
              • Overbraced design, low dead weight of aluminium profile jib arm
              • Broad range of fastenings options provides for easy Installation
              • Jib arm length can be adjusted to conditions on the spot
              • High-quality coating

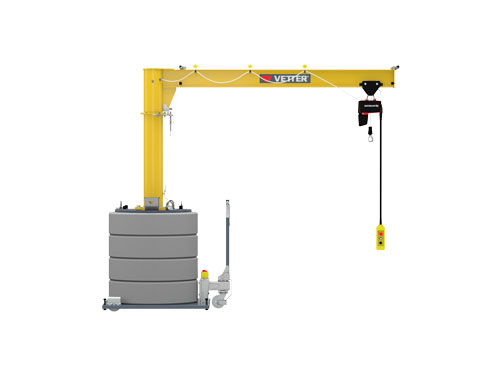

            • MOBILUS MOB

            • Capacity: 125 to 1,000 kg
              Outreach: 2,000 to 6,000 mm
              Slewing range max.: 360°

              Advantages
              • No fastening to hall floor required since foundation integrated in crane base
              • Quick and easy relocation using fork-lift truck, overhead crane, or optional trolley
              • Infinite slewing by 360° thanks to power supply by slip-ring assembly
              • Especially easy slewing thanks to sophisticated ball bearing
              • Small stop clearance for maximum utilization of effective outreach
              • Column height and jib arm length can be adjusted to conditions on the spot
              • High-quality coating
          • PROFI-Gantry cranes

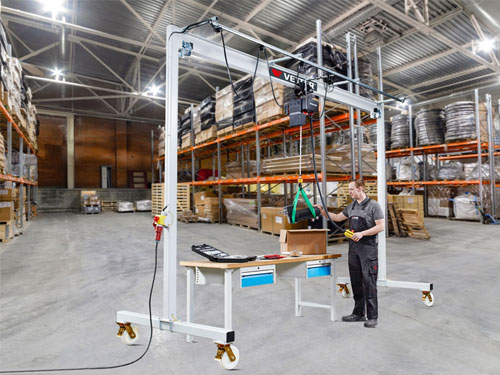

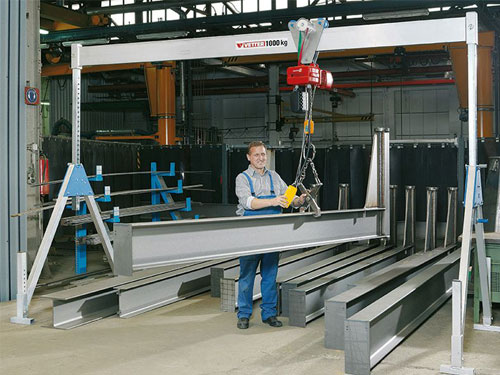

              • Moveable gantry cranes

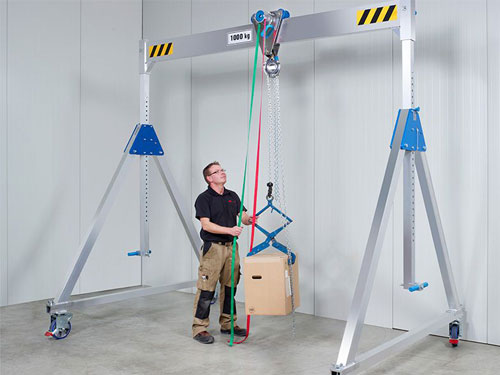

                  • ALU1

                  • Capacity: 500 to 1,500 kg
                    Gantry span: 3,000 to 4,000 mm

                    Advantages
                    • Low dead weight thanks to aluminium structure
                    • Easy snap-on assembly – not requiring any drilling nor tools
                    • Folding side frames simplify handling
                    • Easy travelling on level floor with 4 fixed rollers (with locking system)
                    • Adjustable height
                    • Maximum hoist travel since no stabilizing cross bracing is required
                    • Push trolley with parking break for hoist

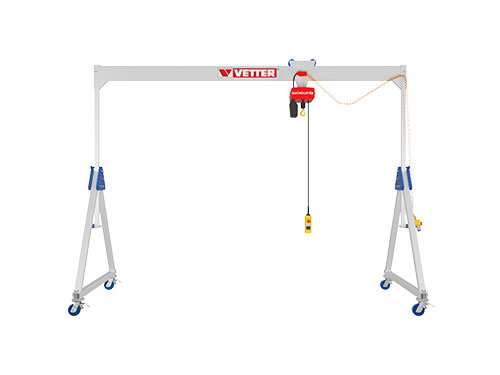

                  • ALU2/3

                  • Capacity: 500 to 1,500 kg
                    Gantry span: 3,000 to 6,000 mm

                    Advantages
                    • Low dead weight thanks to aluminium structure
                    • Easy snap-on assembly – not requiring any drilling nor tools
                    • Folding side frames simplify handling
                    • Easy horizontal alignment on uneven surfaces thanks to height-adjustable feet
                    • Adjustable height
                    • Maximum hoist travel since stabilizing cross bracing is not necessary
                    • Push trolley with parking break for hoist

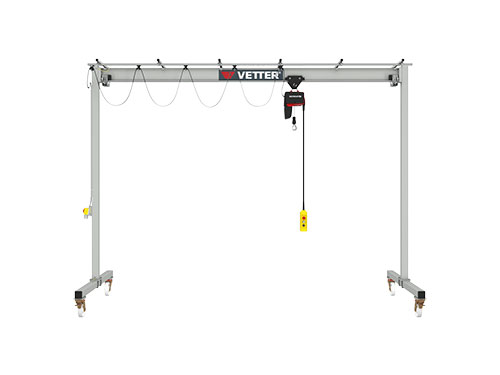

                  • PA

                  • Capacity: 250 to 3,200 kg
                    Gantry span: 2,000 to 6,000 mm
                    Slewing range max.: 250° (300°/300°)

                    Advantages
                    • Quick and easy relocation using its wheels
                    • Point-to-point load transport
                    • Large effective lifting height
                    • Height adjustment by means of rack-and-pinion jack possible
                    • Support height and crane rail length can be adjusted to conditions on the spot
                    • Ease of installation thanks to convenient disassembly
                    • High-quality coating
                • Monorail gantry crane

                    • P100

                    • Capacity: 500 to 4,000 kg
                      Length: 2,000 to 10,000 mm

                      Advantages
                      • Point-to-point load transport
                      • Compact design, perfectly suited for small rooms
                      • Large effective lifting height
                      • Support height and crane rail length can be adjusted to conditions on the spot
                      • Outdoor use possible
                      • Broad range of fastening options provides for convenient installation
                      • High-quality coating
                    • P200

                    • Capacity: 500 to 2,000 kg
                      Outreach: 1,000 – 2,000 mm
                      Length: 2,000 to 10,000 mm

                      Advantages
                      • Point-to-point load transport
                      • Variable maximum crane rail length by combination of several fields
                      • Compact design, perfectly suited for small rooms
                      • Large effective lifting height
                      • Support height and crane rail length can be adjusted to conditions on the spot
                      • Outdoor use possible
                      • Broad range of fastening options provides for convenient installation
                      • High-quality coating

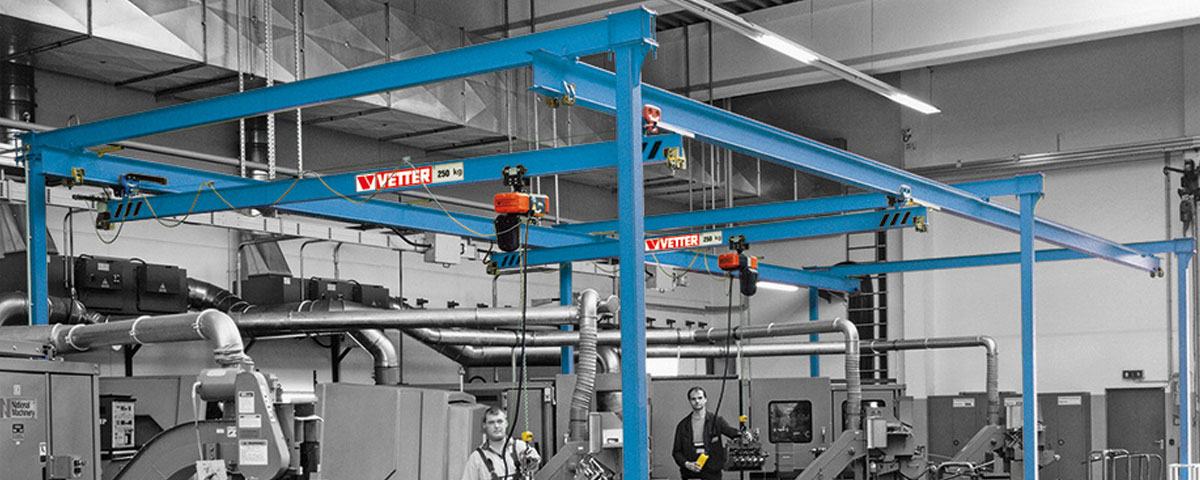

                  • Double-rail gantry cranes

                      • P300

                      • Capacity: 80 kg to 1,000 kg
                        Field length: 3,000 to 10,000 mm (Max. 40m crane rail length through combination of several fields)
                        Width: 2,000 to 10,500 mm

                        Advantages
                        • Ideally suited for subsequent installation in small halls without crane system
                        • Small footprint
                        • Static load of hall is not affected
                        • Compact design, perfectly suited for small rooms
                        • Large effective lifting height
                        • Support height and crane rail length / width can be adjusted to conditions on the spot
                        • Outdoor use possible
                        • Optional electric trolley enables comfortable and smooth crane operation
                        • Broad range of fastening options provides for convenient installation
                        • High-quality coating
                      • P400

                      • Capacity: 500 to 2,000 kg
                        Field length: 2,000 to 10,000 mm
                        Width: 4,000 to 8,000 mm

                        Advantages
                        • Ideally suited for linking several workplaces
                        • Use of several overhead cranes possible
                        • Variable maximum crane rail length by combination of several fields
                        • Small footprint
                        • Static load of hall is not affected
                        • Support height and crane rail length / width can be adjusted to conditions on the spot
                        • Outdoor use possible
                        • Optional electric trolley enables comfortable and smooth crane operation
                        • Broad range of fastening options provides for convenient installation
                        • High-quality coating

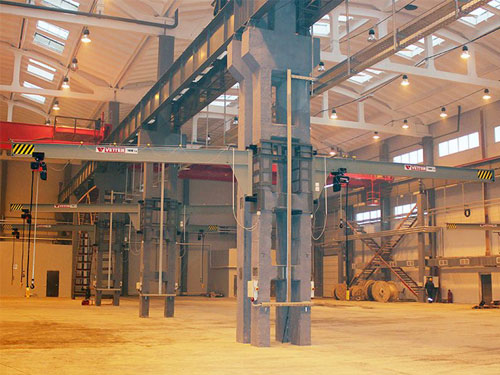

                      • P500

                      • Capacity: 1,000 to 10,000 kg
                        Field length: 4,000 to 10,000 mm
                        Width:
                        4,000 to 15,000 mm

                        Advantages
                        • Low profile permits utilization of entire hall height
                        • Large effective lifting height
                        • Subsequent installation in halls which cannot support the weight of an overhead crane
                        • Static load of hall is not affected
                        • Ideally suited for linking several workplaces
                        • Use of several overhead cranes possible
                        • Variable maximum crane rail length by combination of several fields
                        • Small footprint
                        • Support height and crane rail length / width can be adjusted to conditions on the spot
                        • Outdoor use possible
                        • High ease of use thanks to smooth starting and braking behaviour of overhead crane
                        • Broad range of fastening options provides for convenient installation
                        • High-quality coating
                      • ERGOLINE

                      • Capacity: 1,000 to 10,000 kg
                        Field length: 4,000 to 10,000 mm
                        Width:
                        4,000 to 15,000 mm

                        Advantages
                        • Static load of hall is not affected
                        • Ideally suited for linking several workplaces
                        • Small footprint
                        • Pillar height is adjustable
                        • Support height and crane rail length / width can be adjusted to conditions on the spot
                        • Unprecedented ease of use through precise control of the end position
                        • Easy-inside-running trolley with incomparable handling and optimal traversing forces
                        • Gimbal mounting for defrees of freedom in all directions and outstanding ergonomics
                        • High-quality coating
                    • Special cranes

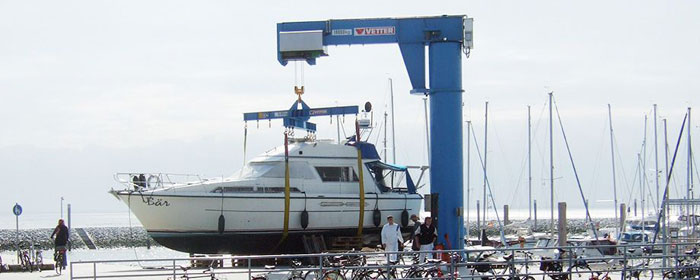

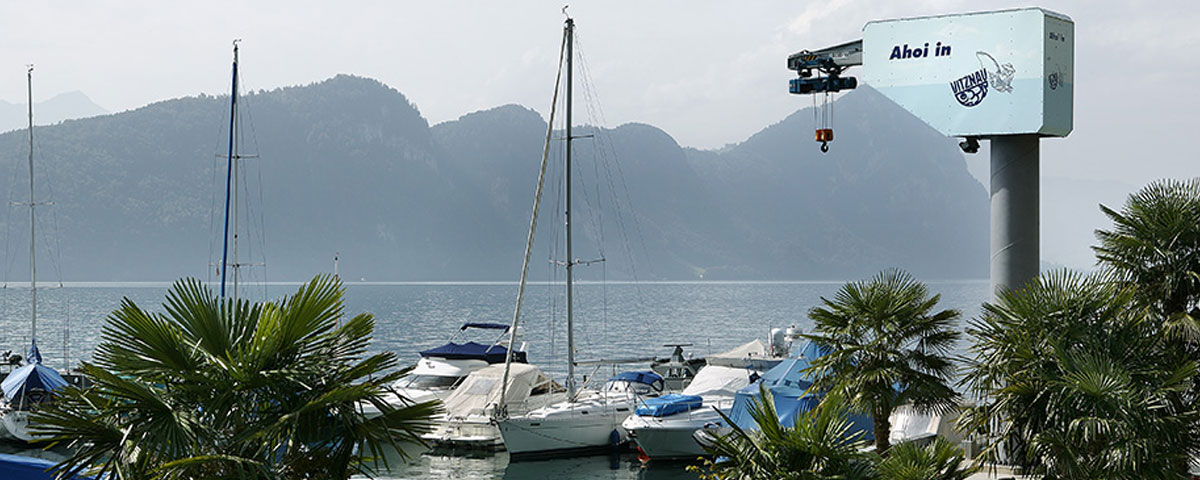

                        • Yachting Cranes

                        • Mooring of boats in marinas and dock-yards is often a critical moment and requires high effort. Procedures still uses are e.g. slip facilities or mobile cranes which hold many risks for boat and skipper. The VETTER yachting crane programme offers the ideal solution for each purpose, either as standard model or individually designed according to your requirements. With VETTER yachting cranes your work is safe and yachts up to weights of 100,000 kg can be hoistes without any damages.

                          Advantages

                          • Low maintenance and operating costs
                          • Small space required
                          • Easy operating
                          • Environmentally-friendly
                          • Individual design and colour
                          • Longtime competence and experience
                        • Slewing jib crane with several jib arms

                        • Wherever production islands are realized and each workstation has to be fitted with its own crane, slewing jib cranes with several jib arms on one column are the perfect choice. This solution is quite space-saving and reduces the space required per workstation. Due to its compact design, the crane features a maximum lifting height and is perfectly suitable for small and narrow operating rooms. With its optional electrical slewing gear, it provides increased ease of use when operated in the higher capacity / outreach range. The slewing jib crane with several jib arms perfectly meets your requirements since column height, jib arm length, and number of jib arms can be adjusted individually. These cranes are a combination of standard solution (jib arm of ASSISTENT AW and GESELLE GN) and special solution regarding the static design of the column which now has to absorb the forces of several jib arms.

                           Advantages
                          • Space-saving
                          • Cranes independently operable
                          • Compact design, perfectly suited for small rooms
                          • Large effective lifting height
                          • Column height, jib arm length, and number of jib arms can be adjusted to conditions on the spot

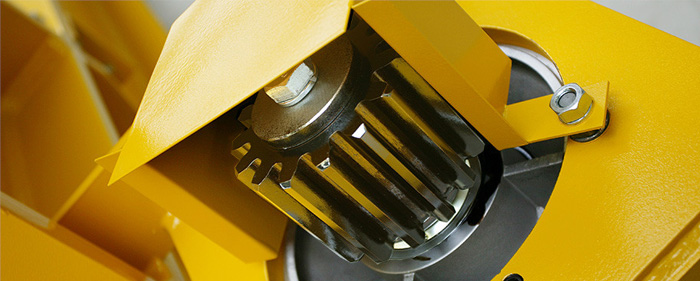

                          • Comfortable and smooth slewing by means of electrical slewing gear
                          • Broad range of fastening options provides for convenient installation
                          • High-quality coating

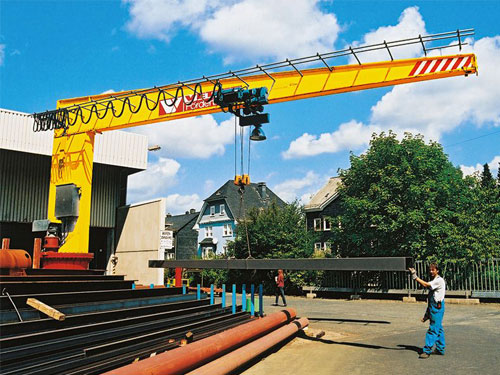

                        • Individual crane solutions

                        • Slewing jib cranes demonstrate their universal applicability even in the most difficult material transport jobs. They can be used as magnet cranes, power plant cranes, loading cranes, special cranes on large open-pit mining equipment or as robotic cranes. Capacities of up to 100 tons and outreaches of up to 25 m have already been achieved, for example in power plants, steel industry, tank farms and mining industry.

                           Advantages
                          • Competent engineering for individual solutions
                          • Indoor and outdoor operation
                          • Offshore operation
                          • Approvals acc. to SLV, Germanischer Lloyd, GOST, Bureau Veritas and many more
                          • Ex-protection acc. to ATEX
                          • Capacity: max. 100 t
                          • Outreach: max. 25 m

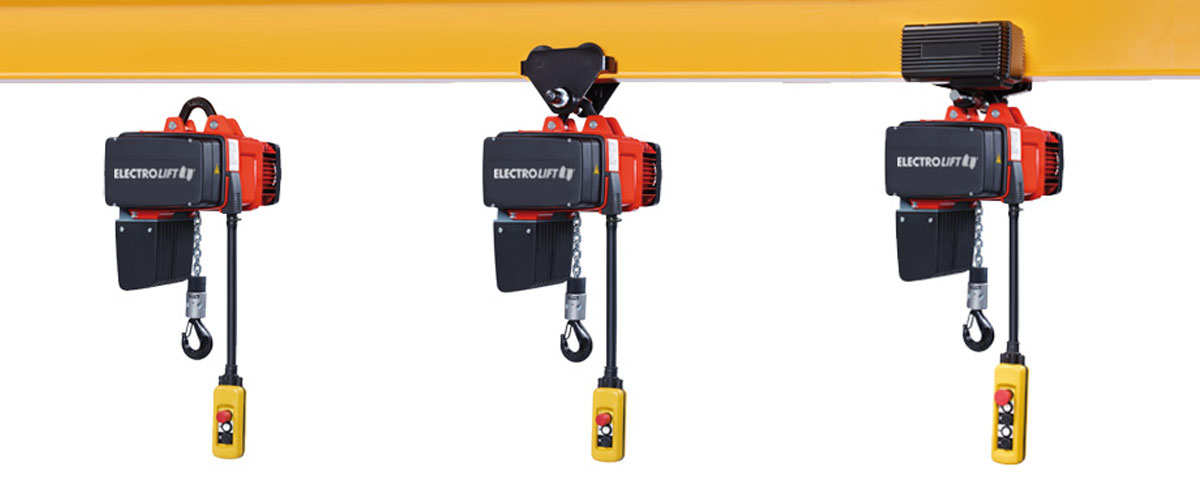

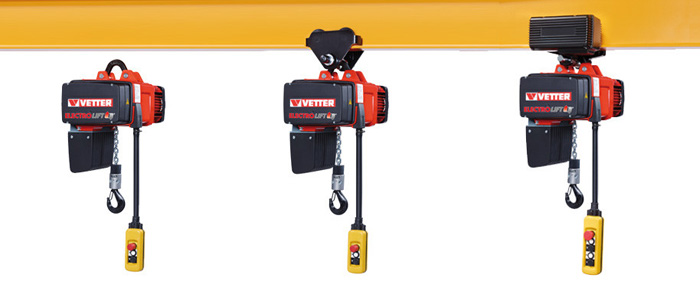

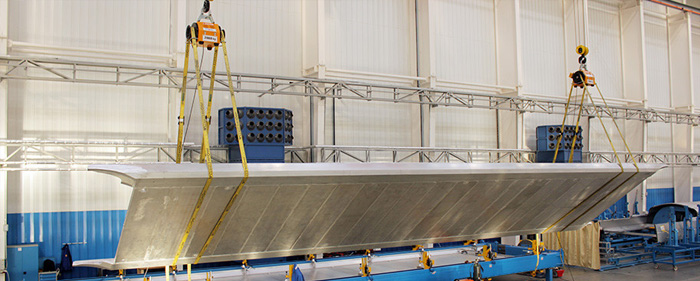

                      • ELECTROLIFT®-Electric chain hoists

                            • Model SiXX

                            • Advantages
                              High safety
                              • Control voltage 24 V
                              • Limit switch
                              • Overload protection with speed monitoring

                              Requiring little maintenance and installation

                              • All electric connections in plug-in design
                              • Service hood allowing for direct access to plug connections, strain relief, and control cable
                              • Low chain wear

                              Highly convenient use
                              • Operating hours counter and status / error messages depicted in display
                              • Two lifting speeds for precise and productive operations

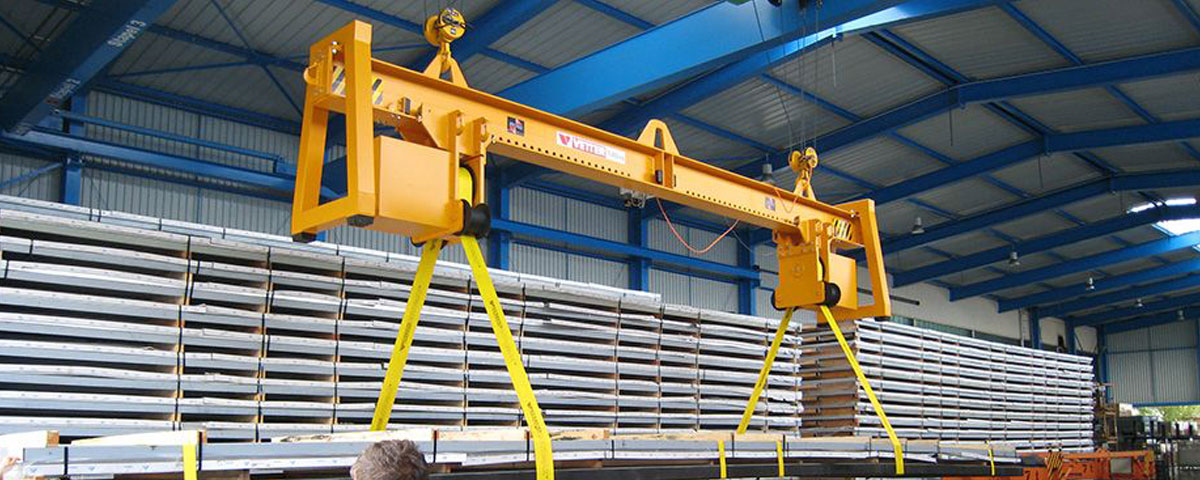

                        • ROTOMAX®-Load turning devices

                            • Basic devices

                            • Advantages
                              • Safe and convenient rotating and turning of bulky goods
                              • The item to be rotated can be stopped in any position
                              • No damage to items to be rotated
                              • Avoidance of accidents during rotation
                              • Mobile use
                              • Capacities: 1,000 to 200,000 kg
                              • Standard devices with fixed belt distance or manual / electric adjustment
                              • Single devices for tandem operation
                              • Special devices for foundries
                              • Individual solutions tailored to your application

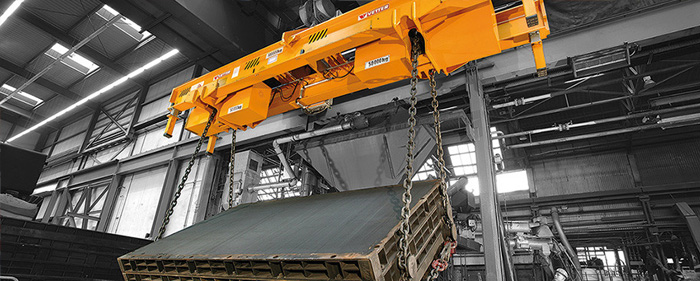

                            • Special foundry devices

                            • With the load turning device ROTOMAX® you can turn filled or empty moulding boxes (e.g. at the refractory dressing, core inserting and assembling) fast and safe. The moulding boxes are taken up at the outside trunnions by belts or chains and are rotated fast and safe into any position.

                              For more comfortable and faster turning of moulding boxes and workpieces the loard turning device ROTOMAX® is available in several variations.
                          • Complementary products

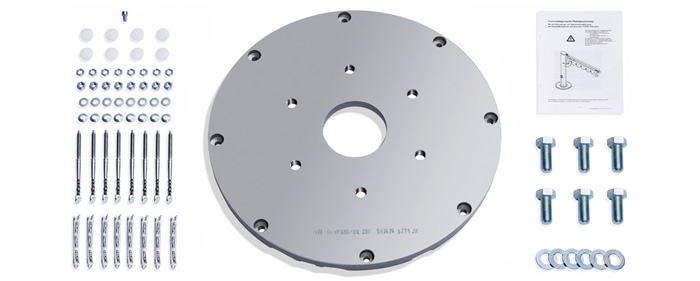

                              • DowelPlate-System

                              • Scope of delivery
                                • Round, screw on DowelPlate with with counter drillings for dowels (no protruding screw heads, no tripping hazards) and with threaded drillings for crane fixing and alignment screws.
                                • Dynamic-chemical anchors FHB dyn including washers, nuts, safety nuts, cover caps and injection mortar.
                                • Fixing screws for connection of crane column and special foot plate
                                • Alignment screws for alignement of the crane
                                • VAS2 pad with integrated VETTER cushions for compensation of uneven floors up to max. 15 mm difference in height.
                                • Cartridges with special injection mortar for filling the cushions
                                • Detailed mounting and assembling instruction for the VETTER-Safety-DowelPlate-System VAS2

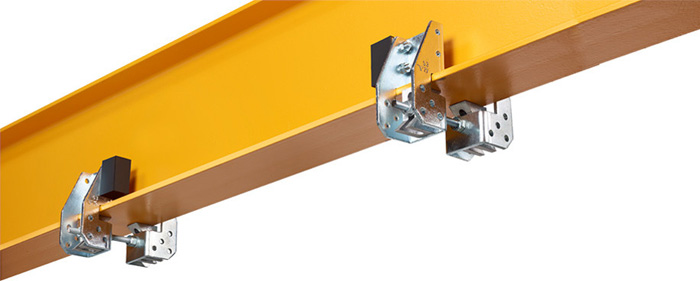

                              • UNI end buffer

                              • Advantages
                                • Universal trolley limit stop for parallel flanged beams (91 to 300 mm beam flange width)
                                • Suitable for all makes of push trolleys and electric trolleys
                                • Quick installation, without gas-cutting, welding, and drilling
                                • Installed in just a few minutes
                                • Multi-purpose use for installation on lower or upper beam

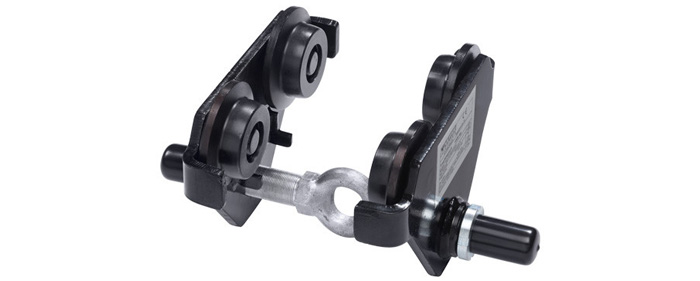

                              • Push trolleys

                              • Advantage
                                • Designed for suspension of hoist with suspension hook
                                • Continuous adjustment to any beam flange width
                                • For parallel-flanged beams from 50 to 305 mm with a maximum flange taper of 14 %
                                • Side guards protecting against climbing and falling
                                • Rollers are turned, running in ball bearings, encapsulated, and lifetime-lubricated
                                • Easy installation

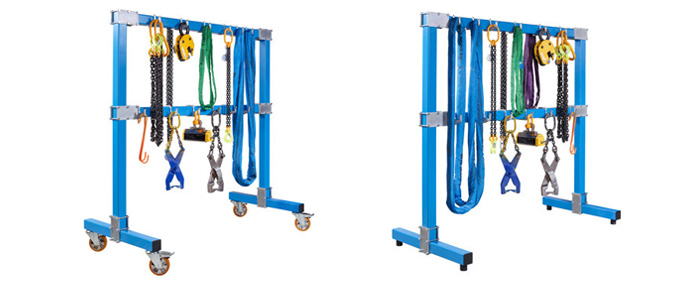

                              • Rack for slings

                              • Advantages
                                • Increased order, tidiness, availability, and value stability as well as longer service life of your slings
                                • Highly sturdy design
                                • Includes 12 adjustable double hooks
                                • Crossbeam adjustable in height
                                • High-quality coating, sky-blue (RAL 5015)
                                • Easy disassembly and reassembly for mobile use on construction sites
                                • Delivery as construction kit, convenient assembly
                            • Spare parts

                            • Complete service – everything from a single source!

                              When your crane is getting on a bit, it pays off that you bought a brand product! Because when using the proven technology of an experienced manufacturer you are on the safe side regarding long-term readiness of your cranes. Our cranes are designed to be a lifelong companion if possible
                                  • Spare parts from VETTER Krantechnik

                                  • VETTER as a partner for many years – your benefits:
                                    • Quick provision of spare parts all over the world, on request by courier on the next day (Germany)
                                    • Availability of spare parts guaranteed for many years
                                    • Competent consulting regarding spare parts by our skilled account managers who know our cranes inside out
                                    • Wear part sets tailored to your needs and crane solution
                                    • Conversions and extensions up to complete retrofitting (e.g. slewing gear, modernisation, electric controls, increase of capacity, extension of column, etc.). Your crane grows with your requirements! Our field staff would be pleased to advise you on the spot.
                                    • Complete service – everything from a single source! On request, installation of spare parts or conversions throughout Germany by the skilled fitters of the VETTER Kranservice Company.
