- Offer Profile
- SCHNEEBERGER ® serves original equipment manufacturers operating in various industries worldwide – from machine tool, solar technology and semiconductor technology to electrical engineering and medical engineering and others. Linear bearings, profiled linear guideways, measuring systems, gear racks, slides, positioning systems and mineral casting are all part of SCHNEEBERGER’s product and manufacturing range.
Product Portfolio
Linear- and profiled guideways
- With our highly precise and reliable standard components we cover a wide range of linear and profile guidance applications.
Profiled guideway
Type MR
-

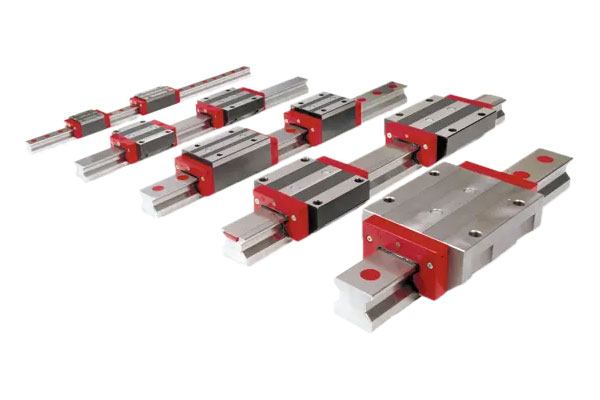

MONORAIL MR Profiled linear roller guideways
The very precise MONORAIL profiled guide ways are used worldwide in many machine tool applications. A widespread product program is covering the requirements from small manipulators till heavy chipping processes.
MONORAIL MR
High rigidity, great dynamic and static load carrying capacity, outstanding running smoothness and the total enclosure of the carriage are the main features of the MONORAIL guideway. These properties result in higher machining rates while enhancing geometrical accuracy and surface quality of the machined workpieces. Our highly rigid MONORAIL provides improved vibration behavior, smaller vibration amplitudes and thus extends tool life.
SCHNEEBERGER has systematically applied its many years of experience in the design, production and use of roller-type anti-friction guideways in the development of the MONORAIL. Consequently the MONORAIL MR is a cost-effective anti-friction guideway which meets the challenge presented by modern machine design.
Type BM
-
MONORAIL BM Profiled linear ball guides
The very precise MONORAIL profiled guide ways are used worldwide in many machine tool applications. A widespread product program is covering the requirements from small manipulators till heavy chipping processes.
MONORAIL BM
SCHNEEBERGER's MONORAIL BM linear ball guides features excellent dynamic properties and many commercial benefits. Designed with a small number of cleverly arranged components, it provides for excellent running properties due to the small number of transitions in the ball tracks, which lead to very quiet running, low pulsation and low friction as well as high travel speeds. The use of a trapezoidal rail section results in an extremely rigid guideway coupled with a substantial reduction in servicing time as additional wipers can be changed without dismantling the carriage. Complete sealing of the carriage guarantees maximum reliability coupled with a long service life. This robust and economical guideway rounds off SCHNEEBERGER's range of products for industrial applications with high demands on speed, reliability and consistant running properties.
Profiled miniature guideway MINI-X
- MINI-X comprises the newest generation of miniature guideways for application in high-tech fields. The following are part of the MINI-X range: MINIRAIL miniature profiled linear guideways, the MINISCALE PLUS integrated linear measuring system, and the MINISLIDE micro-frictionless table.
MINIRAIL
-
MINIRAIL - the range of high-precision guideways
MlNlRAlL represents the latest generation of miniature guideways for sophisticated applications.
They are extremely robust, and their smooth running, precision, and reliability are demonstrated in every application. The design, material selection, and surface finish of the recirculation element and ball entry zone guarantee low pulsation and therefore a smooth ride. The range includes eight rail widths which can be combined with up to four carriage sizes.
MINISCALE PLUS
-
Miniature guideway with integrated measuring system – “all in
one“
MINISCALE PLUS is based on the proven miniature guideway MINIRAIL. Consequently, the guidance-technical specifications of MINISCALE PLUS also comply with MINIRAIL.
The range includes eight rail widths which can be combined with up to four carriage sizes.
MINISLIDE
-
The last word in productivity
MINISLIDE embodies the newest generation of miniature slides for extremely demanding applications. They are highly robust and reliable in every application due to their smooth performance, precision and long service lifetime.
Linear bearings
Type RN
-
Linear bearing type RN
The RN linear bearing represents a consistent optimization of the R linear bearing. Thanks to the enlarged contact surface of the roller with the guideway, the performance capacitiy is significantly increased, with unchanged fitting dimensions.
The features of the RN include:- approx. 3x higher load carrying capacity
- significantly reduced susceptibility to cage drift
- reduced danger of contamination due to narrower gap between individual guides
Lengths: 50 to 1500 mm
Type RNG
-
Linear bearing type RNG
The RNG linear bearing is a modern, high-performance design and was created through the consistent optimization of the R type bearing. Highly loadable guidance systems with the smallest dimensions can be realized. Through the high performance with comparably small bearing cross-sections, an unrivalled economic efficiency results in many applications.
Sizes: 4, 6, 9, 12
Lengths: 500 to 1500 mm
Type R
-
Linear bearing type R
With the type R, SCHNEEBERGER introduced the first standardized linear bearing in the world. Today it is recognized as an industrial standard. The bearing can be used with rollers or balls and is suitable for many applications with medium to high demands. Combined with SCHNEEBERGER recirculating units, configurations with an unlimited stroke are feasible.
Sizes: 1, 2, 3, 6, 9, 12
Lengths: 20 to 1500 mm
Type RD
-
Linear bearing type RD
The RD linear bearing complements the R type by providing space-saving solutions. In addition, the use of R and RD linear bearings provides a substantially more economical guidance concept in the user’s construction. Combined with SCHNEEBERGER recirculating units, configurations with an unlimited stroke are feasible.
Sizes: 1, 2, 3, 6, 9, 12
Lengths: 100 to 2000 mm
Type N/O
-
Linear bearing type N/O
The N/O linear bearing has been designed for use with needle cages. These anti-friction guideways are suitable for high-load applications. Together with the closely arranged needle cage the bearing has a very high rigidity. The SCHNEEBERGER plastic and steel composite cage used in these guides gives less resistance to motion than similar needle cages.
Sizes: 62015, 92025, 2025, 2535, 3045, 3555
Lengths: 100 to 2000 mm
Type M/V
-
Linear bearing type M/V
Type M/V linear bearings are equipped with needle cages and are suitable for high load applications. The SCHNEEBERGER composite cages used with these guides ensure that there is little resistance to motion as compared to other similar needle bearing guides, while providing very great rigidity.
Sizes: 3015, 4020, 5025, 6035, 7040, 8050
Lengths: 100 to 1500 mm
Customized bearings
-
Special requirements need custom-made solutions to meet the market
needs.
For this SCHNEEBERGER concentrates its complex applications and engineering know-how in order to react to our customers specific demands.
Our goal is to offer you maximum benefits with our products:
Highest precision, quality, reliability and long life-time at cost effective levels.
Our strengths:- We produce guideways and gear racks according to your specifications at competitive prices
- We guarantee short lead times for prototypes and reliable deliveries for series
- We discuss your application at your facility in order to find the optimum solution
Sliding bearings
-
In some applications friction-bearings are the better choice
compared with frictionless bearings. For such applications
SCHNEEBERGER is supplying guideways out of steel, that are equipped
with a sliding material specified by the customer.
Lubrication grooves are prepared on request.
Outer dimensions are free and could either be standardized, see linear bearings and customized.
Special bearings
-
It has to be a frictionless bearing, but the standard dimensions do
not fit into your design?
No problem!
You can get any linear guideway! Typical out of through-hardened bearing steel. Single piece rails can be produced up to 6000mm (inductive hardened) resp. 3000mm (through-hardened).
Specialties
-
Our machinery and the high flexibility of our production is
extremely well qualified for grinding any workpieces, where precise
grinding-processes are necessary.
Send us your RFQ!
Recirculating units
Type SK
-
Ball recirculating units type SK
The type SK recirculating unit is equipped with balls and is suitable for low to medium loading. It is used with SCHNEEBERGER type R or RD linear bearings and can be uniformly loaded in every direction. Hence, space saving designs may be realized. Some sizes can be additionally fitted with damping elements (type designation SKD). These provide smoother operation but also have a somewhat reduced load carrying capacity.
Sizes: 1, 2, 3, 6, 9, 12
Lengths: 22 to 200 mm
Type SKD
-
Ball recirculating units type SKD
The type SKD recirculating unit is equipped with balls and is suitable for low to medium loading. It is used with SCHNEEBERGER type R or RD linear bearings and can be uniformly loaded in every direction. Hence, space saving designs may be realized. Some sizes can be additionally fitted with damping elements (type designation SKD). These provide smoother operation but also have a somewhat reduced load carrying capacity.
Sizes: 6, 9, 12
Lengths: 100 to 200 mm
Type SKC
-
Ball recirculating unit type SKC
The recirculating unit type SKC provides unlimited stroke and equal load carrying capacity in all directions. The SKC, designed for low-to-medium loading conditions, operates dry – lubrication is not required! These units, used with SCHNEEBERGER linear bearings type R or RD, are drop-in replacements for SCHNEEBERGER SK and SR recirculating units. The combination of coated stainless steel, ceramic and teflon makes this recirculating unit suitable for lubrication free operation in high vacuum and clean room applications
Sizes: 3, 6
Lengths: 75 - 100 mm

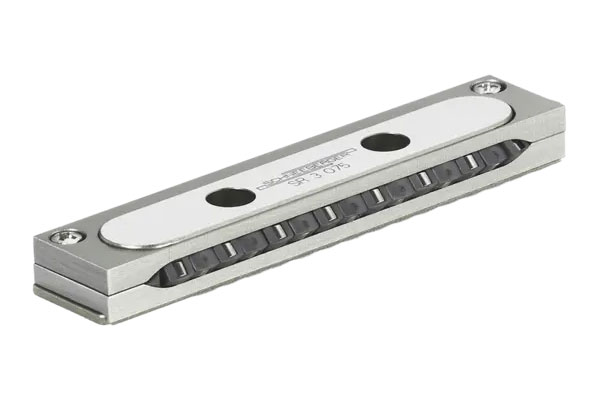

Type SR
-
Roller recirculating unit type SR
The SR recirculating unit has cross rollers and is suitable for medium to high loading. Dimensionally interchangeable with type SK, the type SR is also used with SCHNEEBERGER type R or RD linear bearings, but offers greater load carrying capacity and rigidity.
Sizes: 2, 3, 6, 9, 12
Lengths: 32 to 200 mm
Type NRT / NRV
-
Recirculating unit type NRT and preload wedge type NRV
The roller recirculating units NRT are designed for medium to heavy loads, high rigidity and high precision. Together with suitable SCHNEEBERGER linear bearings, adjusting wedge or attaching part ingenious constructions can be realized.
These wedges are used normally to adjust the preload. At the same time, by suitably shaping the cylindrically ground wedge bars, small angular deviations and deformations in the surrounding construction can be compensated. The parts are made from hardened steel.

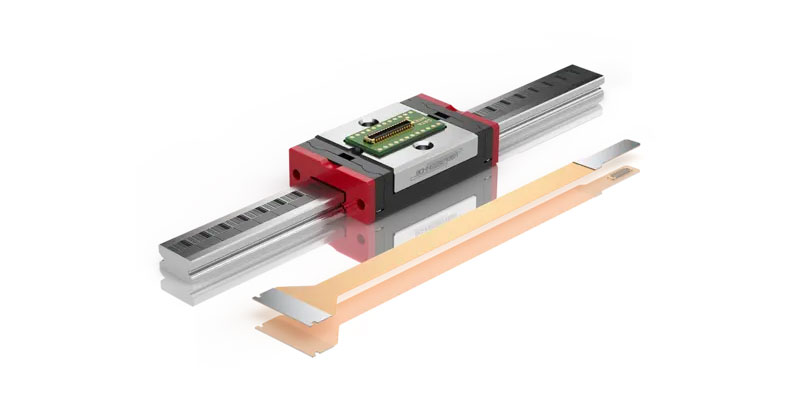

Measuring systems
- With over a decade of field experience, SCHNEEBERGER sets the standards for compact, integrated distance measurement on a magnetoresistive basis with respect to precision, installation, service and maintenance, design and construction.
AMSA 3B analog/rollers
-
SCHNEEBERGER’s AMSA 3B MONORAIL is an integrated measuring system
for distance measurement for use on all protected machine tool axes
with high demands on system precision. Mechanically the AMSA 3B is
based on SCHNEEBERGER’s MR MONORAIL roller guide with lengths up to
6 metres. The integration of the measurement system allows very
compact axes to be put together.
An analog 1Vss (200 μm signal period) interface, with different cable lengths, is available as the interface with the control system. Combined with SCHNEEBERGER’s SMEa interpolation electronics, very high-resolution and fast digital signals can be provided. Reference marks can be set at 50mm intervals or distance coded. Different options for carriage lubrication and sealing permit the best possible degree of adaptation to application requirements. The easily interchangeable reading head is identical for all sizes.
AMSD 3B digital/rollers
- MONORAIL AMSD 3B is an integrated magneto-resistive measuring system for distance measurement based on the MONORAIL MR profile guideway with an incremental, digital interface. The AMSA 3B is the starting point for this product. The profile rails are thus identical and are compatible with both AMSA 3B and AMSD 3B. The AMSD 3B version has an incremental, digital interface and a range of reading head options that permit different resolutions and allow the system to be adapted to control systems with different input frequencies.
AMSABS 3B absolut/rollers
-
The product AMSABS 3A for roller guideways now combines proven
magneto-resistive measuring technology with an absolute digital
interface.
With the proven advantages of AMS products like
- Safe magneto-resistive sensing
- One-piece lengths up to 6 m
- One reading head for all sizes
- Complete interchangeability of rails and reading heads
We have added the following additional features to simplify the operation of distance measuring systems in industrial environments.
- An absolute digital interface
- Display of operating conditions
- Configuration and diagnosis options via a serial link
- Increased operational reliability attained by processing valid information
AMSA 3L long analog/roller
-
AMSA 3L "The product for all lengths" is now made possible by highly
accurate machining and measurement of the rails. A special design of
the rail ends for butt joints, when used in combination with the
AMSA 3L reading head, allows the carriage to run over the butt
joint, so that measuring axes of any desired length can be
constructed.
To achieve a high level of availability of AMSA 3L components worldwide, each size is manufactured in 3 m segments, and both ends of a segment are prepared for the AMSA 3L butt joint.
AMSA 4B analog/balls
- MONORAIL AMSA 4B is an integrated magneto-resistive measuring system for distance measurement based on the MONORAIL BM profile ball guideway with an analog voltage interface. These products are preferred for use in applications that make major demands on travelling speed and accuracy. No additional assembly or adjustment of the measuring system is required, which is reflected by cost savings in machine design, manufacture and servicing. The accuracy and process reliability of the machine are also improved. The sturdy housing for the read-head has a complete wiper system consisting of longitudinal and cross wipers, which provide optimum protection for the measuring system. The AMSA 4B version has an analog voltage interface of 1 Vss for connection to all standard control systems.
AMSA 4B digital/balls
- MONORAIL AMSA 4B is an integrated magneto-resistive measuring system for distance measurement based on the MONORAIL BM profile ball guideway with an analog voltage interface. These products are preferred for use in applications that make major demands on travelling speed and accuracy. No additional assembly or adjustment of the measuring system is required, which is reflected by cost savings in machine design, manufacture and servicing. The accuracy and process reliability of the machine are also improved. The sturdy housing for the read-head has a complete wiper system consisting of longitudinal and cross wipers, which provide optimum protection for the measuring system. The AMSA 4B version has an analog voltage interface of 1 Vss for connection to all standard control systems.
AMSABS 4B absolute/balls
-
With the MONORAIL AMSABS 4B, SCHNEEBERGER provides an integrated measuring
system for absoulte distance measurement for use in automation engineering,
mechanical handling technology and machine tool engineering, whereby high force
absorption and precise distance measurements are required in small assembly
spaces. From a mechanical point of view, the AMSABS 4B is based on the MONORAIL
BM roller guide up to a length of 6m. The distance measurement system’s compact
housing facilitates the construction of highly compact axes.
With the proven advantages of AMS products like
- Safe magneto-resistive sensing
- One-piece lengths up to 6 m (BM 15: 1500 mm; BM 20: 3000 mm)
- One reading head for all sizes
- Complete interchangeability of rails and reading heads
we have added the following additional features to simplify the operation of distance measuring systems in industrial environments.
- An absolute digital interface
- Display of operating conditions
- Configuration and diagnosis options via a serial link
- Increased operational reliability attained by processing valid information
MINISCALE digital/balls MINI-X
-
Miniature guideway with integrated measuring system –
“all in one“
MINISCALE is based on the proven miniature guideway MINIRAIL. Consequently, the guidance-technical specifications of MINISCALE also comply with MINIRAIL.
Resolution
1 μmAccuracy
up to 30 mm = +/- 4 μm (+/- 3 μm upon request)
up to 300 mm = +/- 10 μmRepeat accuracy
unidirectional = +/- 1 μm
bidirectional = +/- 2 μmMeasuring scale
diffraction grating 40 μm
max. length 300 mmRail
width in mm 7, 9, 12, 15 and 14, 18, 24, 42
quality classification G1
preload classification V1
length max. 600 mmSpeed
max. 5 m/sAcceleration
max. 300 m/s² (30 g)Sensor
lifetime 100’000 h MTTF (mean time to failure)

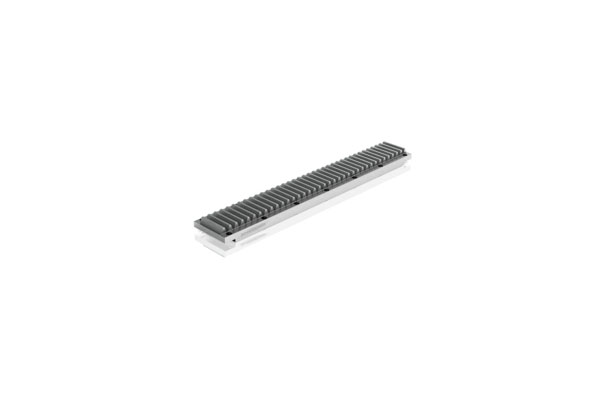

Gear racks
-
Gear racks are an economic drive element, especially with long
strokes of more than 2m. Gear racks are preferred also with dirty
environments and/or big axial forces. The stiffness is the same over
the whole length.

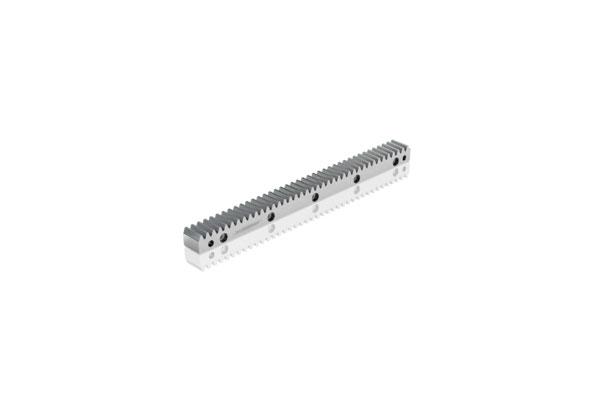

SCHNEEBERGER offers any cross-section up to module 16 with metric or module pitch, with helical or straight gears. The maximum single piece length is 3000mm, multi-piece butt jointed rails for longer lengths are warranted.
The teeth can be millied or ground, according to your wish. Interesting are the various hardening processes, depending on the applying load. Weak, inductive hardened or case hardened gear racks are available. The best gear quality is Q5 (individual adjacent pitch error fp=0,006mm, cumulative pitch error Fp=0,020/300mm).
We sell competence and know-how, not standard products! Slides and miniature table
- For decades these tables have been renowned for the highest degree of accuracy, reliability and the ultimate in operating characteristics. Preloaded anti-friction guideways make these tables absolutely playfree.
Frictionless tables
Type NK
-
Frictionless tables type NK
- Single axis model in steel or cast-iron depending on the size
- With roller cages
- 5 sizes
- Lengths from 25 to 510 mm
- Strokes from 10 to 450 mm
- Supports a variety of applications due to the many different sizes
- For highest accuracy requirements
- For highest accelerations available w.
FORMULA-S
Sizes NK 1 and 2 = Steel
Sizes NK 3, 6 and 9 = Cast-iron
Standard model
Type NK frictionless tables consist of equal length upper and lower sections and type R linear bearings. All tables are equipped with type AC roller cages and type GB endpieces and can be mounted vertically or horizontally. The lower section includes standardized attaching holes. The sides opposite to the setscrews in the upper and lower sections can be used for mounting purposes. For the standard model stroke limiting is made by means of two screws in the upper section and one screw in the lower section. These screws can withstand only small forces or impacts in the direction of motion and should not be used as stops. With FORMULA-S these screws are no more necessary due to the cage assist system.
Type NKL
-
Frictionless tables type NKL
- Single axis model
- Light design, table components in aluminum
- 4 sizes
- With roller cages
- Lengths from 25 to 410 mm
- Strokes from 10 to 280 mm
- For highest accelerations available w.
FORMULA-S
Aluminium
Standard model
Type NKL frictionless tables consist of equal length upper and lower sections and type R linear bearings. All tables are equipped with type AC roller cages and type GB endpieces and can be mounted vertically or horizontally. In the upper and lower sections there are standardized attaching holes. The sides opposite to the setscrews in the upper and lower sections can be used for mounting purposes. For the standard model stroke limiting is made by means of two screws in the upper section and one screw in the lower section. These screws can withstand only small forces or impacts in the direction of motion and should not be used as stops. With FORMULA-S these screws are no more necessary due to the cage assist system.
Type NE
-
Slides type NE
Type NE AL slides are designed as closed model, which means that they can be sealed on all sides with small spacing between upper and lower sections. Prevent the ingress of dirt. All sizes are equipped with linear guide type R bearings. There are standardized attaching thread holes in the upper and lower section. Table parts in aluminium. Linear guideways in corrosion resistant steel. Tables can be integrated in any position.
Micro frictionless tables
Type MS 4 and MS 5
-
Highest results in the smallest envelope
The gothic arch profile of the MINISLIDE MS tracks permits loads that are more than ten times higher than a traditional 90° V-profile.Benefits of the gothic arch profile
- High load-carrying capacity in a compact design
- Maximum rigidity
- Low sensitivity to impacts
- Excellent damping behaviour
- Robust
- Low weight
Type ND
-
Micro frictionless tables type ND
- Single axis model in steel
- 3 sizes
- With roller cages
- Lengths from 25 to 155 mm
- Strokes from 12 to 90 mm
- Low friction force
- For highest accuracy requirements
Steel
Standard model
Type ND micro frictionless tables consist of equal length upper and lower sections. The double V-shaped lower section is through hardened. All sizes are equipped with type AC roller cages and can be mounted horizontally or vertically. In the upper and lower sections there are standardized attaching holes.
Type NDN
-
Micro frictionless tables type NDN
- Single axis model in corrosion resistant steel
- 3 sizes
- With ball cage in brass
- Cage centering mechanism which helps to avoid cage creep
- Length from 10 to 80 mm
- Strokes from 5 to 70 mm
- For highest accuracy requirements
- Suitable for high speed applications
Corrision resistant steel
Standard model
The micro frictionless tables NDN consist of upper and lower parts of the same length and can be utilized horizontally or vertically. They consist of only four components; the lower and the upper part made of stainless steel, the brass cage and the stainless steel rolling elements. The U-shaped cage joins the two guideways together. As a result, the susceptibility to cage drift is essentially eliminated. NDN micro frictionless tables, preloaded in assembly to eliminate play, exhibit extremely low push force. NDN products fulfill high speed requirements with great precision and long service life.

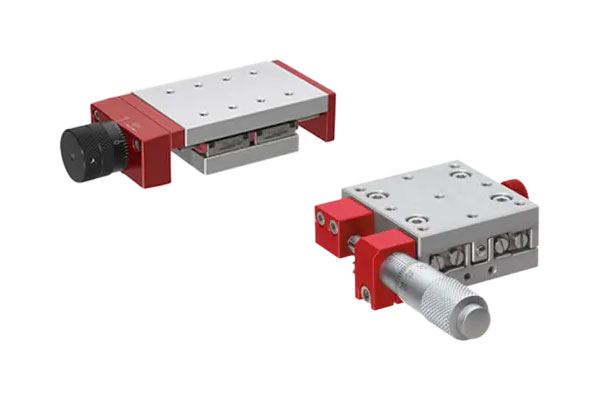

Positioning tables
Type NFM
-
Positioning table type NFM
Single axis manual driven stages with SCHNEEBERGER MINIRAIL – guideways. Manual positioning by a precision lead-screw, with anti- backlash nut and graduated drum, that can be set to zero position. Reading accuracy 0.01mm, strokes from 25mm to 150mm. NFM is a modular system with options for table base and top plate lengths, to give strokes between 25 and 150mm. Table parts made in aluminium anodised, MINIRAIL linear guideways and lead screw in corrosion resistant steel. Stage can be integrated in any plane. Special sizes and/or special attaching holes available on request. Optional clamping device on the side or directly on the lead screw (L dimension increased by 7mm). The clamping device can be mounted on either side of the stage (Size 7 without hand crank).
Type NH
-
Slides type NH
Single axis stages with SCHNEEBERGER linear guideways Type R2-RF. Manual positioning with micrometer, reading accuracy 0.01mm. Table parts are lightly loaded onto the micrometer screw by a tension spring. Design is available with or without micrometer. Micrometer fastening on the side or front of the stage. Tables of the same size can easily be assembled into 2 axis configuration. Standard strokes 13/13 and 25/(40)mm. Special hole patterns or strokes on request. All designs with a clamping system on the side of the stage. Table parts in aluminium anodised. Linear guideways in corrosion resistant steel. Tables can be integrated in any plane (micrometer below stage in vertical orientation!).
Mineral casting
-
SCHNEEBERGER mineral castings are manufactured by specialist staff
at our production facility in Cheb. The entire process from the
design phase and the actual casting process, through to final
finishing is subject to rigorous quality procedures. This guarantees
that complex machine structures and sub-assemblies with integrated
guideways are produced to the specified dimensions and to the
highest quality.
SCHNEEBERGER mineral casting is not only an alternative to conventional cast-iron or steel constructions, but in many instances it is by far the superior technology. This is demonstrated also by its economical advantages: SCHNEEBERGER mineral casting components have a short delivery time and are up to 30% cheaper. Our longstanding experience in mineral casting and its diversity of application possibilities makes us a strong partner for machine and plant builders. Our customer and application support starts at the construction phase because, thanks to FEM (Finite Element Method), we are able to simulate the effects of dynamic and static loads without the need for costly prototypes. In this way we can verify the desired characteristics of the cast components and overall thermal behaviour.
- A Vast range of Applications
We cover everything!
Schneeberger Mineralgusstechnik covers a very wide range of sectors and products, as you can see from these examples.
Presence: We have our own local production facilities in both the European and Asian markets, and our own sales offices in all major industrial countries.
Sectors: The number of areas where mineral casting offers unbeatable benefits for our customers is growing fast. Here are some of the main sectors that we are active in:- Machine tool industry
- Pick & place
- Packing industry
- Laser industry
- Electronics industry
- Optical industry
- Medical technology
- Food
- Flat panel (inspection equipment)
Precision positioning systems - motion systems
- Welcome to the world class of engineering excellences
in demanding positioning solutions.
For many years the name SCHNEEBERGER has been synonymous with high precision and reliable linear motion technology for high-end machinery and equipment. Groundbreaking innovations bear witness to the high level of engineering expertise and technical excellence, which have allowed the family business to maintain its position at the peak of a highly competitive market since 1945 Core competences
- Thanks to its high level of engineering expertise, SCHNEEBERGER is also able to control complex motion systems with great precision. In SCHNEEBERGER you have a partner who will supply you with well thought-out solutions for your entire motion and positioning requirements for many different applications.
Specific Engineering & application know-how
- We plan projects for and develop highly complex vacuum positioning systems, including those for particularly demanding applications, such as high-vacuum environments.
Engineering-Know-how
- We have successfully tested a range of system approaches in many different industries and under a range of conditions. On this basis, we work together with our customers to evaluate the optimum products and project specific solutions.
Internal Manufacturing & Assembly
- We manufacture mechanical sub-assemblies and assemble highly complex, high-precision systems, while guaranteeing a very secure source of supply. Using our standard component range, we are able to produce tailored solutions within a very short time frame: From single axes with integrated control units to highly complex systems based on mineral cast constructions.
Customer specific integration and customized delivery
- When it comes to integration, we always go just as far as
the customer wants us to go by considering the entire TCO.
Our engineers have a broad technical knowledge of many different branches of industry and can therefore quickly adapt to challenges posed by our costumers including new fields of business.
Worldwide serial production
- Using our standard component range, we are able to produce tailored solutions within a very short time frame: From single axes with integrated control units to highly complex systems based on mineral cast constructions. When it comes to integration, we always go just as far as the customer wants us to.
Specific know-how for high to ultra-high vacuum
- Our brand new clean room with certified cleanness level in operation of ISO 6 is built in a way that we can adapt the size of it to the requested needs. The modularity of it was always a key criterion for Schneeeberger Systems. This is also reflected in an additional specific ISO5 area as well as a "dark room" cleaning area. A specific oven is built into the gates in order to proceed to specific out-backing of components.
Customized solutions
- SCHNEEBERGER Systems is your reliable partner for
customized high performances positioning systems specifically designed for
your applications.
Thanks to over 25 years of continuous improvements you will have a partner who will supply you with well through-out solutions for your entire motion and positioning requirements for many different applications.
Our customer-specific systems also offer solution to highly complex motion challenges. Let you guide through some of the spectacular examples of our applications from different ranges of industries.
Flat panel display
- Our solution for the demanding FPD industry covers
processes from AOI to array tester over photo spacer measurements. More than
800 systems are installed worldwide. Some systems are directly manufactured
and assembled in Asia
In order to reduce to TCO SCHNEEBERGER innovates by integrating our own alternative to granite: Mineralcast.
This caste high damping structure helps to optimize, for example, the total system weight which reduces the handling and shipping costs.
Semiconductors
- ndependent if your requests are coming from the front or
from the back end, we are able to propose you the right tailor made
solutions for your challenging needs.
The very specific demands on extreme short development time as well as production ramp-ups and ramps-down are perfectly addressed by our team that works with the biggest names in the SEMI market since more than 25 years.
The world of nanometres stability and ms move and settle times is our world. We understand to the best your needs and transform them to a fully integrated motion solutions.
Printing
- Highest accuracy and outstanding geometrical performances
on one single linear axis are the key factors for a perfectly printed image.
SCHNEEBERGER is offering a concentrate of best possible performances on very large travels. Additional axes (Z and/or) T are perfectly integrated on the main axis in order to propose a fully integrated base for your printing device.
This specific build-up knowledge is integrated in our 3D systems solutions in order to propose you the best possible solution for your 3D demands.
Solar
- We help you Increasing your panel efficiency thanks ultra
high accurate motion platforms from SCHNEEBERGER. Key words focus are
minimize junctions or dead-areas and maximize your performances.
Independent if thin film or crystalline technology, we provide you the best possible solution for moving your substrate and/or process head under the highest precision.
Vacuum
- EUV, outgassing, pump-time, stability & magnetic
disturbances are the mains parameters that are considered during the layout
of a vacuum system. This in addition to all other key parameters that are
relevant for a perfect motion solution for your demanding environment and
performances.
Our systems are specifically developed to be able to run at partial pressures down to 10^9mbar by integrating specific components from linear motors (including specific shielding) to piezzo driven units & special cables.
All relevant machined parts (aluminium and/or SUS) are produced internally in order to keep the level of cleanness and outgassing controlled perfectly.
All vacuum systems are assembled, tested and packaged in our cleanroom, especially layed out to fill-full your production rhythme.
Other
- Independent if it is for a dental, an optical, a life
science or any other application, if you are confronted to a demanding
motion solution, we will develop for you the best possible (technical and
financial) solution that fits perfectly to your application.
Your key benefits are:- A tailor made solution for your specific challenge
- A fast and flexible development
- A fast and reliable supply
- A guarantee of quality that is constant and highly profitable
- A competent non-bureaucratic support
Our standard solutions
- Our configurable single linear axis series P3 will offer you a wide range of possible applications without any need to spend time and efforts in a deep product specification and development. Use all the advantages of high performances of the shelf product designed and manufactured by SCHNEEBERGER.
P3 series
- The P3 series in keywords:
- 3 standard travels, other lengths on demand
- Configurable with 3 different feedback/encoder resolutions
- Built on SCHNEEBERGER Monorail that offers highest stiffness at smoothest run.
- High load capacity
