The Laboratory of Intelligent Systems (LIS) directed by Prof. Dario Floreano
focuses on the development of robotic systems and artificial intelligence
methods inspired by biological principles of self-organization. Currently, we
address three interconnected research areas:
Mobile Robotics Research Projects
Analog Genetic Encoding (AGE)
Evolutionary Synthesis and Reverse Engineering of Complex Analog Networks
- The synthesis and reverse engineering of analog
networks are recognized as knowledge-intensive activities,
where few systematic techniques exist. Given the importance and
pervasiveness of analog networks, there is a founded interest in the
development of automatic techniques capable of handling both problems.
Evolutionary methods appear as one of the most promising approaches for the
fulfillment of this objective.
Analog Genetic Encoding (AGE) is a new way to represent and evolve analog
networks. The genetic representation of Analog Genetic Encoding is inspired
by the working of biological genetic regulatory networks (GRNs). Like
genetic regulatory networks, Analog Genetic Encoding uses an implicit
representation of the interaction between the devices that form the network.
This results in a genome that is compact and very tolerant of genome
reorganizations, thus permitting the application of genetic operators that
go beyond the simple operators of mutation and crossover that are typically
used in genetic algorithms. In particular, Analog Genetic Encoding permits
the application of operators of duplication, deletion, and transpositions of
fragments of genome, which are recognized as fundamental for the evolution
and complexification of biological organisms. The resulting evolutionary
system displays state-of-the-art performance in the evolutionary synthesis
and reverse engineering of analog networks.
The AGE Genome
- The AGE genome is constituted by one or more strings of
characters (called chromosomes) from a finite genetic alphabet. The
experimenter defines a device set which specifies the kind of devices that
can appear in the network. For example, the device set of an evolutionary
experiment aimed at the synthesis of an analog electronic circuit could
contain a few types of transistors, and the device set of an evolutionary
experiment aimed at the synthesis of a neural network could contain a few
types of artificial neuron models. The experimenter specifies also the
number of terminals of each kind of device. For example, a bipolar
transistor has three terminals, a capacitor has two terminals, and an
artificial neuron could be specified as having one output terminal and one
input terminal. The AGE genome contains one gene for each device that will
appear in the network decoded from the genome, as shown in the figure
Decoding the AGE Genome
- Analog Genetic Encoding specifies the regions of the
genome which correspond to the devices and to their terminals and parameters
by means of a collection of specific sequences of characters that we call
tokens. One specific device token is defined by the experimenter for each
element of the device set. The device token signals the start of a fragment
of genome that encodes an instance of the corresponding device. The
experimenter defines also a terminal token, which delimits the sequences of
characters that are associated with the terminals. The interaction between
genes is represented in terms of a device interaction map I, which
transforms pairs of character sequences associated with two distinct device
terminals, into a numeric value that characterizes the link connecting the
two terminals. The final result is an analog network decoded from the
genome, as shown in the animation
ECAgents: Embodied and Communicating Agents
- ECAgents is a transdisciplinary European research
project. Its goal is to provide a better understanding of the role of
communication in collections of embodied and situated agents (real and
simulated robots). This project involves people from different fields such
as computer science, robotics, biology, physics and mathematics.
Our contribution to the ECAgent project
Our work focuses on the prerequisites for communication, which need to be in
place before embodied agents can start bootstraping communication systems of
any complexity. These prerequisites depend on the complexity of the agents,
the complexity of the environment, and the complexity of the agent's set
We use artificial evolution to search for the emergence of communication and
neural networks as the underlying agent control mechanism.
Specifically, we are exploring the following prerequisites :
- The dynamic of the environment. For instance, an agent should look for food,
but food placement as well as food caracteritics, such as colour, are
dynamic. Some potential food sources in the world are "good", but others are
"bad". The agents need to explore and report their discovery to other agents
in order to maximise the group fitness.
- The genetic relatedness and the level of selection. Does a homogenous group
perform better then a heterogenous one? Is it better to do individual or
group selection? Can we find a general principle out of different
experiments involving different tasks and environment dynamics? This work is
done in collaboration with the EvoAnts projects project.
- The neural network architecture. To which point can we go without a hidden
layer? Is it necessary to balance sensor modality weight (preprocess vision
because of its several pixels)? Is memory (recurent neurons) mandatory? And
if yes, how many, with which connections?
- The communication medium structure. Is one medium sufficient (like vision)?
Is it necessary to have differents channels of differents properties (like
sound and vision)? Is local communication mandatory?
Our agents are S-bots, which were created as part of the Swarmbot project.
Both simulated and real one are used.

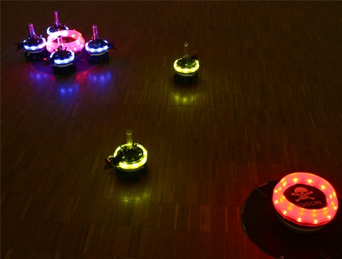

We are exploring and analysing the bootstraping of communication with
several starting conditions, neural architectures and evolutionary
conditions using virtual s-bots in Enki.
We are porting some of our experiments to the real s-bot robots.
We are also exploring what are the mechanisms to provide a smooth path for
evolution of signaling.
To conduct our experiments, we have developed a fast 2D physics-based
simulator and an evolutionary framework. Both are open-source.
- The s-bots have a diameter of 12 cm and a height of 15cm
and possess 2 Lilon batteries, which give it about an hour of autonomy. A
400 MHz custom Xscale CPU board with 64 MB of RAM and 32 MB of flash memory
is used for processing, as well as 12 distributed PIC microcontroller for
- Fig. 1. Left: Four conditions tested in our experiments.
- Fig. 1. Right: Comparison of mean performance with and
without communication in the four cases.
- Fig. 2. Left: Evolved food signalling strategy.
- Fig. 2. Right: Evolved poison signalling strategy
- The goal of this project is the study of a novel
design approach to hardware implementation for testing and using the
capability of self-assembling, self-organising, and metamorphosis of robotic
systems called SWARM-BOTS. Such an approach finds its theoretical roots on
recent studies in swarm intelligence, i.e., in studies of self-organising
and self-assembling capabilities shown by social animals (see figure 1).
An important part of the project consists in the physical construction of at
least one swarm-bot, that is, a self-assembling and self-organising robot
colony made of a number (30-35) of smaller devices, called s-bots. Each s-bot
is a fully autonomous mobile robot capable of performing basic tasks such as
autonomous navigation, perception of its surrounding environment, and
grasping of objects. A s-bot is also thought to be able to communicate with
other peer units and physically join either rigidly or flexibly to them,
thus forming a swarm-bot. A swarm-bot is supposed to be capable of
performing exploration, navigation and transportation of heavy objects on
very rough terrains, especially when a single s-bot has major problems at
achieving the task alone. The hardware structure is combined with a
distributed adaptive control architecture inspired upon ant colony
An s-bot is shown in figures 2 and 3. As can be seen there, the mobility is
ensured by a track system. Each track is controlled by a motor so that a
robot can freely move in the environment and rotate on the spot.
These tracks allow each s-bot to move even on moderately rough terrain, with
more complex situations being addressed by swarm-bot configurations.
The motor base with the tracks can rotate with respect to the main body by
means of a motorized axis.
S-bots can connect to each other with two types of possible physical
interconnections: rigid and semi-flexible.
Rigid connections between two s-bots are implemented by a gripper mounted on
a horizontal active axis. This gripper has a very large acceptance area that
can securely grasp at any angle and lift (if necessary) another s-bot.
Semi-flexible connections are implemented by flexible arms actuated by three
motors positioned at the point of attachement on the main body. The three
degrees of freedom allow to move the arm letrally and vertically as well as
extend and retract it.
Using rigid and flexible connections, s-bots can form a swarm-bots having 1D
or 2D structures that can bend and take 3D shapes.
Rigid and flexible connections have complementary roles in the functioning
of the swarm-bot. The rigid connection is mainly used to form rigid chains
that have to pass large gaps, as illustrated in Figure 5.
The flexible connection is adapted for configurations where each robot can
still have its own mobility inside the structure. The swarm-bot can of
course also have mixed configurations, including both rigid and flexible
connections, as illustrated in figure 4.
Potential application of this type of swarm robotics are, for instance,
semi-automatic space exploration, search for rescue or underwater
We now have two functional prototypes. We are working on some behaviours,
using a single robot or even with more then one robot.
On the software side, the XScale processor board is running
Familiar/GNU/Linux with wireless ethernet.
We are also syncing the real datas with the simulator so that a simulated
behaviour can easily be ported on the real robot.
- The s-bots have a diameter of 12 cm and a height of 15cm
and possess 2 Lilon batteries, which give it about an hour of autonomy. A
400 MHz custom Xscale CPU board with 64 MB of RAM and 32 MB of flash memory
is used for processing, as well as 12 distributed PIC microcontroller for
- Figure 1: S-bot prototype.
- Fig. Left: The rigid connection can be used to form
chains and pass very big obstacles and large gaps.
- Fig. Right: Swarm-bot robot configuration to pass a
'A new swarm of indoor flying robots capable of operating in synergy with
swarms of foot-bots and hand-bots'

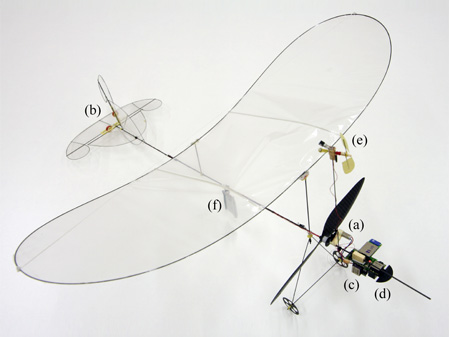

Eyebots are autonomous flying robots with powerful sensing and communication
abilities for search, monitoring, and pathfinding in built environments.
Eyebots operate in swarm formation, as honeybees do, to efficiently explore
built environments, locate predefined targets, and guide other robots or
humans (figure 1).
Eyebots are part of the Swarmanoid, a European research project aimed at
developing an heterogeneous swarm of wheeled, climbing, and flying robots
that can carry out tasks normally assigned to humanoid robots. Within the
Swarmanoid, Eyebots serve the role of eyes and guide other robots with
simpler sensing abilities.
Eyebots can also be deployed on their own in built environments to locate
humans who may need help, suspicious objects, or traces of dangerous
chemicals. Their programmability, combined with individual learning and
swarm intelligence, makes them rapidly adaptable to several types of
situations that may pose a danger for humans.
Eyebots are currently under development at LIS, EPFL. We will post
additional information on this site as soon as technical documents will be
available for public disclosure.
- Figure 1 Left: The Eyebots - artistic impression of the
eye-bots used in an airport
- Figure 1 Right: The Eyebots - artistic impression of the
eye-bots used in an urban house
Self Deploying Microglider
Developing a hybrid robotic vehicle capable of deploying itself into the air
and perform goal directed gliding
- Gliding flight is powerful -to overcome obstacles and
travel from A to B.
It can be applied in miniature robotics as a very versatile and easy to use
locomotion method. In this project we aim at developing a palm sized
Microglider that possesses the ability to deploy from ground or walls, to
then open its wings, recover from almost every position in mid-air and
perform subsequent goal directed gliding.
A potential source of inspiration on how to accomplish this task efficiently
is nature. In the animal kingdom, many small animals are able to get into
the air by jumping, fast running or by dropping down from trees. Once
air-borne, they recover and stabilize passively or actively and perform goal
directed aerial descent (e.g. gliding frogs, flying geckos, gliding lizards,
locusts, crickets, flying squirrels, gliding fish, gliding ants etc.). These
animals do not use steady state gliding, but change their velocity and angle
of attack dynamically during flight to optimize the trajectory in order to
increase the gliding ratio or land on a spot. The same principles may be
advantageous for small aerial robots as well.
The critical issues on the path towards the realization of an efficient
deploying Microglider at this scale are (i) the trade-off between passive
stability, maneuverability and maximal gliding ratio, (ii) the low Reynolds
number (<10'000) that leads to increased influence of boundary layer effects
and renders the applicability of the conventional and well known large scale
aerodynamics impossible and (iii) the control of the unsteady dynamics
during recovery and flight.
The work in progress addresses these aspects. Embedded mechanisms for
autonomous deployment from ground or walls into the air will be considered
at the next stage.
A miniature 7g jumping robot
- Jumping can be a very efficient mode of locomotion for
small robots to overcome large obstacles and travel in natural, rough
terrain. As the second step towards the realization of the the Self
Deploying Microglider, we present the development and characterization of a
novel 5cm, 7g jumping robot. It can jump obstacles as high as more than 24
times its own size and outperforms existing jumping robots with respect to
jump height per weight and jump height per size. It employs elastic elements
in a four bar linkage leg system to allow for very powerful jumps and
adjustment of jumping force, take off angle and force profile during the
A 1.5g SMA actuated Microglider looking for the Light
- As a first step towards the exploration of gliding as an
alternative or complementary locomotion principle in miniature robotics, we
developed a 1.5g ultra light weight microglider. It is equipped with sensors
and electronics to achieve phototaxis (flying towards the light), which can
be seen as a minimal level of control autonomy. To characterize autonomous
operation of this robot, we developed an experimental setup consisting of a
launching device and a light source positioned 1m below and 4m away with
varying angles with respect to the launching direction. Statistical analysis
of 36 autonomous flights indicate its flight and phototaxis efficiency.
An adaptive wearable device for monitoring sleep and preventing fatigue
- Fatigue is a major source of stress and accidents in
today's world, but there are no objective ways of monitoring and preventing
the build-up of fatigue.
Sleep and wake periods are major factors, but not the only ones, that
contribute to regulate the onset of fatigue. In this project, we start by
developing a non-intrusive, wearable device for monitoring sleep and wake
Since body signals related to sleep and wake are different from person to
person, our device incorporates learning technologies adapted from our work
on autonomous robotics. This allows the device to self-tune to the user.
The output of the sleep/wake device will then be incorporated into a model
of fatigue that takes into account also other body signals and can adapt to
the style and physiology of the user.
A version of the sleep/wake device will be tested within the framework of
Solar Impulse, where the pilot has to be alert during the entire flight,
which can take up to five days and nights. Our device can be used to predict
the pilots fatigue and to calculate his optimal break times, always taking
into account the mission status.
- Pilot Donna - Body Sensing, artistic impression
- The Solar Impulse plane flying above the EPFL campus (fotomontage)
Active Vision Project
- Coevolution of Active Vision and Feature Selection
We show that the co-evolution of active vision and feature selection can
greatly reduce the computational complexity required to produce a given
visual performance. Active vision is the sequential and interactive process
of selecting and analyzing parts of a visual scene. Feature selection
instead is the development of sensitivity to relevant features in the visual
scene to which the system selectively responds. Each of these processes has
been investigated and adopted in machine vision. However, the combination of
active vision and feature selection is still largely unexplored.
In our experiments behavioral machines equipped with primitive vision
systems and direct pathways between visual and motor neurons are evolved
while they freely interact with their environments. We describe the
application of this methodology in three sets of experiments, namely, shape
discrimination, car driving, and robot navigation. We show that these
systems develop sensitivity to a number of oriented, retinotopic,
visual-feature-oriented edges, corners, height, and a behavioral repertoire.
This sensitivity is used to locate, bring, and keep these features in
particular regions of the vision system, resembling strategies observed in
Active Vision and Receptive Field Development
In this project we went one step further and investigated the ontogenetic
development of receptive fields in an evolutionary mobile robot with active
vision. In contrast to the previous work where synaptic weights for both
receptive field and behavior were genetically encoded and evolved on the
same time scale, here the synaptic weights for receptive fields develop
during the life of the individual. In these experiments, behavioral
abilities and receptive fields develop on two different temporal scales,
phylogenetic and ontogenetic respectively. The evolutionary experiments are
carried out in physics-based simulation and the evolved controllers are
tested on the physical robot in an outdoor environment.
Such a neural architecture with visual plasticity for a freely moving
behavioral system also allows us to explore the role of active body movement
in the formation of the visual system. More specifically we study the
development of visual receptive fields and behavior of robots under active
and passive movement conditions. We show that the receptive fields and
behavior of robots developed under active condition significantly differ
from those developed under passive condition. A set of analyses suggest that
the coherence of receptive fields developed in active condition plays an
important role in the performance of the robot.
Omnidirectional Active Vision
The omnidirectional camera is a relatively new optic device that provides a
360 degrees field of view, and it has been widely used in many practical
applications including surveillance systems and robot navigation. However,
in most applications visual systems uniformly process the entire image,
which would be computationally expensive when detailed information is
required. In other cases the focus is determined for particular uses by the
designers or users. In other words, the system is not allowed to freely
interact with the environment and selectively choose visual features.
Contrarily, all vertebrates and several insects -- even those with a very
large field of view -- share the steerable eyes with a foveal region, which
means that they have been forced to choose necessary information from a vast
visual field at any given time so as to survive. Such a sequential and
interactive process of selecting and analyzing behaviorally-relevant parts
of a visual scene is called active vision.
In this project we explore omnidirectional active vision: coupled with an
omnidirectional camera, a square artificial retina can immediately access
any visual feature located in any direction, which is impossible for the
conventional pan-tilt camera because of the mechanical constraints. It is
challenging for the artificial retina to select behaviorally-relevant
features in such a broad field of view.
Active Vision for 3D Landmark-Navigation
Active vision may be useful to perform landmark-based navigation where
landmark relationship requires active scanning of the environment. In this
project we explore this hypothesis by evolving the neural system controlling
vision and behavior of a mobile robot equipped with a pan/tilt camera so
that it can discriminate visual patterns and arrive at the goal zone. The
experimental setup employed in this article requires the robot to actively
move its gaze direction and integrate information over time in order to
accomplish the task. We show that the evolved robot can detect separate
features in a sequential manner and discriminate the spatial relationships.
An intriguing hypothesis on landmark-based navigation in insects derives
from the present results.
The SMAVNET project
Swarming Micro Air Vehicle Networks for Communication Relay
- Big Picture
The SMAVNET project aims at developing swarms of flying robots that can be
deployed in disaster areas to rapidly create communication networks for
rescuers. Flying robots are interesting for such applications because they
are fast, can easily overcome difficult terrain, and benefit from
To make aerial swarming a reality, robots and controllers need to be made as
simple as possible.
From a hardware perspective, robots are designed to be robust, safe,
light-weight and low-cost. Furthermore, protocols and human-swarm interfaces
are developed to allow non-experts to easily and safely operate large groups
From a software perspective, controllers allow flying robots to work
together. For swarming, robots react to wireless communication with
neighboring robots or rescuers (communication-based behaviors). Using
communication as a sensor is interesting because most flying robots are
generally equipped with off-the-shelf radio modules that are low-cost,
light-weight and relatively long-range. Furthermore, this strategy
alleviates the need for position which is required for all existing aerial
swarm algorithms and typically requires using sensors that depend on the
environment (GPS, cameras) or are expensive and heavy (lasers, radars).
- Flying Robots were specifically designed for safe,
inexpensive and fast prototyping of aerial swarm experiments.
They are light weight (420 g, 80 cm wingspan) and built out of Expanded
Polypropylene (EPP) with an electric motor mounted at the back and two
control surfaces serving as elevons (combined ailerons and elevator). The
robots runs on a LiPo battery and have an autonomy of 30 min. They are
equipped with an autopilot for the control of altitude, airspeed and turn
rate. Embedded in the autopilot is a micro-controller that runs a minimalist
control strategy based on input from only 3 sensors: one gyroscope and two
Swarm controllers are implemented on a Toradex Colibri PXA270 CPU board
running Linux, connected to an off-the-shelf USB WiFi dongle. The output of
these controllers, namely a desired turn rate, speed or altitude, is sent as
control command to the autopilot.
In order to log flight trajectories, the robot is further equipped with a u-blox
LEA-5H GPS module and a ZigBee (XBee PRO) transmitter.
- Designing swarm controllers is typically challenging
because no obvious relationship exists between the individual robot
behaviors and the emergent behavior of the entire swarm. For this reason, we
turn to biology for inspiration.
In a first approach, artificial evolution is used for its potential to
automatically discover simple and unthought-of robot controllers. Good
evolved controllers are then reverse-engineered so as to capture the simple
and efficient solutions found through evolution in hand-designed controllers
that are easy to understand and can be modeled. Resulting controllers can
therefore be adapted to a variety of scenarios in a predictable manner.
Furthermore, they can be extended to accommodate entirely new applications.
Reverse-engineered controllers demonstrate a variety of behaviors such as
exploration, synchronization, area coverage and communication relay.
In a second approach, inspiration is taken from ants that can optimally
deploy to search for and maintain pheromone paths leading to food sources in
nature. This is analogous to the deployment and maintenance of communication
pathways between rescuers using the SMAVNET.
- All necessary software and hardware to perform
experiments with 10 flying robots was developed in the scope of this
project. To the best of our knowledge, this setup is the one with the most
flying robots operating outdoors to this day.
For fast deployment of large swarms, input from the swarm operator must be
reduced to a minimum during robot calibration, testing and all phases of
flight (launch, swarming, landing). Therefore, robot reliability, safety and
autonomy must be pushed to a maximum so that operators can easily perform
experiments without safety pilots. In our setup, robots auto-calibrate and
perform a self-check before being launched by the operator. Robots can be
monitored and controlled though a swarm-interface running on a single
The critical issue of operational safety has been addressed by light-weight,
low-inertia platform design and by implementing several security features in
software. Among other things, we looked at mid-air collision avoidance using
local communication links and negotiation of flight altitudes between
robots. By providing a risk analysis for ground impact and mid-air
collisions to the Swiss Federal Office for Civil Aviation (FOCA), we
obtained an official authorization for beyond-line-of-sight swarm operation
at our testing site.
Bio-inspired Vision-based Flying Robots
Applying bio-inspired methods to indoor flying robots for autonomous
- Robotic vision opens the question of how to use
efficiently and in real time the large amount of information gathered
through the receptors. The mainstream approach to computer vision based on a
sequence of pre-processing, segmentation, object extraction, and pattern
recognition of each single image is not viable for behavioral systems that
must respond very quickly in their environments. Behavioral and energetic
autonomy will benefit from light-weight vision systems tuned to simple
features of the environment.
In this project, we explore an approach whereby robust vision-based
behaviors emerge out of the coordination of several visuo-motor components
that can directly link simple visual features to motor commands. Biological
inspiration is taken from insect vision and evolutionary algorithms are used
to evolve efficient neural networks. The resulting controllers select,
develop, and exploit visuo-motor components that are tailored to the
information relevant for the particular environment, robot morphology, and
Evolving Neural Network for Vision-based Navigation
The story started with a non-flying robot. Floreano et al. (2001)
demonstrated the ability of an evolved spiking neural network to control a
Khepera for smooth vision-based wandering in an arena with randomly sized
black and white patterns on the walls. The best individuals were capable of
moving forward and avoiding walls very reliably. However, the complexity of
the dynamics of this terrestrial robot is much simpler than that of flying
devices, and we are currently exploring whether that approach can be
extended to flying robots.
Evolution Applied to Physical Flying Robots: the Blimp
- Evolving aerial robots brings a new set of challenges.
The major issues of developing (evolving, e.g. using goevo) a control system
for an airship, with respect to a wheeled robot, are (1) the extension to
three dimensions, (2) the impossibility to communicate to a computer via
cables, (3) the difficulty of defining and measuring performance, and (4)
the more complex dynamics. For example, while the Khepera is controlled in
speed, the blimp is controlled in thrust (speed derivative) and can slip
sideways. Moreover, inertial and aerodynamic forces play a major role.
Artificial evolution is a promising method to automatically develop control
systems for complex robots, but it requires machines that are capable of
moving for long periods of time without human intervention and withstanding
- Those requirements led us to the development of the Blimp
2 shown in the pictures. All onboard electronic components are connected to
a microcontroller with a wireless connection to a desktop computer. The
bidirectional digital communication with the desktop computer is handled by
a Bluetooth radio module, allowing more than 15 m range. The energy is
provided by a Li-Poly battery, which lasts more than 3 hours under normal
operation, during evolutionary runs with goevo. For now, a simple linear
camera is attached in front of the gondola, pointing forward. We are
currently working on other kinds of micro-cameras. Other embedded sensors
are an anemometer for fitness evaluation, a MEMS gyro for yaw rotation speed
estimate, and a distance sensors for altitude measurements.
Final Goal: an Autonomous Vision-based Indoor Plane
- In order to further demonstrate this concept, we chose
the indoor slow flyers as a well-suited test-bed because of the need for
very fast reactions, low power consumption, and extremely lightweight
equipment. The possibility of flying indoor simplifies the experiments by
avoiding the effect of the wind and the dependence on the weather and allows
for modifying as needed the visual environment. Our new model F2 (picture on
the left) has the following characteristics: bi-directional digital
communication using Bluetooth, overall weight of 30 g, 80 cm wing span, more
than 20 minutes autonomy, 1.1 m/s minimum flight speed, minimum space for
flying of about 7x7 meters, 2 or 3 linear cameras, 1 gyro, 1 2-axis
With respect to the Blimp, that kind of airplanes are slightly faster and
have 2 more degrees of freedom (pitch and roll). Moreover, they are not able
to be evolved in a room. Therefore are we currently working on a robotic
flight simulator (see below). Both physical and simulated indoor slow flyers
are compatible with goevo.
**Initial experiments using optic-flow without evolutionary methods have
been carried out to demonstrate vision-based obstacle avoidance with a
30-gram airplane flying at about 2m/s (model F2, see pictures on the left).
The experimental environment is a 16x16m arena equipped with textured walls.
The behavior of the plane is inspired from that of flies (see Tammero and
Dickinson, The Journal of Experimental Biology 205, pp. 327-343, 2002). The
ultra-light aircraft flies mainly in straight motion while using gyroscopic
information to counteract small perturbations and keep its heading. Whenever
frontal optic-flow expansion exceeds a fixed threshold it engages a saccade
(quick turning action), which consists in a predefined series of motor
commands in order to quickly turn away from the obstacle (see video below).
The direction (left or right) of the saccade is chosen such to turn away
from the side experiencing higher optic-flow (corresponding to closer
Two horizontal linear cameras are mounted on the wing leading edge in order
to feed the optic-flow estimation algorithm running in the embedded 8-bit
microcontroller. The heading control including obstacle avoidance is thus
truly autonomous, while an operator only controls the altitude (pitch) of
the airplane via a joystick and a Bluetooth communication link.
So far, the 30-gram robot has been able to fly collision-free for more than
4 minutes without any intervention regarding its heading. Only 20% of the
time was engaged in saccades, which indicates that the plane flew always in
straight trajectories except when very close to the walls. During those 4
minutes, the aerial robot generated 50 saccades, and covered about 300m in
Robotic Flight Simulator
- A flight simulator based on Webots4 helps us to speed up
evolutionary runs and rapidly (up to 10x faster) test new ideas. Using
OpenGL and ODE (Open Dynamics Engine), Webots4 is able to accurately
simulate 3D motion with physical effects like gravity, inertia, shocks,
friction. Our blimp dynamical model includes buoyancy, drag, Coriolis and
added mass effects (cf. Webots official distribution for a simplified
example of this model). So far, we were able to demonstrate very good
behavioral correspondence between simulated Blimp 2b and its physical
counterpart (see movies below) when evolved with goevo.
At the moment of writing, a simple model of our indoor slow flyer is under
development. Our plan is to have evolution taking place in simulation and
the best-evolved controllers being used to form a small population to be
incrementally evolved on the physical airplane with human assistance in case
of imminent collision. However, we anticipate that evolved neural
controllers will not transfer very well because the difference between a
simulated flyer and a physical one is likely to be quite large. This issue
will probably be approached by evolving hebbian-like synaptic plasticity,
which we have shown to support fast self-adaptation to changing environments
(cf. Urzelai and Floreano, 2000).
