  • Offer Profile
  • AOS Technologies AG is a worldwide leading manufacturer of high speed cameras, high speed streaming systems, fast industrial vision systems offering turn key installations for its broad customer base.

    AOS products are used by leading companies in their industrial applications, by world class automotive manufacturer around the globe, in in-depth research projects of renowned Universities and last but not least serves as THE high speed measurement device in demanding defence applications such as airborne store separation tests.
Product Portfolio
  • HIGH SPEED IMAGING

  • High speed cameras can record the details of fast mechanical movements and play them back in slow motion.

    Whether industrial and research applications where high light sensitivity is required or applications under high g-force and vibration, AOS cameras prove their value by providing crisp clear images in slow motion to the user. Last but not least… good news for your budget. AOS always has an eye on the economics of high speed cameras and is committed to bringing their customers the very best cameras at affordable prices.
      • Hi-G rated cameras

          • C-VIT 1920 x 1080 @ 1000fps

          • C-VIT camera impresses with 2048 x 2048 @ up to 500fps, in 1920 x 1080 @ 1000fps, with built-in battery and up to 10.4GB image memory. Shock resistance up to 150G with spikes up to 200G makes it ideal for any demanding environment.

            Key features
            • Full-HD Format @ up to 1000fps
            • up to 20'000 fps with reduced resolution
          • Micro-G1

          • Micro-G1 sets new standards in size of high speed cameras. The ultra-small size combined with a highly light sensitive sensor of 1920 x 1080 pixels the Micro G1 is ready to mount under tightest space restrictions

            Key features
            • 1920 x 1080 @ 200fps
            • 1280 x 720 @ 500fps
            • 800 x 600 up to 1000fps
            • up to 3000fps @ reduced resolution
          • Q-MIZE HD v2

          • The super-compact Q-MIZE HD v2 camera impresses with HD-TV Format @ up to 1000fps, built-in battery and up to 10GB image memory. It is shock resistant up to 150G with spikes up to 200G and ideal for on-board automotive testing application ('crah tests') where size matters.

            Key features
            • HD-TV Format @ up to 1000fps
            • up to 5000 fps with reduced resolution
          • Q-MIZE

          • The super-compact Q-MIZE camera impresses with a high image resolution of 3MPixel, a max. frame rate of 100'000fps, built-in battery and up to 10GB image memory. It is shock resistant up to 200G and ideal for on-board automotive testing application ('crash tests') where size matters.

            Key features
            • 1300 x 1060 Pixel image resolution up to 1'000fps
            • 900 x 700 Pixel image resolution up to 2'000fps
            • 3 MPixel image resolution up to 500fps
          • S-MIZE HD v2

          • The super-compact S-MIZE HD v2 camera impresses with HD-ready Format @ up to 1000fps, built-in battery and up to 10GB image memory. It is shock resistant up to 150G with spikes up to 200G and ideal for on-board automotive testing application ('crah tests') where size matters.

            Key features
            • HD-ready Format @ up to 1000fps
            • up to 3000 fps with reduced resolution
          • S-MIZE

          • The super-compact S-MIZE camera impresses with an image resolution of 1.3MPixel, built-in battery and up to 10GB image memory. It is shock resistant up to 100G with spikes up to 200G and ideal for on-board automotive testing application ('crah tests') where size matters.

            Key features
            • 1.3 MPixel image resolution up to 500fps
            • 900 x 700 Pixel image resolution up to 1000fps
          • Q-VIT

          • Q-VIT – the ruggedized, compact high speed camera for automotive safety crash testing and harsh industrial as well as research applications. Ultra high image resolution of 3 Megapixels (1696 x 1710 pixels) at 500fps

            Key features
            • 3 MPixel image resolution up to 500fps
            • High light sensitivity
          • S-VIT

          • S-VIT – the ruggedized, compact high speed camera for automotive safety crash testing and harsh industrial as well as research applications. More light sensitive than ever

            Key features
            • 800 x 600 pixel up to 1250fps / 900 x 700 pixel up to 1000fps / 1280 x 1024 up to 500fps
            • High light sensitivity
          • TRI-VIT

          • Rugged, high resolution of 1280 x 1024 @ 1000 images /sec this camera leaves no wish for top end application. The TRI-VIT is designed for high speed camera applications where minimum size maximum performance at a very economical scale is a must

            Key features
            • 1280 x 1024 up to 1000fps / up to 100’000fps with reduced resolution
            • Good light sensitivity
        • Non-High-G rated cameras

            • L-PRI

            • The resolution of 1920 x 1080 pixel with up to 2800fps combined with compact and fanless design makes this camera perfect for any applications. Research, Broadcast, offboard automotive testing, airbag development testing.

              There is almost no limitation in field of application.

              Key features
              • 1920 x 1080 pixel up to 2800 fps
              • up to 82'000 fps with reduced resolution
            • M-PRI

            • When speed meets budget - the M-PRI makes it possible. Stunning 4000fps with a resolution of 1280 x 800 pixel, in a compact camera design along with a state of the art software.

              The high light sensitive camera is suitable for a wide variety of applications.

              Key features
              • 1280 x 800 pixel up to 4000 fps
              • up to 85'366 fps with reduced resolution
            • Q-PRI

            • Q-PRI – the modular, compact high speed camera with ultra-high image resolution of 3MPixels for industrial and research applications. More light sensitive than ever. Its robust, tool-like design make it the ideal camera for the daily use on factory floors..

              Key features
              • 3 MPixel image resolution at 500fps
              • 8 Bit dynamic range
            • S-PRI

            • S-PRI – the modular, compact high speed camera for industrial and research applications. More light sensitive than ever. Its robust, tool-like design make it the ideal camera for the daily use on factory floors..

              Key features
              • Basic resolution of 800 x 600 pixel up to 1250 fps resp. 900 x 700 pixel @ 1000fps
              • Impressive HD format (720p) up to 710fps
            • S-MOTION

            • S-MOTION – the modular, compact high speed camera for industrial and research applications. More light sensitive than ever. Housed in a robust all-aluminium housing, it withstands also rough handling..

              Key features
              • 1280 x 1024 up to 500fps / up to 100’000 with reduced resolution
              • Free adjustment of region of interest (ROI)
          • MIL certified cameras

              • Q-MIZE EM

              • The super-compact Q-MIZE EM camera impresses with a high image resolution of 3MPixel, a max. frame rate of 100'000fps, built-in battery and up to 10GB image memory. It is shock resistant up to 200G, MIL-certified and ideal for airborne applications where size matters.

                Key features
                • 3 MPixel image resolution up to 500fps
                • 1300 x 1060 Pixel image resolution up to 1'000fps
              • S-MIZE EM

              • The super-compact S-MIZE EM camera impresses with a high image resolution of 1.33MPixel, a max. frame rate of 100'000fps, built-in battery and up to 10GB image memory. It is shock resistant up to 100G, MIL-certified and ideal for airborne applications where size matters.

                Key features

                • 1280 x 1024 up to 500fps / up to 100’000 with reduced resolution
                • High light sensitivity
              • Q-EM

              • Whenever the environment of your application is beyond the normal (shocks, vibration, dust etc.) plus ultra-high image resolution is needed, Q-EM is your camera. Its ultra-robust design makes the use of this high speed camera possible where others fail such as airborne store separation tests.

                Key features
                • Extended battery pack for long time autonomous operation (up to 3hrs)
                • Video output SDI or PAL /NTSC
              • S-EM

              • Whenever the environment of your application is beyond the normal (shocks, vibration, dust etc.), S-EM is your camera. Its ultra-robust design makes the use of this high speed camera possible where others fail such as airborne store separation tests.

                Key features
                • 1280 x 1024 up to 500fps / up to 100’000 with reduced resolution
                • High light sensitivity
              • X-EMA

              • Whenever the environment of your application is beyond the normal (shocks, vibration, dust etc.), X-EMA is your camera. Its ultra-robust design makes the use of this high speed camera possible where others fail such as airborne store separation tests.

                Key features
                • 1280 x 1024 up to 500fps / up to 32’000 with reduced resolution
                • Re-chargeable battery built in for true mobile applications and data backup
              • X-TREME

              • X-TREME- This high speed camera is built in a water tight housing and is certified according the toughest MIL 810 / DO standards for military and civil aircrafts.

                Key features
                • 1280 x 1024 up to 500fps / up to 8’000 with reduced resolution
                • Re-chargeable battery
              • H-EM HS

              • Long time high speed recording system for aircraft and component testing

                Key features
                • H-EM 501 High speed streaming cameras:
                  1280x1024 @ 90fps
                  1280x720 @ 125fps
                  640x480 @ 560fps
                • Streaming for hours to airborne controller
            • High Speed Streaming Cameras

            • High speed image streaming system and accessories for industrial process monitoring.
                • PROMON SCOPE G3

                • PROMON SCOPE G3 is a compact, ready-to-use high speed image streaming system with up to two camera heads. Its built-in high capacity solid state disk system records sequences for 40 minutes and recording speeds up to 2000fps.

                  Key features
                  • Two camera, synchronized or independent operation
                  • 40 minutes recording capacity per camera
                  • 80fps at 2048x1088 pixels
                    200fps at 1024x 800 pixels
                    560fps at 640 x 480 pixels
                    max. frame rate of 3000fps



                • PROMON U High Speed Streaming

                • PROMON U cameras in combination with Imaging Studio V4 software allow customers to set up a high speed image recording system on their existing stationary, but also portable computers. The system records directly to the PC's RAM or hard disk for seconds or up to several hours depending on available disk space. The USB 3.0 based High Speed Streaming Camera from AOS Technologies is ideal for price critical applications.

                  Key features
                  • Ultra-small camera head fits into tightest spaces
                  • Single USB3 cable connection
                  • Two in one: high speed camera & streaming system


                • PROMON High Speed Streaming

                • The PROMON cameras in combination with PROMON Studio software allows customers to set up a high speed image recording system on their existing stationary, but also portable computers. The system records directly to the PCs RAM or hard disk for seconds or up to several hours depending on available disk space

                  Key features
                  • Ideal for temporary industrial troubleshooting, setup and fine tuning applications
                  • Compact high speed image streaming system
                  • To be installed on customers existing PC (Laptop- or Desktop)
                • PROMON 12M

                • PROMON 12M is a compact, ready-to-use high speed image streaming system with 4064 x 3072 Pixel @166 fps.

                  Key features
                  • High capacity storage (HPD) available, up to 3.2 TB
                  • Robust transport case
                  • Accessory kit with LED illumination, magic arms
                  • Motion analysis software with automatic tracking features
                • PROMON Wireless Remote Controller

                • For applications where high speed streaming under harsh environments is required, AOS now provides a wireless remote streaming controller. The fanless IP65 rated controller houses a high performance CPU and a SSD drive to store the streaming data. A PROMON 501 camera is connected to the controller via a single cable. The wireless remote streaming controller is accessed via WLAN connection from your Android tablet or iPad. The tablet has full control over the camera and can setup the recording. Sequences can be downloaded from the controller to an external hard drive via USB 3.0 or Gigabit Ethernet.

                  Key features
                  • deal where cable access is limited
                    IP67 rated controller
                  • Compact, fanless operation
                  • 24V tolerant trigger input
                • PROMON - Customized

                • A powerful yet easy to operate software package, allowing you to setup your own high speed image streaming systems by using existing PC and cameras. Ideal for system integrators.

                  Key features
                  • Individual recording time - your choice
                  • Up to 4 cameras per system - your choice
                  • Camera type(s) and model(s) - your choice
                  • System configuration - your choice

              • AOS Imaging Studio v4

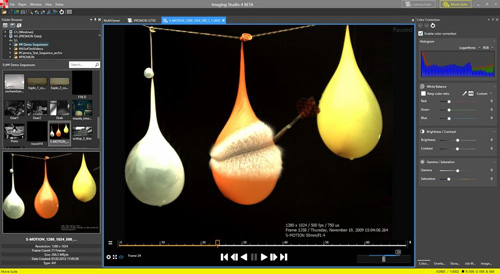

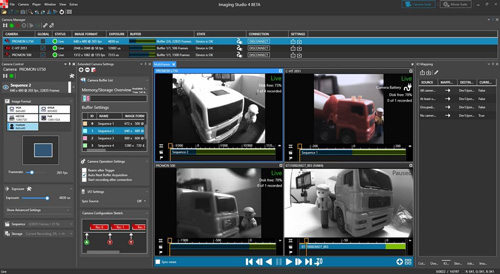

              • AOS Technologies AG Imaging Studio v4 (AISv4) is an integrated and comprehensive software suite, easy to operate yet powerful.

                AISv4 combines the latest programing technology with the experience of being the market leader in the high-speed imaging for years. Its sophisticated user interface offers a complete new workflow and understanding of operating high-speed cameras. Control and save all the application relevant camera and recording parameters, including multiple motion detection areas, auto shutter settings and multi buffer features – per camera! Control mixed setups with conventional self-contained high-speed cameras and high-speed streaming cameras.

                Key features
                • Control streaming and self-contained high-speed camera with the same software on the same controller at the same time
                • Simultaneous control of multiple cameras (Global Command)
                • Multi Buffer feature with an unlimited number of buffers with different recording parameters
                • Export and Import Camera settings
                • Export and Import Overlay settings
                • Setup, Record, Edit and Export your recordings – all with AISv4
                • Place a region of interest anywhere on the sensor by having full control over X- and Y- offset
                • Job Manager - export your recordings to RAW4 and AVI at the same scheduled time
                • Multi-Motion Detection, as trigger or event marker
                • Auto exposure, free definable ROI and controls
                • Camcorder mode, use the high-speed streaming camera like a camcorder
                • Multi language support (English, German, French, Chinese, Korean, Portuguese, Spanish)
                • Trigger to picture – auto save an image when trigger button is pressed
                • Open various sequences, synchronize them to the trigger frame and control them all synchronously - easy comparison of time shifted recordings
                • Insert your company logo and export the edited sequence as a AVI for further use
                • "Point and Click" measurement, crosshair and grid overlay
                • Application Specific Cameras

                • High speed camera for special applications
                      • S-Blast and Q-Blast

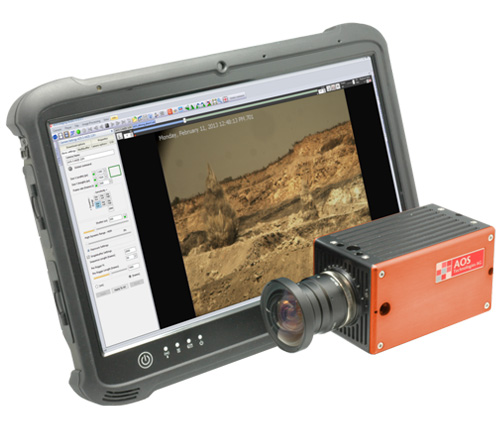

                      • S-Blast and Q-Blast are suited for all applications in the harsh mining and blasting industry

                        Key features
                        • Small compact and battery operated
                        • Designed for harsh environments. Sealed camera
                        • HD-TV Format @ up to 1000fps
                        • Re-chargeable battery built in for up to 3hrs operation
                        • Motion Analysis Software included
                  • LED Lights

                  • LED illumination is the way for a cost efficient, reliable and long life solution for all kinds of illumination in high speed imaging.

                    AOS is offering suitable lights for specific applications. These lights have been testet with AOS cameras and are recommended by AOS.
                      • A-LED High Power LED Lights

                      • The AOS LED lights are solid built ultra-bright LED lights for application where flexible lighting solutions under economic considerations are required. The heart and core of these lights are ultra-bright LED clusters combined with state of the art control electronic. The A-LED W150 can run in continuous mode as well as in strobed mode synchronized to a high-speed camera. Further, the light offers remote on functionality where access to the light is limited.
                      • AOS general LED illumination

                      • For all application where general illumination is required this LED light serves its purpose efficient and reliable. The light comes with mounting possibilities on tripods as well as additional threads for mounting on custom specific structures. The light is IP66 rated and comes with power supply and cables.


                      • A-LED 2500 Battery operated on-board StrobeLight

                      • A-LED 2500 is a battery operated on-board proof LED light system for continuous or strobed illumination. The controller with the built in battery accepts up to 4 individual small LED heads with 150 Watts each. The controller is ready to provide constant light output or may be synchronized to the strobe signal of high speed cameras. In addition, A-LED 2500 offers remote on function via a simple switch closing contact to for easy operation in places hard to reach.
                      • AOS onboard LED lights

                      • When there is need for light in tough applications our economical on-board illumination is of great help. In addition a 100g tested onboard battery is available as well
                    • Accessories

                    • For all our cameras, we do provide accessories making your job easier taking less energy to make a good recording.
                        • High G Camera Hub

                        • Our new Gigabit Ethernet High-G rated camera hub serves as central connection in on-board applications. All cameras connected to the hub are phase locked (synchronized) and by connecting the trigger to the high-G hub all cameras receive the trigger simultaneously
                        • Imaging Studio with Motion Analysis

                        • All AOS cameras come with the powerful “Imaging Studio” Software. This easy to use yet comprehensive software is used for setting up the connected cameras with the parameters required; plays back the film after capture and of course convert the sequences to major standard movie formats such as avi, mpeg, mpg4 and most single image formats. Optional,the software now comes with the powerful built in TEMA starter Motion Analysis package.
                        • C-F-Mount Adapter

                        • New high speed cameras with high image resolution / large image sensors need suitable lenses with a large image diameter to avoid vignetting. Lenses made for DSLR-cameras would be an ideal fit (wide selection, wide zooming range, inexpensive, easily available), however most of those lenses have no iris ring anymore to manually step down the aperture. The CMT lens adapter features a mechanical iris ring to set the lens aperture to any desired value.
                        • Sub Sea Housing

                        • For application under water, in harsh, wet and muddy environment AOS offers a complete set including camera housing and light containers all mounted on a solid frame. The user can interface via cabling, securely embedded in sea water proof hoses, with all devices under water and does have a life view of the scene. Custom adaption for specific needs are offered on a very cost efficient base.
                        • Crash cage - protection for lenses

                        • Do you need a specific lens in your application? Do you want to use KOWA / Richo or other brand lenses lenses in high-g applications?
