  • Offer Profile
  • FEIG ELECTRONIC – Hightech for highest efficiency

    For more than 50 years, FEIG ELECTRONIC is a development partner and specialist in contactless Identification (RFID), electronic control systems, traffic sensor systems and payment terminals. Based in Weilburg, Germany and with a workforce of around 400, the company contributes to advancements in technology with innovative solutions for a wide range of applications and industries.

Product Portfolio
  • WELCOME TO IDENTIFICATION

  • Non-contact identification with RFID: safe and reliable, developed and manufactured in Germany. This is what FEIG ELECTRONIC has represented for over 25 years. We are among the few companies that offer readers and antennas for all three frequency ranges with passive transponder technology: LF (125 kHz), HF (13.56 MHz) and UHF (860-960 MHz). In addition to our comprehensive range, we also develop individual solutions – just ask us.
      • STATIONARY READERS

      • Stationary readers from FEIG are designed for access control applications. In addition to these elegant readers, which have won awards for design, we also offer robust UHF long-range reader models for industrial use with reading ranges of up to 16 m.
          • ID ZK: STAND-ALONE ACCESS CONTROL TERMINAL

          • 125kHz stand-alone access control terminal for one door, turnstile or barrier.

            • Dimensions: 113x83x24,5mm (LxBxH)
            • with integrated antenna
            • Allows optional the connection of an external antennae.
            • Power supply:12-24V DC o. 12-15V AC
            • Transponder: Hitag 1,S; SOKYMAT; EM; etc.

            Example of use:
            • Stand-alone access control terminal

            Special features:
            • Each identity card can be programmed and erased separately
            • Compact construction and easy installation
            • Suitable for outdoors and indoors
            • Stores up to 200 user transponders
            • ReadOnly (RO)- and Read/Write (RW)-transponders can be used

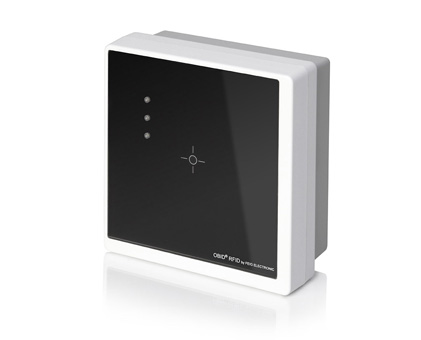

          • ID RW02.10: LF PROXIMITY CARD READER

          • 125 kHz Proximity multi-tag card reader

            • 84.2 x 84.2 x 22.0 mm (LxBxH) Card Reader
            • 77.7 x 77.7 x 18.0 mm (LxBxH) Wall-mounted housing
            • Integrated antenna
            • Interfaces
            • Version AD: RS232; Data/clock (Wiegand)
            • Version B: RS485
            • Power supply: 12-24V AC/DC
            • Transponders: for example, HITAG S, HITAG 1 and HITAG 2 from NXP, 555x from Temic, Unique and Q5 from Sokymat, EM 4001, EM 4002, EM 4022, EM 4102, etc.

            Example applications:
            • Access control
            • Time attendance
            • Charging systems, etc.

            Special features

            • Suitable for indoor and outdoor use (IP54)
            • Software update can be achieved without dismantling the reader
          • ID RWA02.10: LF PROXIMITY CARD READER

          • WITH CONFIGURED OFFLINE OPERATIONAL MODE

            125kHz proximity multitag-reader


            • 84.2 x 84.2 x 22 mm (3.33 x 3.33 x 0.87 in) reader
            • 77.7 x 77.7 x 18 mm (3.07 x 3.07 x 0.71 on) surface spacer
            • with integrated antenna
            • Interfaces:
            • Version -A RS232
            • Version -B RS485
            • Powersupply: 12-24V AC/DC
            • Supported transponders: RO (H4001, H4002, H4022, H4102, Unique, Q5, e5555, …) and RW (HITAG 1, HITAG S,...)

            Example of use:
            • Access control
            • Time-managment systems
            • Payment-systems

            Special Features:
            • in- and outdoor usable (IP54)
            • the reader has it´s own local intelligence, the most important functions of the reader can be configured to support an offline operational mode
            • the reader can be used within OBID megalock applications, too
            • Software updates without unmounting of the reader possible
          • ID CPR02.10: HF CARD READER

          • 13.56 MHz Proximity Multitag Card Reader

            • 84.2 x 84.2 x 22 mm (3.33 x 3.33 x 0.87 in) Card Reader
            • 77.7 x 77.7 x 18 mm (3.07 x 3.07 x 0.71 on) Wall-mounted housing
            • with integrated antenna

            • Interfaces:
            Version -A RS232; data/clock (Wiegand)
            Version -B RS485
            Powersupply: 12-24V AC/DC
            Transponders: ISO14443-A, ISO14443-B, ISO15693, NFC

            Example of use:
            • Access controll
            • Time attendance

            Special Features:
            • indoor and outdoor use (IP54)
            • supports NFC applications
          • ID CPR.03.20: HF CARD READER FOR ACCESS CONTROL SYSTEMS WITH IP65

          • 13.56 MHz Read-only Card Reader

            • Dimensions: 120 x 75 x 16mm (HxWxD)
            • Integrated Antenna
            • Interface: Data/Clock (Magnetic card- / Wiegand emulation), RS232-TTL
            • Power Supply: 9-12 DC

            Supported Transponders:
            • ISO 14443-A
            • ISO 14443-B
            • ISO 15693

            Application Examples:
            • Access Control
            • Time Attendance
          • ID CPR50.10: HF CARD READER

          • FOR IP-BASED ACCESS CONTROL SYSTEMS

            13.56 MHz Proximity Multitag Card Reader

            • 84.2 x 84.2 x 22 mm (3.33 x 3.33 x 0.87 in) Card Reader
            • 77.7 x 77.7 x 18 mm (3.07 x 3.07 x 0.71 on) Wall-mounted housing
            • with integrated antenna
            • Interface: Ethernet 10BASE-T / 100BASE-TX
            • Power supply: Power over Ethernet (PoE)
            • Transponders: ISO14443-A, ISO14443-B, ISO15693, NFC

            Example of use:
            • Access controll
            • Time attendance
            • Ticketing

            Special Features:
            • encrypted data transfer via Ethernet
            • Operation modes "Polling Mode" and "Notification Mode"
            • indoor and outdoor use (IP54)
            • supports NFC applications
            • optional available: external relay
          • ID MAX50.10: HF STAND ALONE TERMINAL

          • FOR IDENTIFICATION OF MIFARE TRANSPONDERS

            RFID Card Reader, Door Controller and Access Controller in one device

            • 84,2 x 84,2 x 22 mm  Card Reader
              77,7 x 77,7 x 18 mm  Wall-mounted housing
            • Integrated antenna
            • Interface: Ethernet 10BASE-T / 100BASE-TX, Automatic MDI/MDI-X Crossover correction, TCP/IP protokol, IPv4
            • Supply voltage: Power over Ethernet (PoE); alternative: ext. power supply 24V up to 48V DC +/-10%

            Application focus:

            Use in industrial and commercial installations as a part of a complex access control system with widely distributed access points. Furthermore it can also be used for single doors in small and medium-sized installations.

            Features:

            • Offline management of more than 5.000 access permissions (Stand-alone operation)
            • AES-encrypted Ethernet-Data transfer
            • Multi-tag card reader (ISO 14443-A/-B and ISO 15693)
            • Identification via serial number or freely configurable data area
            • Real time clock & time zones
            • Configurable event memory

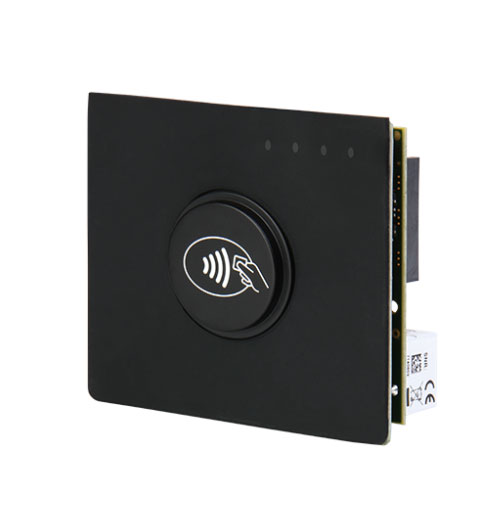

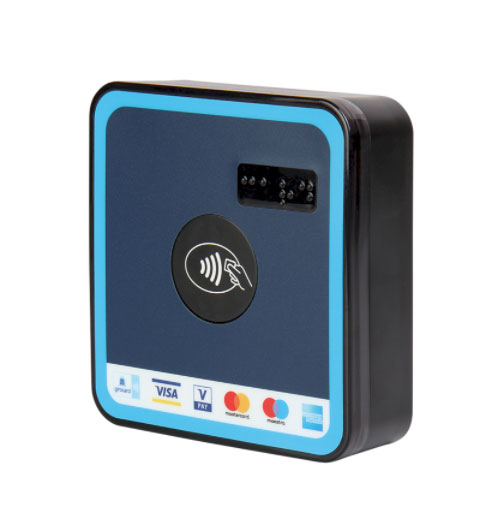

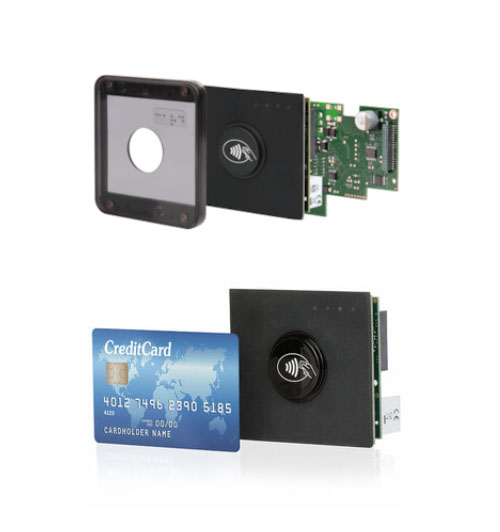

          • ID CPR46.10: ROBUST HF CARD READER

          • FOR FLUSH MOUNTING IN FRONT PANELS OF METAL

            Features:

            • Designed for flush mounting in front panels of metal
            • Compliant to EMVCo Contactless Level 1
            • IP65 protected front
            • IK 10 vandalism proof rating
            • 4 SAM sockets (ID CPR46.10-4SUSB)

            Example applications:

            • ATMs
            • Vending machines
            • Ticket machines
            • Kiosk systems
            • Charging stations

            Special features:

            • Data traffic between reader and host is AES256 encrypted
            • Automatic power management and ultra-low standby power consumption: ideal for solar or battery-powered machines and terminals.

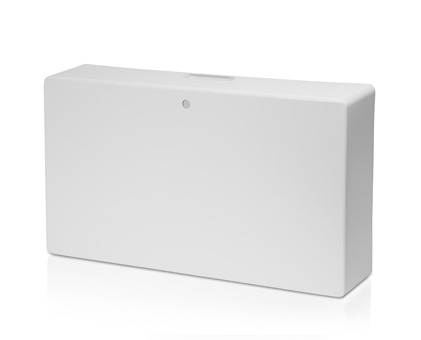

          • ID ISC.LR1002: HF LONG RANGE READER, STANDARD

          • for identification of 13.56 MHz transponders
            • dimensions 255x135x65mm / 10.04 x 5.31 x 2.56 inch (WxHxD)
            • suitable antennas:
            • ID ISC.ANT310/310 loop Antenna
            • ID ISC.ANT800/600-DA Loop Antenna
            • interfaces: RS232, USB, Ethernet (TCP/IP)
            • supply voltage: 24 V DC
            • transponders: ISO15693 & HF Gen 2, ISO18000-3 Mode1 & Mode 3

            Examples of use:
            • document tracking
            • shipment tracking
            • rental applications
            • logistics applications

            Special Features:
            • Transmitting power up to 5 W adjustable
            • Buffered Read Mode / Notification Mode / Scan Mode

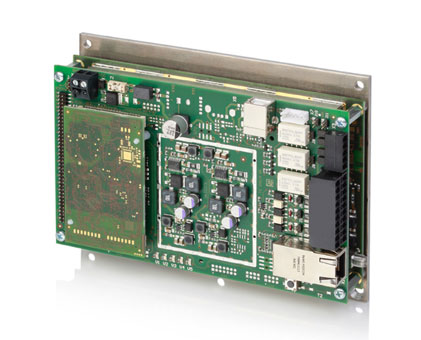

            • also available as reader module
            • approval according to ETSI and FCC
          • ID ISC.LR2500: HF LONG RANGE READER, PREMIUM

            • Dimensions 180 x 320 x 110mm / 7.09 x 12.59 x 4.33 inch (WxHxD)

            • Suitable antennas:
              ID ISC.ANT310/310 Loop Antenna
              ID ISC.ANT800/600-DA Loop Antenna
            • Interfaces: RS232, RS485, USB 2.0, Ethernet (TCP/IP), USB port for WLAN dongle or memory stick
            • Supply voltage: 24 V DC
            • Transponders: ISO15693, ISO18000-3-Mode1

            Application Examples:
            • Document tracking
            • Tracking & Tracing
            • Rental applications
            • Supply Chain Applications
            • Maufacturing
            • Automation

            Special features:
            • Anti-collision function
            • FEIG ISO Host Mode
            • Buffered Read Mode (BRM)
            • Notification Mode
            • Scan Mode

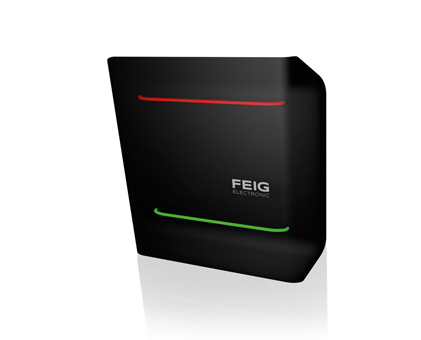

          • ID LRU500i: UHF COMPACT READER WITH INTEGRATED ANTENNA AND SIGNAL LIGHT

          • SMALL AND POWERFUL UHF RAIN RFID LONG RANGE READER FOR VEHICLE ACCESS CONTROL

            UHF Compact Reader with integrated antenna and signal light

            Ideal solution for vehicle identification and parking access control applications in airports, universities, gated communities and others.

            Special features:

            • Circular-polarized antenna for any transponder orientation
            • 1 externeal antenna port for 2-lane applications
            • Up to 10 m read range for Automatic Vehicle Identification (AVI)
            • Robust and compact housing for outdoor use (IP67)
            • Integrated signal light (red/green)
            • Secure Key Storage for application keys
            • Fast and easy mounting and installation
            • Up to 2 WERP transmitting power
            • Also available as stand alone version ID MAX.U500i with integrated Access Controller
          • ID MAX.U500i: UHF VEHICLE ACCESS CONTROL READER WITH INTEGRATED ANTENNA AND SIGNAL LIGHT

          • WITH INTEGRATED ACCESS CONTROLLER FOR STAND ALONE OPERATION

            UHF Vehicle Access Controll Reader with integrated antenna, signal light and Access Controller

            The ideal Stand alone-solution for vehicle identification and parking access control applications in airports, universities, gated communities and others.

            Special features:

            • Combination of UHF Long Range Reader with integrated antenna and Access Controller
            • Management of more than 4.000 access permissions
            • Simultaneous monitoring of up to 2 lanes with read ranges up to 10 m
            • Non-volatile event memory, buffered real time clock and Teach-in-mode
            • Anti-Passback
            • Integrated signal light (red/green)
            • Secure Key Storage (Secure Element)
            • Fast and easy mounting and installation
            • PoE and USB interface

            Also available for the reader: the software myAXXESS Manager for managing access authorizations for persons and vehicles in one and the same project.

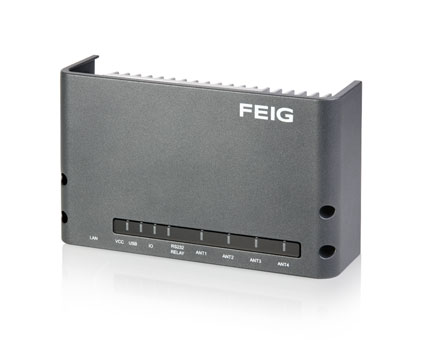

          • ID ISC.LRU1002: UHF LONGE RANGE READER, STANDARD

          • for identification of UHF transponders (860-960 MHz)

            • Dimensions: 260 x 157 x 65 mm (10.23 x 6.18 x 2.56 inch)
            • Connection of up to 4 antennas
            • Interfaces: RS232, Ethernet, USB, Wiegand
            • Power supply: 24V DC +/- 5%
            • Supported transponders: All EPC compliant UHF transponders including EPC C1G2

            Fields of application:

            • Retail
            • Industrial
            • Logistics
            • Automatic Vehicle Identification (AVI)
            • Road Tolling
            • Automotive
            • Traffic Monitoring & Traffic Management Systems
            • Parking Slot Management
            • Laundry Services
            • Waste Management

            Features:

            • Robust metal housing for use in industrial environment
            • 2 Watt output power
            • Reading ranges of up to 12 m
            • 4 antenna ports (internal Multiplexer)
            • 6 Inputs / Outputs
            • Secure key storage (Secure Element)
            • Full support of new transponder chips with encryption (NXP UCODE DNA)
            • Support of EPC Low Level Reader Protocol (LLRP) with software library
            • Output of RSSI values and phase angle
          • ID MAX.U1002: UHF VEHICLE ACCESS CONTROL READER

          • Fields of application:

            • Vehicle access control for cars and trucks
            • Pulse generator for opening industrial gates
            • Parking management
            • Perimeter Protection

            Features:

            • Combination of RFID Reader and Access Controller with read ranges of up to 12 meters
            • Management of more than 4.000 access permissions
            • Anti Passback
            • Secure Key Store (Secure Element)
            • Simultaneous monitoring of up to 2 lanes
            • Quick update of authorization data via Ethernet interface
            • Non-volatile event memory
            • Buffered real time clock

            Also available for the reader: the software myAXXESS Manager for managing access authorizations for persons and vehicles in one and the same project.

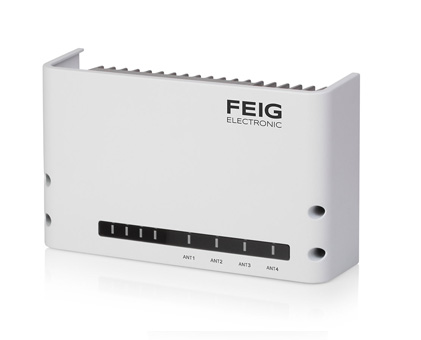

          • ID ISC.LRU3x00: UHF LONGE RANGE READER, PREMIUM

          • for identification of UHF transponders (860-960 MHz)

            • Dimensions: 260 x 157 x 65 mm (10.23 x 6.18 x 2.56 inch))
            • Connection of up to 4 antennas
            • Interfaces: RS232/485, Ethernet, USB, USB host for WLAN dongle or memory stick
            • Power supply: 24V DC +/- 5% or Power over Ethernet (PoE)
            • Supported transponders: EPC C1G2
            • Optional: ISO 18000-6-C (Upgrade-Code necessary)

            Fields of application:

            • Retail
            • Industry
            • Logistics

            Features:

            • Reading ranges of up to 16 m
            • Supports UCODE DNA transponders
            • Supports EPC Low Level Reader Protocol (LLRP)
            • Power over Ethernet (PoE)
            • 4 Antenna Port Indicators
            • Linux Operating system
            • 4 different operation modes

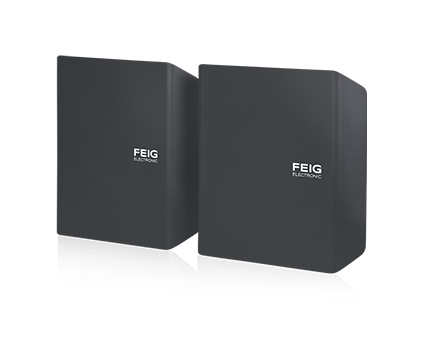

          • ID ISC.ANT.U500/270-DM: UHF DIRECTIONAL READER SOLUTION

          • UHF Directional Reader Solution

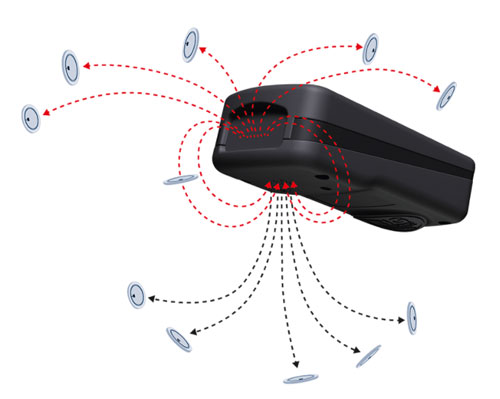

            The modern designed reader with integrated antenna allows Transponder Direction Detection in several applications.

            Features:

            • Excellent RFID Performance
            • Transponder Direction Detection
            • Reader and Antenna in one housing
            • Modern Design
            • Optocoupler input and output
            • Different Mounting Solutions
            • Flexible IT Integration
            • Easy Installation
            • International Approvals

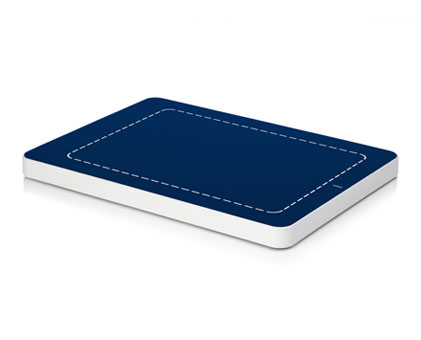

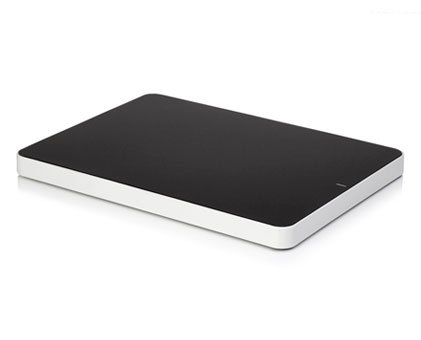

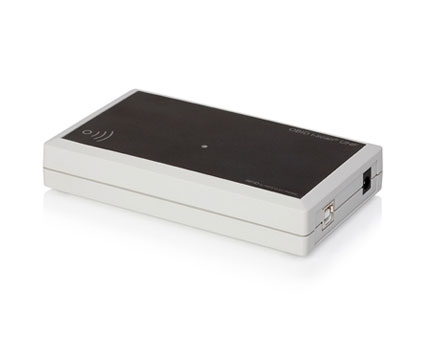

        • DESKTOP READERS

        • FEIG desktop readers are installed on a PC, allowing them to be used at the point of sale – at pay desks, reception desks, distribution counters etc. The USB variants offer fast data transfer and easy, reliable integration in external systems with a PC/SC driver.
            • ID RW40.30: LF DESKTOP READER

            • 125kHz proximity multitag-reader

              • 144 x 84 x 18 mm (5.69 x 3.30 x 0.71 in)
              • with integrated antenna
              • Interface: USB Full-Speed (12 MBit/s)
              • Powersupply: 5 V, USB Bus powered
              • Transponders: e.g. HITAG S, HITAG 1 and HITAG 2 by NXP, 555x byTemic, Unique and Q5 bySokymat, EM 4001, EM 4002, EM 4022, EM 4102 etc.

              Example of use:
              • Ticketing
              • Payment systems
            • ID RWA40.30: LF DESKTOP READER WITH CONFIGURABLE OFFLINE MODE

            • 125kHz proximity multitag-reader

              • 144 x 84 x 18 mm (5.69 x 3.30 x 0.71 in)
              • with integrated antenna
              • Interface: USB Full-Speed (12 MBit/s)
              • Powersupply: 5 V, USB Bus powered
              • Transponders: e.g. HITAG S, HITAG 1 and HITAG 2 by NXP, 555x byTemic, Unique and Q5 bySokymat, EM 4001, EM 4002, EM 4022, EM 4102 etc.

              Example of use:
              • Especially designed for applications with the electronic locker systems OBID megalock
              • Ticketing
              • Payment systems
            • ID CPR30: ISO14443/ISO15693 DESKTOP READER

            • For identification using 13.56MHz transponders

              • 144 x 84 x 18mm (LxBxH)
              • Integrated antenna
              • Interface: USB 2.0
              • Power supply: 5 V, USB bus powered
              • Transponder: ISO15693, ISO14443-A/-B

              Example applications:
              • ID of records and documents
              • ID of rental items
              • Libraries

              Special features:
              • Anti-collision function
              • Polling mode
            • ID CPR40.30: ISO14443 DESKTOP READER

            • Special Features:
              • Dimensions: 144 x 84 x 18mm (5.69 x 3.30 x 0.71 inch)
              • Integrated antenna
              • PC/SC driver USB
              • Interfaces: RS232 or USB Full Speed (12 Mbits/s)
              • Supply voltage: 5V, USB Bus powered
              • Supported transponders: ISO 14443-A/-B
              • Two SAM sockets at ID CPR40.30-SUSB
              • Design-awarded housing
              • Supports NFC applications

              Fields of application:
              • ePayment
              • Loyalty Card systems
              • Ticketing
            • ID ISC.PR101: ISO15693 PROXIMITY DESKTOP READER

            • For Identification of 13.56 MHz Transponders

              • Dimensions: 145x85x31mm / 3.35 x 4.72 x 1.77 inch (WxHxD)
              • With Integrated Antenna
              • Interface: RS232 / RS485
              • Supply Voltage: Typical 12 V DC
              • Maximum 12-24V DC +/- 15%
              • Transponder: ISO15693, ISO18000-3-Mode1

              Example of Use:
              • document tracking
              • rental applications
              • library applications

              Special Features:
              • Anticollision Function
              • Scan Mode, FEIG ISO Host Mode
            • ID ISC.MR102ISO 15693 MID RANGE READER

            • FOR CONNECTING EXTERNAL ANTENNAS

              for identification of 13.56 MHz transponders

              • dimensions 145 x 85 x 31mm / 4.72 x 3.35 x 1.77 inch (WxHxD)
              • possible Antennas: Pad-Antenna 340/240 (Office) or Loop-Antenna 310/310 (Industrial)
              • Interface: Ethernet (TCP/IP)
              • Supply voltage: typical 12...24 V DC or Power over Ethernet
              • Transponders: ISO15693, ISO18000-3-Mode1

              Examples of use:
              • document tracking
              • rental applications
              • libraries

              Special features:
              • Anti-collision funktion
              • Scan Mode, FEIG ISO HOST Mode, Notification Mode
            • UHF MID RANGE READER

            • WITH INTEGRATED MULTIPLEXER

              for Identification of UHF transponders (865-960 MHz)
              • Read range up to 4 m
              • Integrated antenna
              • integrated multiplexer
              • 3x SMA antenna connector
              • Configurable output power
              • Available as Ethernet, USB and RS232 variant
              • Supports DHCP and TCP hostname
              • Supports EPC Low Level Reader Protocol (LLRP) via LLRP library
              • International certifications

              Fields of application:
              • Process control
              • Automatisation
              • Single work stations for example in the pharmaceutical and textile industry
          • MOBILE RFID-/BARCODE SCANNERS

          • The RFID / barcode scanners are available as rugged and compact handheld devices or as wearable devices. Main fields of application are applications in logistics and transport, asset tracking, healthcare, e-ticketing and job calculation as well as in the context of Industry 4.0
              • HyWEAR compact: HYBRID BARCODE & RFID WEARABLE

              • HyWEAR compact is a hybrid Barcode & RFID Wearable, that makes manual material handling processes more efficient by freeing both hands to perform work. This reduces processing time per unit compared with conventional scanners or handheld RFID devices. HyWEAR compact connects directly with the next available WiFi access node and its exchangeable battery with high capacity powers the device for the duration of a working shift.

                Fields of application:

                • Warehouse distribution
                • Manufacturing
                • Distribution
                • Parcel services
                • Baggage handling at airports
                • Waste disposal services

                Special features:

                • Combination of compact RFID & Barcode device and comfortable, fingerless glove
                • Ergonomic and easy to use, usable with and without gloves underneath
                • Housed in a pouch, the device is protected and does not scratch other products or surfaces
                • State-of-the-art wireless technology (Bluetooth, WiFi 2.4 GHz / 5 GHz with roaming function)
                • 2 buttons on the device for various configuration options
                • Highly visible feedback LEDs, buzzer and vibration feedback
                • Exchangeable secondary battery with high capacity

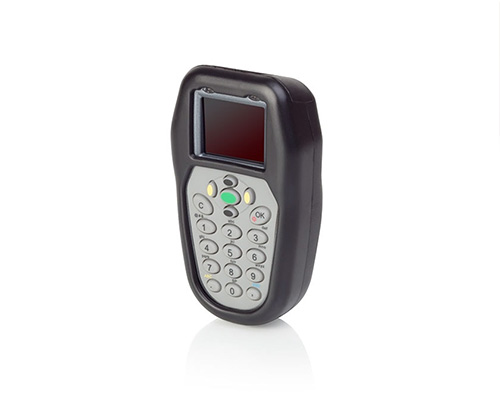

              • SCANNDYbasic: BARCODE-SCANNER

              • SCANNDYbasic is about the size of a remote control and weighs just 140g, making it easy to carry anywere. Through its robust, protective rubber cover it survives the roughest work environments.

                Fields of Application:

                • Logistics & Transport
                • Asset Tracking
                • E-Ticketing
                • Job calculation

                Special Features:

                • Perfect connection by integrated Middleware / EMMware
                • Robust housing for use in harsh environments
                • Embedded LINUX system
                • OLED-Color-Display
                • Alphanumeric 19 key keyboard
                • Also available as "SCANNDYgun Barcode only" with gun grip

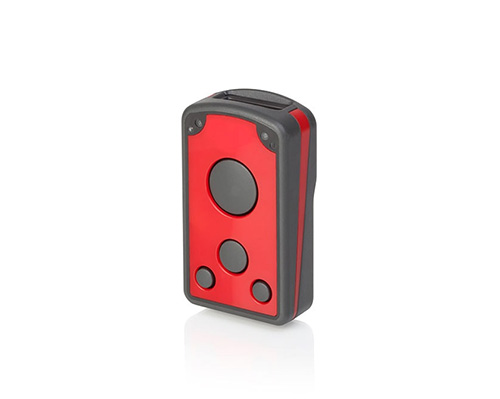

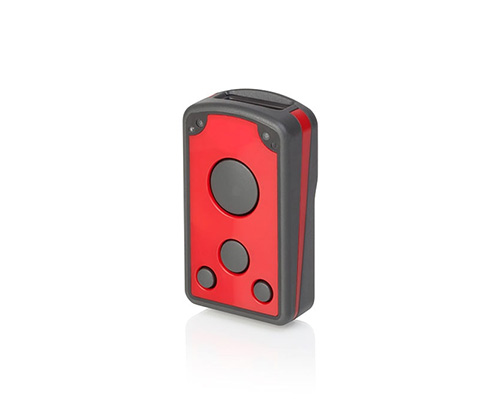

              • ECCO:Optimo / Lite: COMPACT AND ROBUST BARCODE SCANNER

              • ECCO is a firm Barcode Scanner which is still comfortably to handle even with the thickest working gloves. Its big battery ensures the completion of a long working shift with no need to recharge the battery.
                Four transparent freely programmable buttons and its changeable front cover for individual inscription makes it unique.
                The ECCO scanner series is available in the variants ECCO:Optimo and ECCO:Lite

                Fields of Application:

                • Time Tracking
                • Enterprise Resource Planning
                • Inventory
                • Logistics & Transport

                Special Features:

                • Ergonomic, small and lightweight
                • Perfect connection by integrated middleware / EMMware
                • Robust housing for use in harsh environments
                • Bluetooth communication
                • iOS (MFI) certification / compatible with Android
                • Individual front cover

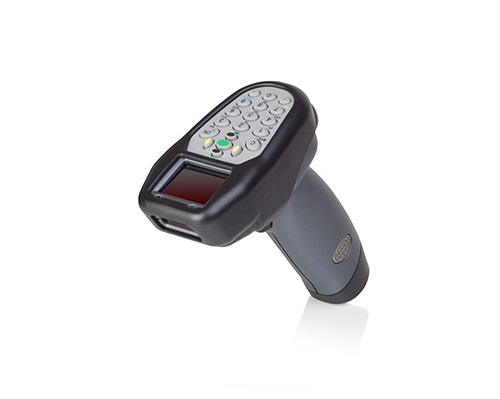

              • SCANNDYgun Barcode only: BARCODE SCANNER WITH GUN GRIP AND A BIG TRIGGER BUTTON

              • SCANNDYgun is the advancement of the basic variation and designed for the daily continuous performance in logistics and Industry. Its ergonomic gun grip with a big trigger button allows comfortable capturing even after countless scanned barcodes. Through its professional construction SCANNDYgun captures barcode labels pinpointed and the productivity rises.

                Working over the head to achieve the AutoID codes at hardly approachable places SCANNDYgun is the data capturing professional for special assignments. An optional available docking station allows to use the mobile data collector as a stationary device with cable connection.

                Fields of Application:

                • Gun grip and a big trigger button
                • Logistics & Transport
                • Asset Tracking
                • E-Ticketing
                • Job calculation

                Special Features:

                • Ergonomic gun grip and big trigger button
                • Perfect connection by integrated Middleware / EMMware
                • Robust housing for use in harsh environments
                • Embedded LINUX system
                • OLED-Color-Display
                • Alphanumeric 19 key keyboard
              • ECCO+: COMPACT AND ROBUST RFID-/BARCODE SCANNER

              • ECCO+ is a firm RFID-/Barcode Scanner which is still comfortably to handle even with the thickest working gloves. Its big battery ensures the completion of a long working shift with no need to recharge the battery.
                Four transparent freely programmable buttons and its changeable front cover for individual inscription makes it unique.

                Fields of Application:

                • Time Tracking
                • Enterprise Resource Planning
                • Inventory
                • Logistics & Transport

                Special Features:

                • Modules for RFID (HF or UHF) and Barcode (1D, 2D)
                • Perfect connection by integrated middleware / EMMware
                • Easy and individual Master Setup of the 4 operation keys
                • Robust housing for use in harsh environments
                • Embedded LINUX system
                • Bluetooth / WiFi communication
                • Individual front cover
                • certified in 58 countries

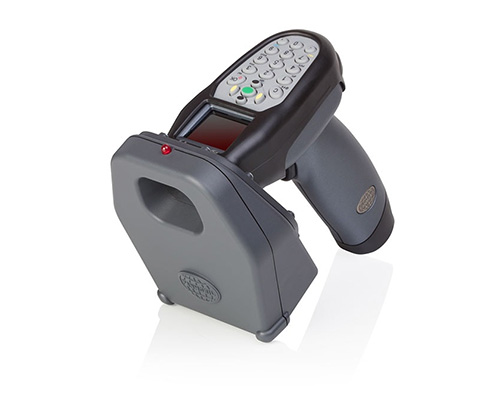

              • SCANNDYgun: RFID-/BARCODE SCANNER WITH GUN GRIP AND A BIG TRIGGER BUTTON

              • SCANNDYgun is the advancement of the basic variation and designed for the daily continuous performance in logistics and Industry. Its ergonomic gun grip with a big trigger button allows comfortable capturing even after countless scanned barcodes. Through its professional construction SCANNDYgun captures barcode labels and RFID tags pinpointed and the productivity rises.

                Working over the head to achieve the AutoID codes at hardly approachable places SCANNDYgun is the data capturing professional for special assignments. Through its extensive accessory like its Long-Range RFID antenna or docking station, with which the mobile data collector can be used stationary and with cable connection, SCANNDYgun becomes an irreplaceable AutoID tool.

                Fields of Application:

                • Gun grip and a big trigger button
                • Logistics & Transport
                • Asset Tracking
                • E-Ticketing
                • Job calculation

                Special Features:

                • Modules for RFID (HF, UHF) and Barcode (1D, 2D)
                • Perfect connection by integrated Middleware / EMMware
                • Robust housing for use in harsh environments
                • Embedded LINUX system
                • Bluetooth / WiFi communication
                • OLED-Color-Display

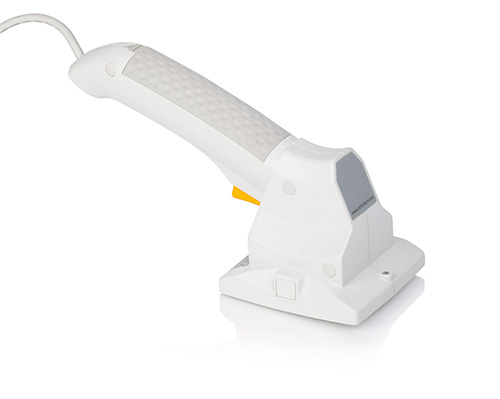

              • ID ISC.PRH101:HF HAND-HELD READER

              • For Identification of 13.56 MHz Transponders

                • Dimensions: 230x80x100 mm / 9.06 x 3.94 x 3.15 inch (WxHxD)
                • With Integrated Antenna
                • Interface: USB (12 Mbit)
                • Power Supply: USB High Powered Interface
                • Transponder: ISO15693, ISO18000-3-Mode1

                Example of Use:

                • document tracking
                • rental applications
                • library applications

                Special Features:

                • Anti-collision function
                • Scan Mode, FEIG ISO HOST Mode

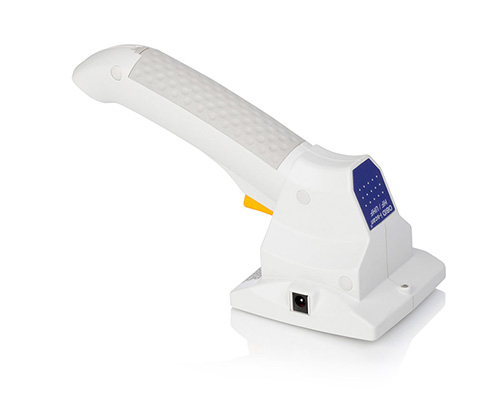

              • ID ISC.PRHD102: HF / UHF HAND-HELD READER

                • 230x80x100 mm (WxDxH)
                • Two integrated antennas (HF and UHF)
                • Interfaces: Bluetooth (Serial Port Profile) or USB
                • Power supply:
                  Bluetooth variant: Rechargable accumulators (4x AA - NimH)
                  USB variant: USB - High Powered Interface
                • Supported transponders: ISO15693, EPC Gen2 (optional ISO 18000-6-C)

                Examples of use:

                • Single workstations
                • Goods inward inspection
                • Inventory

                Features:

                • Low Power Mode for limitation of reading range
                • Anti-collision function
                • Scan Mode / FEIG ISO HOST Mode
            • MODULES

            • FEIG reader modules are integrated in handheld units and a wide range of terminals. Approximately a dozen different modules are currently available. These vary in terms of operating frequencies, interfaces, power supply, RF transmission power, and the number of available / optional SAM (Security Access Module) sockets.
                • ID RW01: LF PROXIMITY READER MODULE

                • 125kHz proximity read and write module

                  • dimensions: 90x47x11,6mm (LxWxH)
                  • with integrated antenna
                  • interfaces: RS232; data/clock
                  • powersupply: 5V DC
                  • Supported transponders: RO (H4001, H4002, H4022, H4102, Unique, Q5, e5555, …) and RW (HITAG 1, HITAG 2, HITAG S,...)

                  Examples of use:
                  • operation data acquisition
                  • time registration
                  • ticketing and charging systems

                  Special Features:
                  • easy integration
                  • variable interfaces
                  • Krypto - function possible
                  • multitag functionality
                • ID CPR74: ISO14443 / ISO15693 PROXIMITY READER MODULE WITH 4 SAM SOCKETS

                • 13,56 MHz Proximity Read-/Write device

                  • Dimensions: 50 x 68 x 10 mm (8 mm for variant without SAM sockets) (WxHxD)
                  • Operation with integrated and external antenna (integrated multiplexer)
                  • => Two reading points in one device
                  • Interfaces: RS232-TTL; USB Full Speed
                  • Power supply: 5V DC +/- 5%
                  • Supported transponders: ISO 14443, ISO 15693, ISO 18000-3M3

                  Typical applications:
                  • Ticketing
                  • ePayment
                  • Public transport systems (e.g. VDV core application)
                  • Supports NFC applications

                  Features:
                  • Sockets for 4 Security Access Modules (SAM)
                  • Prepared for EMVCo Contactless Level 1 certification
                  • Integrated High Level support for mifare DESFire and mifare PLUS
                • ID ISC.M02-M8: ISO15693 PROXIMITY READER MODULE WITH INTEGRATED 8 TIMES MULTIPLEXER

                • For Identification of 13.56 MHz Transponders

                  • 87x50x14mm / 3.43 x 1.97 x 0.55 inch (WxHxD)
                  • Integrated Multiplexer
                  • Connection of up to 8 external 50Ohm antennas
                  • Interface: RS232-TTL
                  • Supply Voltage : 24V DC +/-10%
                  • Transponders: ISO15693, ISO18000-3-Mode1

                  Examples of use:

                  • terminals
                  • medical devices


                  Special features:
                  • Anticollision Function
                  • RSSI Data Readout
                • ID ISC.MRM102: ISO15693 MID RANGE READER MODULE

                • For identifying 13.56 MHz transponders

                  • 145x85x31 mm (LxWxH)
                  • Possible antennas: ID ISC.ANT340/240 pad antenna (office)
                  • or ID ISC.ANT310/310 antenna (industry)
                  • Interface: Ethernet (TCP/IP)
                  • Voltage supply: 12...24 V DC or Power over Ethernet
                  • Transponder: ISO15693, ISO18000-3-Mode1

                  Examples of use:

                  • Identification of files and documents
                  • Identification of rented goods
                  • Libraries

                  Special features:
                  • Anti-collision function
                  • Scan mode, FEIG ISO HOST mode, notification mode
                • ID ISC.LRM1002: ISO15693 LONG RANGE READER MODULE, STANDARD

                • for identification of 13.56 MHz transponders
                  • dimensions 120x160x35mm / 4.72 x 6.29 x 1.38 inch (WxHxD)
                  • suitable antennas:
                  • ID ISC.ANT310/310 loop Antenna
                  • ID ISC.ANT800/600-DA Loop Antenna
                  • interfaces: RS232, USB, Ethernet (TCP/IP)
                  • supply voltage: 24 V DC
                  • transponders: ISO15693 & HF Gen 2, ISO18000-3 Mode1 & Mode 3

                  Examples of use:
                  • document tracking
                  • shipment tracking
                  • rental applications
                  • logistics applications

                  Special Features:
                  • Transmitting power up to 5 W adjustable
                  • Buffered Read Mode / Notification Mode / Scan Mode
                  • also available as housing reader
                  • approval according to ETSI and FCC
                • ID ISC.MU02.02: UHF SHORT RANGE READER MODULE

                  • 50 x 50x 14 mm (WxHxD)
                  • integrated Multiplexer
                  • 2 antenna outputs
                  • 4 different interfaces
                  • low power consumption
                  • Transponder: EPC Class1 Gen2
                  • Perfect addition: Module Antenna ID ISC.ANT.U75/50

                  Applications:
                  • Integration into Handhelds and printers
                  • Integration into access control terminals
                  • Use as desktop reader after integration into an appropriate housing

                  Features:
                  • Shut Down-Pin
                  • Several Power Modes
                • ID ISC.MRMU102: UHF MID RANGE READER MODULE WITH INTEGRATED MULTIPLEXER

                • for Identification of UHF transponders (865-960 MHz)

                  • Read range up to 4 m
                  • Integrated antenna
                  • integrated multiplexer
                  • 3x SMA antenna connector
                  • Configurable output power
                  • Available as Ethernet, USB and RS232 variant
                  • Supports DHCP and TCP hostname
                  • Supports EPC Low Level Reader Protocol (LLRP) via LLRP library
                  • International certifications

                  Fields of application:

                  • Process control
                  • Automatisation
                  • Single work stations for example in the pharmaceutical and textile industry
              • ANTENNAS

              • The FEIG antenna range includes compact antenna circuit boards for integration in terminals or medical devices, handheld and pad antennas, and various UHF antennas for applications such as incoming goods checks and toll systems.

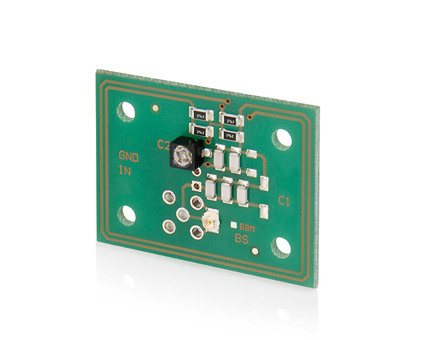

                  • ID ISC.ANT40/30: HF ANTENNA FOR PROXIMITY READER MODULES

                  • 13.56 MHz proximity write/read boards

                    • Dimensions: 50x50x14 mm (HxWxD)
                    • Option of integrated or external antenna
                    • Interfaces: USB; RS232; RS232-TTL; data/cycle; Wiegand
                    • Voltage supply: 3.3 V or 5 V
                    • Transponder: ISO 14443-A/-B e.g. MIFARE, MIFARE ultra light, my-d proximity
                    • For operation with ISO15693 transponders, the ISO14443/ISO15693 boards ID CPR.M02.VP/AB-B and/or BA and ID CPR.M02.VP/AB-C and/or CA are also available

                    https://www.feig.de/en/products/identification/product/id-iscant100100/ Examples of use:
                    • Ticketing
                    • ePayment
                    • eDocument (ePassport, eVisa...)
                    • Access control
                    • Electronic management of fares
                    • Supports NFC applications

                    Special features:
                    • Command queue to significantly shorten communication cycles
                    • Supports Part 4 of ISO 14443 as standard

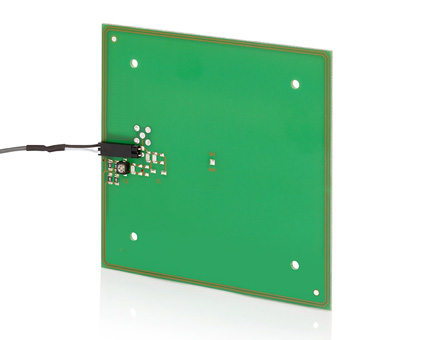

                  • ID ISC.ANT100/100: HF ANTENNA FOR PROXIMITY READER MODULES

                  • for operating frequency of 13.56 MHz

                    • Dimensions: 100 x 100 (WxH)
                    • Connection via 2 pin connector or U.FL connector
                    • Suitable for operation with the following HF Reader modules:

                      - ID CPR74
                      - ID ISC.M02-M8
                      - ID ISC.MRM102
                  • HF ANTENNA

                  • WITH MANUAL ALIGNMENT AND IP65

                    suitable for Mid Range- and Long Range Applications
                    • Dimensions: 318 x 338 x 30mm / 12.4 x 13.18 x 1.17 inch (LxWxD)
                    • works with all Mid Range Readers, all Long Range Readers
                    • Antenna connection: Koax cable RG58, SMA plug

                    Features:
                    • Transmitting power up to 8 W
                    • Protection class IP65
                    • Manual alignment electronics for optimal adjustment to different surrounding conditions
                  • ID ISC.ANT340/240: HF PAD ANTENNA

                  • suitable to every desk or other document tracking issues

                    • dimensions: 337x237x8,3mm / 13.26 x 9.33 x 0.32 inch (WxHxD)
                    • works with every Mid Range Reader of our product range with a maximum transmitting power of 1 W
                    • Antenne Connection: RG58 koax-cabel, SMA-connector

                    Special Features:
                    • designed for desktop applications
                  • ID ISC.ANTH200/200: HF HAND-HELD ANTENNA

                    • dimensions: 460x200x160mm / 18.11 x 7.87 x 6.3 inch (WxHxD)
                    • works with each Mid Range Reader of our product range
                    • antenna connection: SMA-Connector (50 Ohm)

                    Special Features:
                    • reading range between 30 and 40 cm
                    • 3.6 m connecting cable
                  • ID ISC.ANTS370/270: SHIELDED HF PAD ANTENNA

                    • Dimensions: 376 x 276 x 27mm (LxBxH)
                    • Suitable readers: ID ISC.MR102 sowie dessen Vorgänger ID ISC.MR101
                    • Antenna connection: Coaxial cable RG58 with SMA plug; approx. 230 mm long
                    • 1 LED to indicate the current operation status

                    Features:
                    • More than 30 cm read range
                    • Modern design
                    • No tag reading outside of the antenna area
                    • Optical Feedback via LED
                    • No detuning of the antenna when installing on metal or rather conductive material
                    • Available as external antenna or with integrated reader as ID ISC.SPAD102
                  • ID ISC.ANT800/600: HF ANTENNA

                  • FOR DYNAMIC TUNING AND IP65

                    suitable to long range applications

                    • dimensions: 851x620x38mm (LxWxH)
                    • suitable readers: ID ISC.LR200 Long Range Reader, ID ISC.LRM200 Long Range Reader Module
                    • antenna connection: RG58 koax-cabel, SMA connector

                    Special features:
                    • operational area in- and outdoor
                    • dynamic tuning possible
                  • ID ISC.ANT.U75/50: UHF ANTENNA

                  • FOR SHORT RANGE READER MODULES

                    for UHF operating frequencies from 865 - 928 MHz

                    • 75x50x3mm (WxHxD)
                    • for operation with UHF Reader module ID ISC.MU02.02
                    • connection via U.FL plug 50 Ω

                    Special features:
                    • Near field antenna with linear far field characteristics (antenna works with near field transponders as well as far field transponders)
                  • ID ANT.U290/290: ROBUST UHF ANTENNA CIRCULAR 65°

                  • Circular polarized antenna for UHF operating frequencies between 865-928 MHz

                    • Dimensions: 288 mm x 288 mm x 65 mm
                    • compatible readers:
                      ID LRU500i-EU/-FCC UHF Compact Reader
                      ID MAX.U500i-EU/-FCC UHF Vehicle Access Control Reader
                      ID ISC.LRU1002-EU/-FCC UHF Long Range Reader
                      ID ISC.LRU3000-EU/-FCC UHF Long Range Reader
                      ID ISC.LRU3500-EU/-FCC UHF Long Range Reader
                      ID ISC.MRU102-EU/-FCC UHF Mid Range Reader
                      ID ISC.MRMU102-EU/-FCC UHF Mid Range Reader Module
                    • Antenna connection: Koax cable (H155) RG58, TNC socket

                    Special features:

                    • Circular polarization for optimized reading performance
                    • IP65 for outdoor applications
                    • Robust and high-quality design
                    • TNC connectors
                    • VESA connection
                    • Secundary safety (optional)
                  • ID ANT.U580/290: ROBUST UHF ANTENNA CIRCULAR 30°

                  • Circular polarized antenna for UHF operating frequencies between 865-928 MHz

                    • Dimensions: 576 mm x 288 mm x 80 mm
                    • compatible readers:
                      ID LRU500i-EU/-FCC UHF Compact Reader
                      ID MAX.U500i-EU/-FCC UHF Vehicle Access Control Reader
                      ID ISC.LRU1002-EU/-FCC UHF Long Range Reader
                      ID ISC.LRU3000-EU/-FCC UHF Long Range Reader
                      ID ISC.LRU3500-EU/-FCC UHF Long Range Reader
                      ID ISC.MRU102-EU/-FCC UHF Mid Range Reader
                      ID ISC.MRMU102-EU/-FCC UHF Mid Range Reader Module
                    • Antenna connection: Koax cable (H155) RG58, TNC socket

                    Special features:

                    • Circular polarization for optimized reading performance
                    • IP65 for outdoor applications
                    • Robust and high-quality design
                    • TNC connectors
                    • VESA connection
                    • Secundary safety (optional)
                    • 30° beam width, particularly suitable for vehicle identification and Free Flow Tolling systems
                  • ID ISC.ANT.U170/170: UHF LONG RANGE ANTENNA CIRCULAR 85°

                  • Circular polarized antennas for UHF operating frequencies between 865-870 MHz

                    • Dimensions: 170x170x25mm (WxHxD)
                    • compatible readers:
                    • ID ISC.LRU1002-EU UHF Long Range Reader
                    • ID ISC.LRU3000-EU UHF Long Range Reader
                    • ID ISC.LRU3500-EU UHF Long Range Reader
                    • ID ISC.MRU102-EU Mid Range Reader
                    • ID ISC.MRMU102-EU Mid Range Reader Module
                    • Antenna connection: Koax cable (H155) RG58, SMA socket

                    Special Features:
                    • Optimized for operation in Europe (865-870 MHz)
                    • Two antenna cables lengths available (2 m and 6 m)
                    • Mounting set for easy installation available
                  • ID ISC.ANT.U270/270: UHF LONG RANGE ANTENNA CIRCULAR 65°

                  • Circular polarized antennas for UHF operating frequencies between 860-960 MHz

                    Dimensions: 270x270x57mm (WxHxD)
                    compatible readers:
                    ID ISC.LRU1002-EU/-FCC UHF Long Range Reader
                    ID ISC.LRU3000-EU/-FCC UHF Long Range Reader
                    ID ISC.LRU3500-EU/-FCC UHF Long Range Reader
                    ID ISC.MRU102-EU/-FCC Mid Range Reader
                    ID ISC.MRMU102-EU/-FCC Mid Range Reader Module
                    Antenna connection: Koax cable (H155) RG58, SMA socket

                    Special Features:
                    • Optimized for operation in Europe (865-870 MHz)
                    • Two antenna cables lengths available (2 m and 6 m)
                    • Mounting set for easy installation available




                  • ID ISC.ANT.U600/270: UHF LONG RANGE ANTENNA CIRCULAR 30°

                  • Circular polarized antennas for UHF operating frequencies between 860-960 MHz

                    • Dimensions: 590x270x57mm (WxHxD)
                    • compatible readers:
                    • ID ISC.LRU1002-EU/-FCC UHF Long Range Reader
                    • ID ISC.LRU3000-EU/-FCC UHF Long Range Reader
                    • ID ISC.LRU3500-EU/-FCC UHF Long Range Reader
                    • ID ISC.MRU102-EU/-FCC Mid Range Reader
                    • ID ISC.MRMU102-EU/-FCC Mid Range Reader Module
                    • Antenna connection: Koax cable (H155) RG58, SMA socket

                    Special Features:
                    • Two antenna cables lengths available (2 m and 6 m)
                    • Mounting set for easy installation available
                • GATES

                • HF gate antennas from FEIG permit passage widths of up to 160 cm and are mainly used in libraries, in commerce, and at major events for visitor identification. The use of multiplexers allows the gates to be easily cascaded.

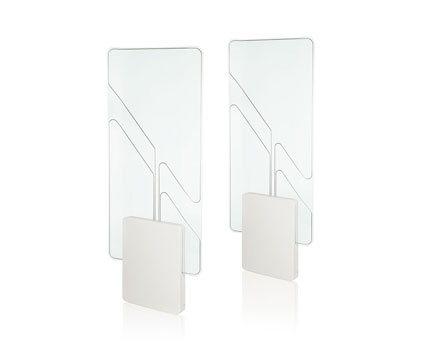

                    • ID ISC.ANT1710/690: HF GATE ANTENNA, CRYSTAL GATE EXCELLENCE

                      • Dimensions: 698 x 1710 x 71 mm +/- 3 mm (BxHxT)

                      Features:

                      • Excellent RFID performance up to 1.60 m
                      • Cost-effective solution
                      • Transparent Design
                      • Easy Installation
                      • Automatic Antenna Tuner
                      • Integrated Radar People Counter
                      • Flexible IT Integration
                      • International Approvals

                      Variants:

                      • ID ISC.ANT1710/690-A Crystal Gate Excellence (Base) with integrated Long Range Reader Module ID ISC.LRM2500, Multiplexer and People Counter
                      • ID ISC.ANT1710/690-B Crystal GateExcellence

                      Optional functions:

                      • People Counter can be extended to 6 passages
                      • Base cover in custom colors
                      • Mounting plate for quick assembly / disassembly on special floors
                    • ID ISC.ANT1710/690: HF GATE ANTENNA, CRYSTAL GATE

                    • Dimensions: 682 x 1710 x 72 mm +/- 5 mm (BxHxT)

                      Features:

                      • Cost-effective solution with excellent identification rate
                      • Transparent Design
                      • Easy Installation
                      • Integrated Radar People Counter
                      • Flexible IT Integration
                      • International Approvals

                      Variants:
                      Standard Antennas

                      • ID ISC.ANT1710/690-A Crystal Gate Standard (Base) with integrated Long Range Reader Module ID ISC.LRM2500 and Multiplexer
                      • ID ISC.ANT1710/690-B Crystal Gate Standard

                      Optional functions:
                      • People Counter can be extended to 6 passages
                      • Mounting plate for quick assembly / disassembly on special floors
                    • ID ISC.ANT.U500/270: UHF GATE ANTENNA

                    • Dimensions: 682 x 1710 x 72 mm +/- 5 mm (BxHxT)

                      Features:

                      • Cost-effective solution with excellent identification rate
                      • Transparent Design
                      • Easy Installation
                      • Integrated Radar People Counter
                      • Flexible IT Integration
                      • International Approvals

                      Variants:
                      Standard Antennas

                      • ID ISC.ANT1710/690-A Crystal Gate Standard (Base) with integrated Long Range Reader Module ID ISC.LRM2500 and Multiplexer
                      • ID ISC.ANT1710/690-B Crystal Gate Standard

                      Optional functions:
                      • People Counter can be extended to 6 passages
                      • Mounting plate for quick assembly / disassembly on special floors
                  • WELCOME TO CONTROLLER

                  • TST stands for gate control technology and describes a line division, which has been existing since the seventies.

                    Beside gate control units also control units for barrier systems has been developed and today the TST-division is presenting itself as a complete product program of control units, impulse generators (induction loop detectors and micro wave motion detectors) and electronics for security devices.

                    Single devices or modules, standard devices or individual manufactured custom-made solutions: all products are harmonized to each other and especially made for gate and barrier system.

                      • CONTROLLERS WITH FREQUENCY CONVERTER

                          • TST FUZ2-A: 1-PHASE DOOR CONTROL UNIT (110V-240V) FOR DOOR OPERATORS UP TO 0.75 KW (5A)

                          • UP TO 60% DUTY CYCLE, 24 VOLT POWER SUPPLY (250MA)

                            Special features:
                            • Smooth starting and braking offers maximum material protection and a long product life cycle
                            • Fast startup speeds processes and reduces waiting times
                            • Easy installation due to extensive pre-settings for standard door systems and self-learning automatic configuration
                            • Model inspected safety conception
                            • Slot for radio receiver module
                          • TST FUZ2-C: 1-PHASE DOOR CONTROL UNIT (110V-240V) FOR DOOR OPERATORS UP TO 0.75 KW (5A)

                          • UP TO 60% DUTY CYCLE, 24 VOLT POWER SUPPLY (500MA), EXTENDED CONNECTION POSSIBILITIES

                            Special features:
                            • Smooth starting and braking offers maximum material protection and a long product life cycle
                            • Fast startup speeds processes and reduces waiting times
                            • Easy installation due to extensive pre-settings for standard door systems and self-learning automatic configuration
                            • Clearly visible diagnostic display
                            • Model inspected safety conception
                            • Slots for additional modules
                            • Also available
                            • as module on change frame
                            • in large plastic housing with main switch and change frame
                          • TST FUZ2-CX: 1-PHASE DOOR CONTROL UNIT (110V-240V) FOR DOOR OPERATORS UP TO 1.2 KW (8A)

                          • UP TO 60% DUTY CYCLE, 24 VOLT POWER SUPPLY (500MA)

                            Special features:
                            • Smooth starting and braking offers maximum material protection and a long product life cycle
                            • Fast startup speeds processes and reduces waiting times
                            • Easy installation due to extensive pre-settings for standard door systems and self-learning automatic configuration
                            • Clearly visible diagnostic display
                            • Model inspected safety conception
                            • Slots for additional modules
                            • Also available
                            • as module on change frame
                            • in large plastic housing with main switch and change frame
                          • TST FUZ2-CXGH: 1-PHASE DOOR CONTROL UNIT (110V-240V) FOR DOOR OPERATORS UP TO 1.2 KW (8A)

                          • UP TO 60% DUTY CYCLE, 24 VOLT POWER SUPPLY (500MA)

                            Special features:
                            • Smooth starting and braking offers maximum material protection and a long product life cycle
                            • Fast startup speeds processes and reduces waiting times
                            • Easy installation due to extensive pre-settings for standard door systems and self-learning automatic configuration
                            • Easy Change Frame for simple exchange of control units
                            • Clearly visible diagnostic display
                            • Model inspected safety conception
                            • Slots for additional modules
                          • TST FUZ2-LGH: 1-PHASE DOOR CONTROL UNIT (110V-240V) FOR DOOR OPERATORS UP TO 1.5 KW (10A)

                          • 100% DUTY CYCLE, 24 VOLT POWER SUPPLY (500MA)

                            Special features:

                            • Smooth starting and braking offers maximum material protection and a long product life cycle
                            • Fast startup speeds processes and reduces waiting times
                            • Easy installation due to extensive pre-settings for standard door systems and self-learning automatic configuration
                            • Clearly visible diagnostic display
                            • Model inspected safety conception
                            • Slots for additional modules
                          • TST FUF2-AH: 1-PHASE DOOR CONTROL UNIT (110V-240V) FOR DOOR OPERATORS UP TO 0.75 KW (5A)

                          • 100% DUTY CYCLE, 24 VOLT POWER SUPPLY (3500MA), MONITORED 24 VOLT BRAKE

                            Special features:

                            • Electronics on change frame for variable mounting in various housings (e.g. stainless steel housing for food industry)
                            • Easy installation in each housing by constant connection diagram (Plug & Play)
                            • 2 slots for radio and loop detector
                            • safe 24 V brake control with monitoring according to EN 13849
                            • Also available
                            • as module on change frame
                            • in steel or stainless steel housing
                          • TST FUF2-CH: 1-PHASE DOOR CONTROL UNIT (110V-240V) FOR DOOR OPERATORS UP TO 1.5 KW (10A)

                          • 100% DUTY CYCLE, 24 VOLT POWER SUPPLY (3500MA), MONITORED 24 VOLT BRAKE

                            Special features:

                            • Electronics on change frame for variable mounting in various housings (e.g. stainless steel housing for food industry)
                            • Easy installation in each housing by constant connection diagram (Plug & Play)
                            • 2 slots for radio and loop detector
                            • safe 24 V brake control with monitoring according to EN 13849
                            • Also available
                            • as module on change frame
                            • in steel or stainless steel housing
                          • TST FUF2-FH: 1-PHASE DOOR CONTROL UNIT (110V-240V) FOR DOOR OPERATORS UP TO 2.2 KW (12A)

                          • 100% DUTY CYCLE, 24 VOLT POWER SUPPLY (3500MA), MONITORED 24 VOLT BRAKE

                            Special features:

                            • Electronics on change frame for variable mounting in various housings (e.g. stainless steel housing for food industry)
                            • Easy installation in each housing by constant connection diagram (Plug & Play)
                            • 2 slots for radio and loop detector
                            • safe 24 V brake control with monitoring according to EN 13849
                            • Also available
                            • as module on change frame
                            • in steel or stainless steel housing
                          • TST FU3F-AH: 3-PHASE DOOR CONTROL UNIT (3×200V-480V) FOR DOOR OPERATORS UP TO 2.2 KW (5A)

                          • 100% DUTY CYCLE, 24 VOLT POWER SUPPLY (3500MA), MONITORED 24 VOLT BRAKE

                            Special features:

                            • Electronics on change frame for variable mounting in various housings (e.g. stainless steel housing for food industry)
                            • Easy installation in each housing by constant connection diagram (Plug & Play)
                            • 2 slots for radio and loop detector
                            • safe 24 V brake control with monitoring according to EN 13849
                            • Also available
                            • as module on change frame
                            • in steel or stainless steel housing
                          • TST FU3F-CH: 3-PHASE DOOR CONTROL UNIT (3×200V-480V) FOR DOOR OPERATORS UP TO 4 KW (10A)

                          • 100% DUTY CYCLE, 24 VOLT POWER SUPPLY (3500MA), MONITORED 24 VOLT BRAKE

                            Special features:

                            • Electronics on change frame for variable mounting in various housings (e.g. stainless steel housing for food industry)
                            • Easy installation in each housing by constant connection diagram (Plug & Play)
                            • 2 slots for radio and loop detector
                            • safe 24 V brake control with monitoring according to EN 13849
                            • Also available
                            • as module on change frame
                            • in steel or stainless steel housing
                          • TST FU3F-FH: 3-PHASE DOOR CONTROL UNIT (3×200V-480V) FOR DOOR OPERATORS UP TO 5 KW (12A)

                          • 100% DUTY CYCLE, 24 VOLT POWER SUPPLY (3500MA), MONITORED 24 VOLT BRAKE

                            Special features:

                            • Electronics on change frame for variable mounting in various housings (e.g. stainless steel housing for food industry)
                            • Easy installation in each housing by constant connection diagram (Plug & Play)
                            • 2 slots for radio and loop detector
                            • safe 24 V brake control with monitoring according to EN 13849
                            • Also available
                            • as module on change frame
                            • in steel or stainless steel housing
                          • TST FUZ2-B: 1-PHASE DOOR CONTROL UNIT (110V-240V) FOR DOOR OPERATORS UP TO 0.75 KW (5A)

                          • UP TO 60% DUTY CYCLE, 24 VOLT POWER SUPPLY (500MA)

                            Special features:

                            • Smooth starting and braking offers maximum material protection and a long product life cycle
                            • Fast startup speeds processes and reduces waiting times
                            • Easy installation due to extensive pre-settings for standard door systems and self-learning automatic configuration
                            • Allows parallel operation of 2 barriers or doors (e.g. double-leaf folding doors)
                            • 2 safety edge evaluators integrated ex works
                            • Slots for radio, induction loop detector or safety edge evaluator
                        • CONTROLLERS WITH CONTACTOR-TYPE REVERSER

                            • TST WU: DOOR CONTROL UNIT (400V) FOR OPERATING WITH ELECTRONICAL LIMITS

                            • FOR AC DRIVES UP TO 2.2KW, 100% DUTY CYCLE, 24 VOLT POWER SUPPLY (500MA)

                              Special features:

                              • Easy installation due to self learning automatic configuration and pre-settings for standard door systems
                              • Highest flexibility by various possibilities for parameter adjustment – to handle without any additional module!
                              • Electronical or mechanical limit switches
                              • Module slots for radio receiver and induction loop detectors

                              Optional:
                              • In-/output extension for locks or traffic light-/oncoming traffic control
                              • Plain text display
                            • TST WUI: BARRIER CONTROL UNIT (400V) FOR OPERATING WITH ELECTRONICAL LIMITS

                            • FOR AC DRIVES UP TO 2.2KW, 100% DUTY CYCLE, 24 VOLT POWER SUPPLY (500MA)

                              Special features:
                              • Intelligent unit for safety on the barrier, positioning and functionality
                              • Highest flexibility by various possibilities for parameter adjustment – to handle without any additional module!
                              • Electronical or mechanical limit switches
                              • Module slots for radio receiver and induction loop detectors
                              • From the outside visible diagnostic display for direct support by phone or on site

                              Optional:
                              • In-/output extension for locks or traffic light-/oncoming traffic control
                              • Plain text display
                          • SENSORS

                          • FEIG ELECTRONIC offers with the new loop detector VEK MNE1/MNE2 a device with three fundamental innovations.

                            The detector appears in a new design, is significantly faster than its predecessor and offers an USB interface for connection to a PC, Notebook or Tablet-PC.

                            Using the free diagnostic and service software from FEIG, the existing configuration of the detector can be shown and, if necessary, changed on site easily and conveniently.

                              • VEK MNE1 / MNE2: 1- / 2 CHANNEL LOOP DETECTOR FOR VEHICLE DETECTION

                              • WITH USB PORT FOR USE OF MODERN DIAGNOSTIC AND SERVICE SOFTWARE

                                1/2-channel loop detector in plastic housing with USB port.

                                Special features:

                                • USB port for use of modern diagnostic and service software
                                • New hardware platform for higher detection speed and flexibility
                                • Automatic calibration when switching on or resetting
                                • Connection via 11-pin plug-in base for mounting on DIN rail
                                • "Direction indication" mode with VEK MNE2
                                • Relay operating principle can be selected
                              • VEK M1H / M2H: 1- / 2 CHANNEL LOOP DETECTOR FOR VEHICLE DETECTION

                              • IN PLASTIC HOUSING FOR DIRECT MOUNTING ON DIN RAIL

                                1/2-channel loop detector in plastic housing for direct mounting on DIN rail.


                                Special features:
                                • USB port for use of modern diagnostic and service software
                                • Galvanic isolation between loop and detector electronics
                                • Automatic calibration when switching on or changing the holding time setting
                                • Unlimited holding time can be selected
                                • Adjustments can be made with DIP switch
                                • "Direction indication" mode with VEK M2H
                                • Permanent or pulse output can be set

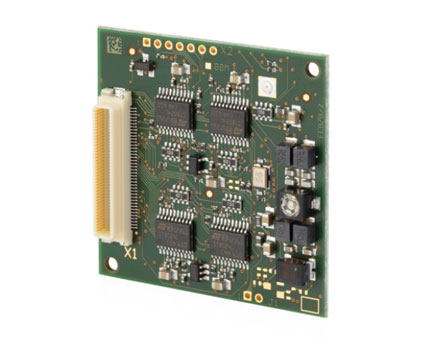

                              • TST SUVEK-1/-2: PLUG-IN MODULE

                              • 1/2-CHANNEL INDUCTION LOOP DETECTOR

                                1/2-channel induction loop detector module for TST FUS, TST FUZ, TST FUF and contactor-type reverser controllers


                                Special features:
                                • Galvanic isolation between loop and detector electronics
                                • Automatic calibration when switching on
                                • Connection using multi-point connectors and plug-in terminals
                                • Adjustments can be made with DIP switch
                                • Unlimited holding time can be selected
                                • Optocoupler
                              • MWD BP / MWD RC: MICROWAVE MOTION DETECTOR

                              • WITH REMOTE CONTROL

                                Digital two-channel motion detector with Planar microwave technology

                                Special features:

                                • Two-channel device permits detection of vehicles and people
                                • Cross traffic suppression
                                • Object tracking function
                                • Various relay functions
                                • Pre-configured profiles for typical door applications
                                • Programming with pushbutton on device or optional remote control MWD RC
                              • TST LGB: INTELLIGENT SAFETY LIGHT CURTAIN

                              • FOR POWER-OPERATED DOORS AND GATES

                                The TST LGB door line light curtain is a TÜV-approved, EN 12978-compliant, zero-contact safety device for power-operated doors and gates with the following highlights:

                                Special features:

                                • Tamper-protected, safe form of door blanking by direct connection with a position detector
                                • Longer door life cycles thanks to an intelligent, material-preserving hold mechanism
                                • Full integration in the door controller, i.e.
                                • Plain text diagnosis instead of flash codes
                                • Automatic teaching in of the closed position
                                • Alignment and setup assistance during installation
                                • Numerous adaptation options, such as blanking and displaying beams
                                • Easy installation thanks to compact cross-section (12 mm x 22 mm)
                                • High ambient light resistance
                              • VEK M4DC: 4 CHANNEL LOOP DETECTOR FOR CONTROLLING TRAFFIC LIGHT SYSTEMS AND CAR PARK COUNTING

                              • 19" BOARD

                                4-channel loop detector for controlling traffic light systems and car park counting, 19" board

                                Special features:

                                • 5 frequency bands / 8 frequency steps
                                • 256 sensitivity levels
                                • Loop multiplexing
                                • Digital and optocoupler output per channel
                                • Common fault output
                                • RS485 interface and CANopen interface
                                • Input for loop synchronization
                              • VEK M4D: 4 CHANNEL LOOP DETECTOR FOR CONTROLLING TRAFFIC LIGHT SYSTEMS AND CAR PARK COUNTING

                              • IN PLASTIC HOUSING FOR DIRECT MOUNTING ON DIN RAIL

                                4-channel loop detector for controlling traffic light systems and car park counting in plastic housing for direct mounting on DIN rail

                                Special features:

                                • 5 frequency bands / 8 frequency steps
                                • 256 sensitivity levels
                                • Loop multiplexing
                                • Digital and optocoupler output per channel
                                • Common fault output
                                • RS485 interface and CANopen interface
                                • Input for loop synchronization
                            • PAYMENT


                            • FEIG ELECTRONIC payment terminals help to simplify and accelerate payment processes. At the same time, they ensure maximum reliability. Whether contact or contactless, you can always enjoy complete peace of mind. Our devices are developed and produced exclusively in Germany, guaranteeing you top quality and maximum precision at all times. In addition, our readers and terminals comply with international standards to ensure reliable data exchange.

                              FEIG ELECTRONIC payment terminals are used in an extremely wide range of applications. Our cVEND product series ensures secure payment transactions in validators and onboard solutions for buses and trains just as effectively as for ticket machines and access systems. Our addOn series is ideal for installation in metal vending machines. FEIG ELECTRONIC onTop devices have been specifically designed for use at point of sale, where rapid payment helps to avoid long queues.

                              In the field of payment solutions, FEIG ELECTRONIC offers a wide range of readers and terminals for a variety of applications. All our products have proved themselves highly reliable in daily operation.

                                • SOLUTION FOR PAYMENT AND TICKETING

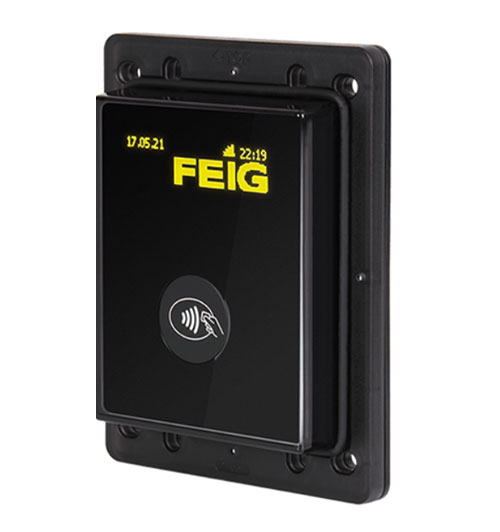

                                    • cVEND PIN: PIN PAD TERMINAL

                                    • WITH INTEGRATED NFC UNIT FOR TAP & PIN APPLICATIONS

                                      FEIG ELECTRONIC offers with the cVEND PIN a PIN pad terminal with fully integrated contactless interface for high value Tap & PIN applications. The robust and handicapped accessible terminal offers a user-friendly user interface and reduces installation and maintenance efforts for the operators notably, since one less opening in the machine must be provided and fewer components must be wired.

                                      Also available is a SmartCard reader (cVEND SHCR) for contact cards, specially designed for an optimal interaction with the cVEND PIN.

                                      Sample devices for system integrators will be available from February 2019.

                                      Examples of use:

                                      • Public Transport & Ticketing
                                      • Parking
                                      • eMobility / Charging stations

                                      Special features:

                                      • Only one device for Chip & PIN
                                      • Small footprint and easy installation
                                      • Meets requirements for rail vehicles (EMC, fire, vibration, shock)
                                      • Clear user-interface for contactless payment
                                      • Robust stainless steel keyboard with abrasion-resistant marking
                                      • Barrier-free operation
                                      • Security certifications according to PCI 5.x
                                      • Remote key-loading

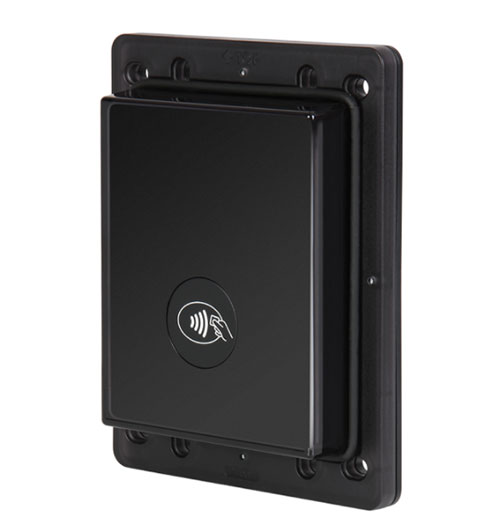

                                    • cVEND plug: OEM TERMINAL

                                    • FOR CONTACTLESS PAYMENT & TICKETING

                                      cVend from FEIG ELECTRONIC brings contactless card reading, financial transaction processing and secure communications technologies together in a single, flexible product platform.

                                      cVEND plug is the smart choice for validators or onboard computers in buses and trains, ticket vending machines and kiosk systems. The module is designed for flush integration in a non-conducting environment. Once installed, only the "contactless" icon (D = 28.5 mm) remains visible. This protects the product identity of the customer's device.

                                      Examples of use:

                                      • Validators and onboard computers in buses and trains
                                      • Ticket vending machines
                                      • Kiosk systems

                                      Special features:
                                      • Designed for credit cards (open loop) and public transport tickets (closed loop)
                                      • Certified according to EMVCo Level 1 and PCI PTS 4.0
                                      • Level 2 kernels for contactless credit cards are available
                                      • Secure data storage and secure data transfer
                                      • High transaction speed and tokenization
                                      • SDK to run own applications on an integrated Linux controller
                                    • cVEND box: TERMINAL

                                    • FOR CONTACTLESS PAYMENTS, TICKETING & VENDING

                                      cVend from FEIG ELECTRONIC brings contactless card reading, financial transaction processing and secure communications technologies together in a single, flexible product platform.

                                      cVEND box is the reliable solution for metallic environments: ideal for ticket vending machines and access gates.
                                      cVEND box+ also has a display.

                                      Examples of use:

                                      • Access gates
                                      • Ticket vending machines
                                      • Vending machines

                                      Special features:
                                      • Designed for credit cards (open loop) and public transport tickets (closed loop)
                                      • Certified according to EMVCo Level 1 and PCI PTS 4.0
                                      • Level 2 kernels for contactless credit cards are available
                                      • Secure data storage and secure data transfer
                                      • High transaction speed and tokenization
                                      • SDK to run own applications on an integrated Linux controller
                                    • cVEND box+: TERMINAL

                                    • FOR CONTACTLESS PAYMENTS, TICKETING & VENDING

                                      cVend from FEIG ELECTRONIC brings contactless card reading, financial transaction processing and secure communications technologies together in a single, flexible product platform.

                                      cVEND box is the reliable solution for metallic environments: ideal for ticket vending machines and access gates. With own display.

                                      Examples of use:

                                      • Access gates
                                      • Ticket vending machines
                                      • Vending machines

                                      Special features:
                                      • Designed for credit cards (open loop) and public transport tickets (closed loop)
                                      • Certified according to EMVCo Level 1 and PCI PTS 4.0
                                      • Level 2 kernels for contactless credit cards are available
                                      • Secure data storage and secure data transfer
                                      • High transaction speed and tokenization
                                      • SDK to run own applications on an integrated Linux controller
