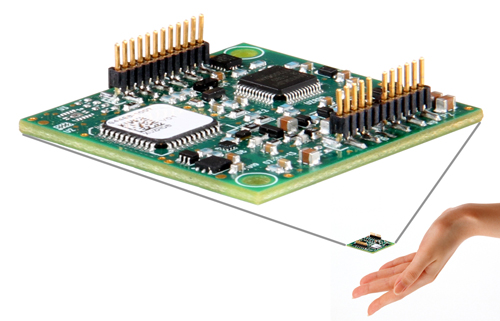

ADVANCED Motion Controls presents its featherweight µZ Servo Drives

Photo by servo2go

Weighing only 8.5 grams and capable of outputting 10A peak and 5A continuous µZ’s are the smallest off-the-shelf servo drives from ADVANCED Motion Controls. Pronounced ‘Micro-Z’ these plug-in drives are designed for embedded applications in a wide range of industries including: Robotics, Lab Automation, Homeland Security/Military, Electric Mobility, Medical and Packaging.

These full featured drives operate with brushless and brushed servo motors and are available for immediate shipment.

µZ Servo Drives are Current Mode drives that measure 1.5” on a side and output 10A peak and 5A continuous at up to 36VDC.

Designed without the need for a heatsink, the µZ’s are true featherweights with a high power to weight ratio. The µZ’s are fully protected against over-voltage, under-voltage, over-current, over-heating, and short-circuits.

Depending on the model, the drives interface with digital controllers that have analog ±10 V or PWM/Direction commands. These servo drives require only a single unregulated isolated DC power supply, and are fully RoHS (Reduction of Hazardous Substances) compliant.

For more information, please visit http://servo2go.com.
