ATISMIRUS 100: Precision Pneumatic Manipulator for Heavy and Off-Center Loads

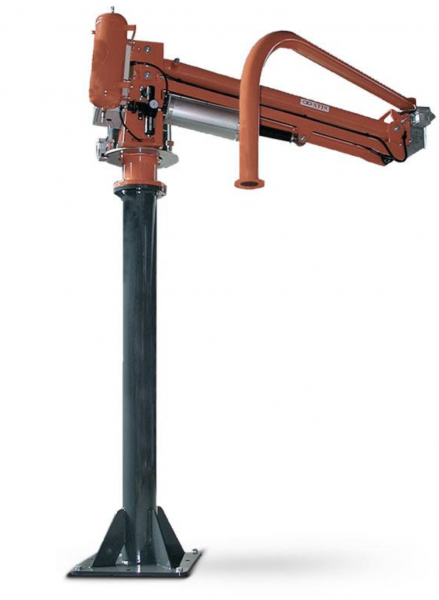

The ATISMIRUS 100 by ATIS is a pneumatic rigid arm manipulator designed to handle medium-weight loads with precision and agility. Its articulated rigid arms and parallelogram mechanism allow for vertical movements, making it ideal for lifting and rotating heavy or off-center products in various industrial applications.

Key Features:

• Pneumatic Operation: Utilizes clean, dry, and oil-free compressed air (0.5 to 0.8 MPa) for smooth and reliable operation.
• Load Capacity: Supports up to 180 kg at a 2900 mm radius; up to 100 kg at a 4000 mm radius.
• Vertical Stroke: Available in 1500 mm, 1750 mm, and 2050 mm options to suit different lifting requirements.
• 360° Rotation: Offers continuous rotation around the column axis for enhanced maneuverability.
• Noise Level: Operates at less than 70 dB, ensuring a quieter work environment.

Flexible Configurations:

The ATISMIRUS 100 can be customized to fit various setups:

• Column Mounted: Fixed to the floor or on a self-standing base plate.
• Overhead Installation: Mounted overhead or on rails for space-saving solutions.

Applications:

This manipulator is particularly effective in industries where handling heavy, off-center, or top-heavy loads is common. Its versatility makes it suitable for tasks such as:

• Drum Handling: Efficiently lifting and rotating drums of various sizes.
• Panel Manipulation: Handling shaped and perforated panels, especially in production lines for camper or furnace components.
• Reel Handling: Safely managing reels in manufacturing environments.

Conclusion:

The ATISMIRUS 100 combines capacity with agility, offering a reliable solution for handling challenging loads in industrial settings. Its customizable configurations and ergonomic design enhance productivity while ensuring operator safety.

For more information, please visit ATISMIRUS 100
