Carbon manipulators with ergonomic pivot arm by ZASCHESitec

ZASCHESitec offers 3 kinds of pivot arms:

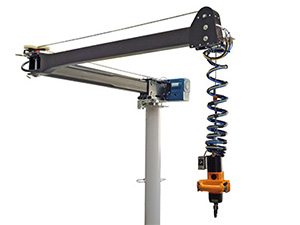

Pivot arm Carbon
set-up, connect, ready

KSL-Carbon pivot arms are either fitted with pneumatic rope balancers or with electric rope winches. These units are mounted above the pillar. They therefore offer the worker highly convenient handling, as only the extremely low mass of the arm has to be moved.

They are available with load capacities of up to 115 kg and, depending on the design, an outreach of up to 3,800 mm.

Pivot arm KSL
The proven pillar-mounted crane with ergonomic pivot arm

Rigid load lifting modules, such as Z-Lift pneumatic lifting axes or electric telescopic lifting devices type TR/TV can also be fitted to KSL pivot arms. This combination is a particularly cost-effective variant for rigid load handling.

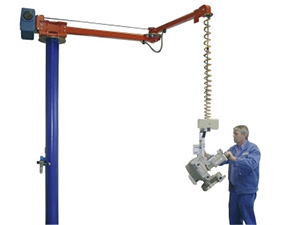

Pivot arm KSL medium/ light
The small pivot arm. Light, fast and flexible

Pivot arms type KSL-medium and KSL-light are combined with Demag rope balancers or Demag SpeedHoists which are fitted above the pillar. Therefore, they offer the operator highly convenient, smooth and flexible load handling, as only the relatively low dead weight of the arm has to be moved.
They are available with load capacities of up to 160 kg and, depending on the design, an outreach of up to 5,000 mm.

For further information please visit: www.zasche.de
