igus : Energy and data combined in new igus hybrid cable for SEW motors

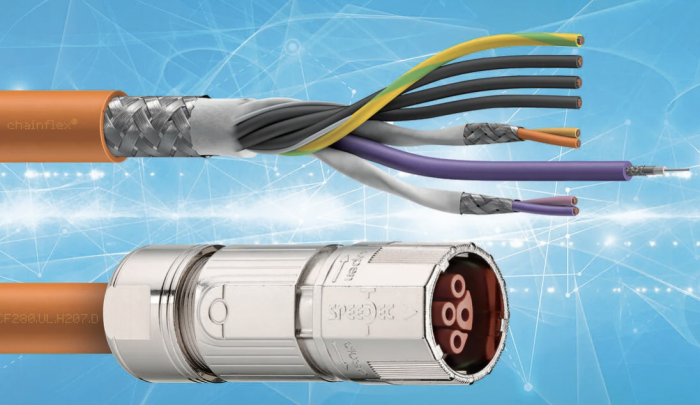

Photo by igus GmbH

Small, compact and fast: these are the demands on the new generations of engines. To this end, more and more drive manufacturers are relying on hybrid technology to save space. Therefore, igus has now expanded its range of hybrid cables with a new cable especially for motors from SEW with the MOVILINK DDI interface. This means, for example, that users from the material handling sector can rely on a durable cable specially developed for e-chain applications.

Hybrid cables for drive technology are characterised by the fact that they combine energy and data transmission in one cable. The result: the number of cables required is halved. In the case of the new SEW motors with MOVILINK DDI interface, the drive manufacturer relies on a coaxial element for data transmission of the motor information. In order to be able to safely supply the compact motors with power and data while they are in motion, igus has now developed a new hybrid cable. “The challenge with cables with coaxial elements is that they quickly become susceptible to faults at high dynamics. That is why we have made it our task to develop a durable and flexible cable that also functions reliably in motion,” says Andreas Muckes, Head of Product Management chainflex cables at igus GmbH. To this end, the motion cable specialist can draw on its more than 20 years of expertise in the field of coaxial cables for highly dynamic applications. For the new hybrid cable CF280.UL.H207.D, four energy cores have now been combined with one coaxial core and two control pairs. By combining two cables into one, users can save 40 percent space in the energy chain. At the same time, the weight that has to be driven by the system is reduced, which means less energy is consumed. The new cable with PUR outer jacket can be used for applications with a bending factor of up to 15 x d and is therefore suitable for a wide range of industries – from machine tools and material handling to the automotive industry.

28 cables for hybrid technology

With already 28 different cable types for motors from Siemens, Beckhoff, SEW or even Bosch Rexroth, igus has the largest portfolio of hybrid cables for the energy chain in stock. With the expansion of the CF280 series, igus is following the ongoing trend of hybrid technology. The cable specialist also offers its CF280 cable series with a PVC outer jacket as CF220. In this way, additional costs can be reduced in the hybrid cable segment. The chainflex cables can be purchased ready-made or by the metre. As with all its cables, igus also offers a warranty of up to 36 months on the new SEW hybrid cable.

For more information, please visit: https://www.igus.de/
