Microsensys: Smart Vibrations analysis thanks toTELID

TELID®X8 Series consist of passive Sensor-Transponder TELID®281.3D and semi-passive Datalogger TELID®382.3D. Using TELID®382.3D data logger, the shock events will be recorded with a 3D swing over a definite
time, which either are triggered by exceeding a default threshold value or in preconfigured time intervals. Thanks to individual configuration on the
RFID reader, the data logger will be adjusted to your individual use.

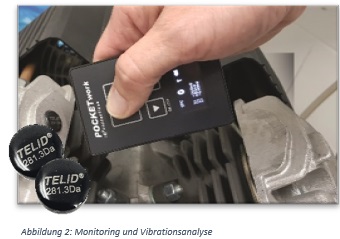

Passive sensor transponder TELID®281.3D measures 3D vibrations in a frequency range from 0 to a maximum of 2.8 kHz with an adjustable sampling rate up to 6.4 kHz and a resolution of 16 mg, radial or tangential accelerations as well as the torque speed of rotating objects. Condition monitoring, maintenance as well as quality control of products can be carried out and displayed graphically in next to no time, thanks to the integrated FFT (Fast Fourier Transform) in the sensor transponder.
