BD|SENSORS equips its new detachable level probe LMK 808 with versatile overvoltage protection

An intelligent device concept from BD|SENSORS protects the level measurement technology in the event of overvoltage events and simplifies the service and maintenance work involved.

Hydrostatic level probes are essential for managing and controlling environmental equipment such as weir and sluice systems. In the event of a lightning strike, shifts or increases in potential directly affect the measurement devices, which means that protecting these components is especially important. If certain overvoltage events result in plant downtimes nevertheless, the next step is to keep the maintenance effort as low as possible. For both scenarios, BD|SENSORS has a well-conceived solution which draws on an established device concept, consisting of overvoltage protection combined with a simple and time-saving replacement option.

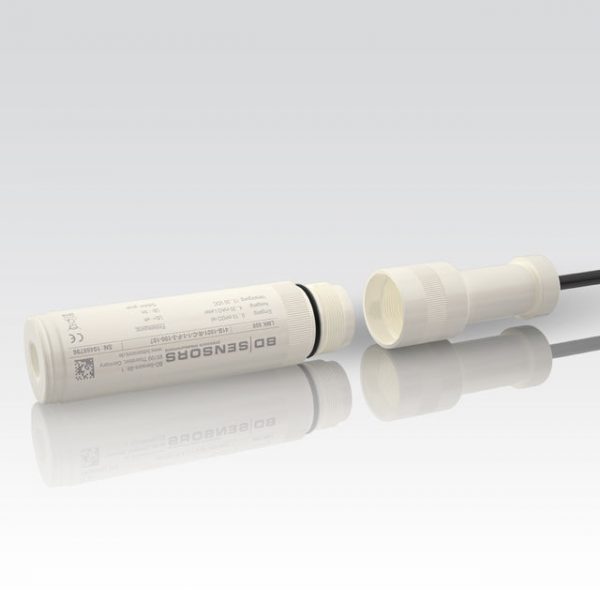

The detachable level probe LMK 808 with a robust, capacitive ceramic sensor and a pressure tightness of up to 20bar is one example of this.

It also has two-stage overvoltage protection which protects the sensor signal and signal processing and transmission. Whilst the primary protection ensures that the overvoltage is limited to 90 V and a pulse current up to 8,000 A (8 kA) is dissipated, the subsequent secondary protection reduces the voltage to 36V, has a bipolar affect and can record a pulse power of 1,500W. (To document the performance of the measures, overvoltage tests were carried out in an accredited test laboratory pursuant to standard EN 61000-4-5. The results show that standard test pulses with a severity of 4,000V (4 kV) do not cause any damage.)

On the other hand, the probe head on the level probe can be detaches from the cable part. This means that the cable that was laid at great expense does not have to be removed from cable ducts or protective pipes if it is damaged or needs to be serviced. Instead, simply unscrew the probe head, clean it and screw it back on, or replace it with the spare part. The effort required for this takes just a few minutes, meaning that the level probe can quickly be put back into operation and downtimes are kept low.

For more information, please visit http://www.bdsensors.de.
