Demag Cranes has extended its KBK light crane system

Improved safety and ease of operation
Demag Cranes has extended its KBK light crane system to include two components. With immediate effect, adjustable limitation of the slewing motion is available for wall-mounted slewing jib cranes to protect workers at their workplaces and, at the same time, to protect material, such as neighbouring machinery. In addition, a new cable slider is now available to accommodate flat cables. This offers an outstanding and rugged design to facilitate simple installation and ensures highly convenient operation.

Limited slewing motion for wall-mounted slewing jib cranes – improved safety for man and material
The new slewing motion limiter for Demag wall-mounted slewing jib cranes corresponds to the slewing motion limiting function already offered for some time for KBK pillar-mounted slewing jib cranes. Demag Cranes has modified its KBK I and KBK II wall brackets accordingly to employ this convenient safety device also for wall-mounted slewing jib cranes. This flexible solution now allows the slewing range of wall-mounted slewing jib cranes to be adapted to the given operating requirements up to a radius of 270 degrees at any time.

The pre-completed sub-assembly consists of a carrier plate, mounting bracket, perforated plate and buffer bracket.The perforated plate used in connection with buffer brackets enables the slewing angle to be precisely adjusted in increments of 1.5 degrees. Simple adjustment is possible at any time also if operating requirements change. In the same way as for pillar-mounted slewing jib cranes, the new slewing motion limiter for Demag wall-mounted slewing jibs can also be fitted to the crane jib at a later date if they are equipped with the new wall bracket.

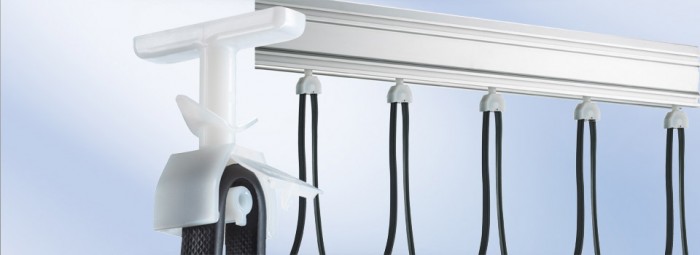

New cable slider for reliable power supply
The new cable slider features smooth travel and guarantees ease of operation in daily use. Demag Cranes offers this cable guide in two sizes for the KBK I and Aluline 120 inside-running profile sections as well as for the KBK II family and Aluline 180. Compared to the previous solution, assembly is much simplified and ease of maintenance is improved at the same time. The cable can be simply inserted into the side of the cable slider during assembly. This principle also makes it possible to adjust cable sag without much effort, since the cable does not need to be pulled through over its entire length. Made of wear-resistant plastic, the cable sliders can be quickly and easily introduced into the gap in the rail at any position along the profile section and removed again. Any twisting movement of the cable is prevented by a tab, which acts as integrated protection against twisting.

The new cable slider considerably reduces the amount of time needed if any maintenance work has to be carried out. The design offers a further benefit, since the electric cable no longer needs to be disconnected from the supply if cable sliders have to be replaced.
