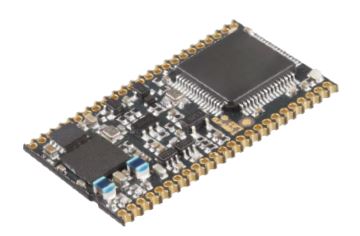

Elatec’s TWN4 MultiTech Nano Reader/Writer designed with smooth integration in mind

Photo by Elatec Vertriebs GmbH

The TWN4 MultiTech Nano Reader/Writer is designed for integration into machines or other devices. It can be connected to an external antenna through printed circuit board. The powerful hardware allows the extension of supported transponders to meet customers individual request.

Contactless Frequency: 125kHz / 134.2kHz (LF), 13.56MHz (HF), plus NFC

Interfaces: USB, 2 x serial (logic level 3.3V,CMOS 5V tolerant), I2C, SPI, Clock/Data, Wiegand, 1-Wire, CAN, RS232/422/485 requires adapterboard

Supported RFID Transponders: Compatible with nearly all transponder types. Different versions available to provide higher capabilities for certain transponder types.

For more information, please visit http://www.elatec-rfid.com.

• CID: 20023
