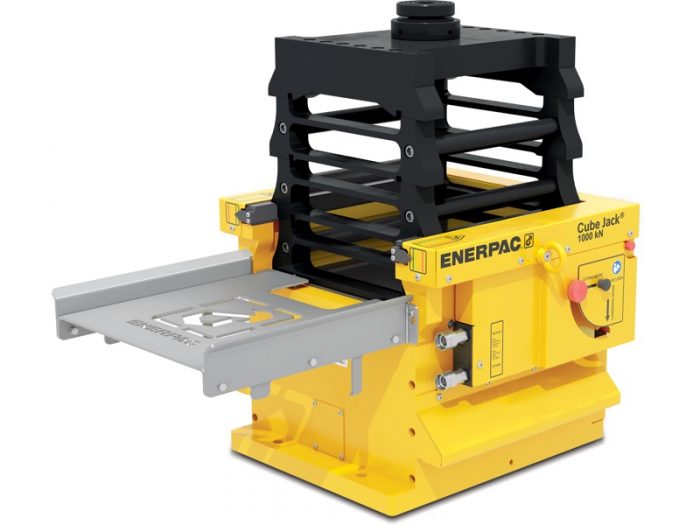

Enerpac’s new 100-ton SCJ-100 Cube Jack features improved safety and speed

100-ton capacity incremental lifting system with automated mechanical locking

Improve the safety and speed of the next lift with the Self-Locking Cube Jack. Enerpac’s new 100-ton SCJ-100 model is an addition to its previously released 50-ton SCJ-50 Cube Jack. Self-Locking Cube Jacks are a compact and portable hydraulic solution for incremental lifting and lowering of heavy loads. The Cube Jack uses a base lifting frame and self-aligning, lightweight steel cribbing blocks to provide high-capacity and stabilized lifting.

Steel cribbing blocks:

• Are lightweight, <25kg
• Reduce manpower required, two people do the same work as four people in 1/4 the time
• Save time, 50% less cycles than climbing jacks
• Offer a safer and controlled alternative to climbing jacks with wooden cribbing
• Can be handled manually
• Improve side load
• Eliminate the need for wooden cribbing materials

Steel cribbing blocks are only inserted once the load is mechanically locked on the cube jack. They are easily aligned in a single movement providing optimum safety, so the operator does not need to put hands beneath a load suspended by hydraulic pressure. The Cube Jack is derived from the proven Enerpac Jack-Up System, but in a vastly smaller footprint allowing it to be used in confined spaces and without the need for electrical controls. The compact size and portability of Self-Locking Cube Jacks offer a powerful solution for numerous applications, such as equipment maintenance, vehicle unloading or jacking a transformer, module, or bridge.

Up to eighteen 50-lbs (23 kg) steel cribbing blocks can be safely and easily stacked onto the SCJ-100 Cube Jack base frame yielding a maximum height of 118.3 inches (3006 mm). The base frame footprint measures just 25.8 in x 25 in (655mm x 636mm), making it ideal for restricted operating space. A low 22 in (558mm) minimum initial jacking height increases flexibility and reduces operational startup time.

Cube Jacks operate with up to 10,000 psi (700 bar) hydraulic pressure and are compatible with standard Enerpac pumps, such as the Split-Flow Pump that offers the ability to evenly operate multiple Cube Jacks.
