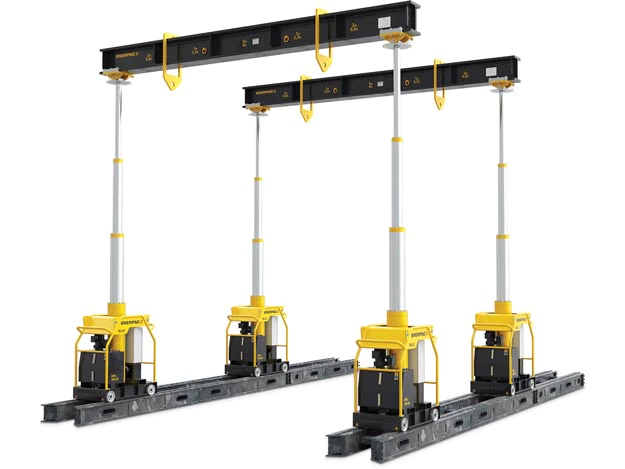

Enerpac launches its new ML40 Mini-Lift Hydraulic Gantry

The Enerpac SL-series and SBL-series gantries have long been trusted by lifting professionals. They have always stood for a safe and efficient way to lift and position heavy loads in applications where traditional cranes will not fit and permanent overhead cranes are not an option. When used with a track system, Enerpac hydraulic gantries also provide a means for traveling heavy loads.

With the introduction of the new Enerpac ML40 Mini-Lift Hydraulic Gantry and its built-in synchronization and safety features, all an operator needs for nearly any 40-ton lifting job is a standard power supply and basic training.

Built-in Features for Versatility

Nearly any 40-ton job can be done with the new ML40 Mini-Lift Gantry. As standard, the ML40 Mini-Lift Gantry includes stroke and travel synchronization with alarm functions to alert the operator should something become out of set tolerances. The ML40 Mini-Lift Gantry also comes standard with a wireless pendant control which keeps the operator away from the load when lifted. The wireless pendant includes a display that provides information such as load, stroke, alarm details, and set-up screens.

Compact

When installing or removing machinery in tight spaces, compact gantry designs that require minimal amount of clearance around the machine are a must. The ML40 fits through a standard personnel doorway and can be maneuvered into position manually. Save time not having to move auxiliary equipment out of the way to get machine moving equipment into place and keep operators safer not having to work in such tight spaces.

Easy set up and simple to use

While machines continue to become increasingly more complex and far more difficult to handle and repair, Enerpac gantries continue to advance in design to make moving and lifting easy and simple. The ML40 Mini-Lift Gantry is a complete, self-contained system with everything on-board including the pump, controls, and drive system. Additional components such as skid tracks, header beams, lifting anchors, and other accessories are available. The ML40 is simple to set up with a single wireless pendant control and runs off standard single phase 115 or 230 VAC power.

The ML40 Mini Gantry is the ideal solution for machinery movers performing plant relocation services, heavy machinery installations, special transportation or machinery maintenance, millwrights, rigging services and medical equipment installers.

Features

• 40 tonnes (45 short ton) capacity (all stages, four legs)
• Collapsed Height 1900 mm (6.23 feet)
• Extended Height: 5500 mm (18.0 feet)
• 24 in track gauge, 750 mm (29.5 in) total width
• Standard stroke and travel synchronization with alarm ensure safe lift
• Wireless pendant with load and stroke readout
• Single phase voltage – 115 or 230 VAC

For more information, please visit http://www.enerpac.com.
