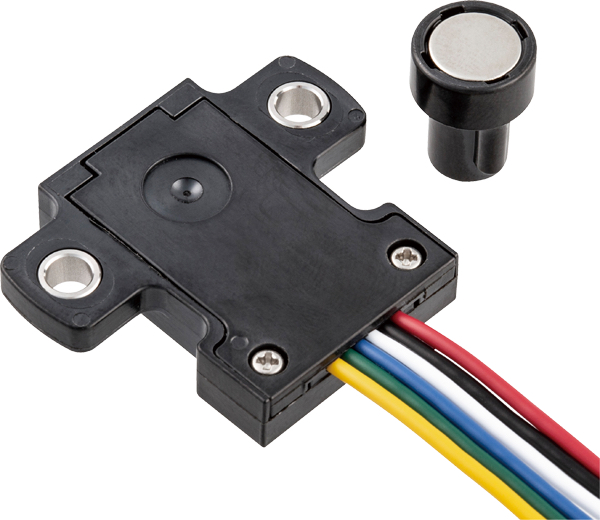

Pewatron introduces its new CP-2HX magnetic contactless sensor

CP-2HX is an only 7mm thick magnetic contacless sensor with dual crossed or parallel ratiometric outputs. Both circuits are independent with distinct power supply inputs for safety applications. A wide gap up to 3.5 mm simplifies the magnet positioning, which is delivered in a an easy to mount magnet holder.

CP-2HX is rated IP67, therefore usable in outdoor or heavy duty environments, like marine equipment, forklifts, truck mounted cranes, printing machines. It is delivered with a cable and Econoseal J series connector.

Technical details:

• Contactless with wide gap 0.5 to 3.5 mm
• Housing thickness only 7mm
• Two Independent output channels
• Crossed or parallel output channels
• Ratiometric voltage or PWM output
• Angular ranges 360, 180 or 90 degrees
• Cable with Econoseal J series connector
• IP67 protection grade

For more information, please visit http://www.pewatron.com.
