Extremely slim rotary sensors ideally suited to mobile applications

With its Vert-X 90E model, Contelec has launched an extremely slim, heavy-duty non-contacting rotary sensor that is ideally suited to mobile applications, such as in construction and forestry machinery, concrete pumps or fire-fighting vehicles. Only 12 mm high and with IP69K ingress protection and a very high resistance to shocks and vibration, the Vert-X 90E can be used in applications in confined spaces, where extremely challenging requirements in terms of ruggedness, sturdiness and the prevailing conditions are the order of the day.

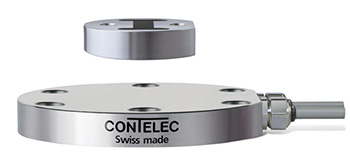

Vert-X 90E Rotary encoder
Photo by Contelec AG

The Vert-X 90E also enables the user to easily set index points (e.g. zero point) and the direction of rotation. These features allow quick, convenient installation and provide an elegant method of compensating for equipment tolerances as well as the installation tolerances of the rotary sensor itself.

• Very robust design, sealed aluminium housing (up to IP69K)
• Applications under adverse ambient conditions possible
• CANopen Interface available
• Non-contacting measuring method
• Infinite mechanical life
• High accuracy of measurement

for further information visit: www.contelec.ch
