EMO-Highlights from DMG MORI SEIKI

HIGHLIGHTS

  • CELOS – From idea to finished product
  • 15 machines in the new DMG MORI SEIKI design
  • 18 world premieres on show at EMO 2013
  • A total of 95 high-tech exhibits at EMO 2013
high-level 5-axis machining

World premiere: DMU 80 P duoBLOCK® – The fourth-generation duoBLOCK® for 30% increased performance, precision and efficiency
Photo by DMG / MORI SEIKI

CELOS – From idea to finished product
CELOS from DMG MORI SEIKI simplifies and accelerates the process from idea to the finished product. CELOS APPs enable integrated management, documentation and visualisation of job, process and machine data. CELOS is compatible with PPS- and ERP-Systems, can be linked to CAD/CAM software and is open to future CELOS APP expansion.

At EMO, there will be 12 CELOS APPs available. For example, CELOS apps such as the “JOB MANAGER” or “JOB ASSISTANCE” support the user with the network-integrated planning, management preparation and systematic processing of jobs (with workpiece, equipment and NC programme). CELOS from DMG MORI SEIKI with 21.5“ ERGOline® is available with SIEMENS und MITSUBISHI.

15 machines in the new DMG MORI SEIKI design
The new uniform DMG MORI SEIKI design demonstrates the company’s consistently high quality standards. Visitors can experience the advantages of the new design on 15 high-tech machines, which excels through improved functionality, user-friendliness and value retention.

Improved functionality
• Maximum view into the work area for greater control of the machining process.
• Improved functionality: i.e. dismantling of the safety glass from the outside.

User-friendlines
• CELOS by DMG MORI SEIKI: ERGOline® Control with a 21.5″ multi-touch screen and uniform interface.
• Adjustable display and keyboard for an ergonomic work position.
• SMARTkey® for personalised operator authorisation and customised access privileges to the control and machine.

Value retention/ Longlife-surfaces
• Premium range for fine structure, resulting in greater scratch resistance and protection against damage.

In addition to all of the technical features, in the future users will also be able to select DMG and MORI SEIKI machines from two machine designs in “BLACK” or “WHITE” at no additional cost.



The 18 world premieres from DMG MORI SEIKI

vertical machining centre

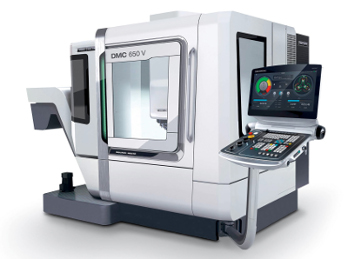

DMC 650 V – The new vertical machining centre with a unique machine concept for more power and flexibility
Photo by DMG MORI SEIKI



TURNING TECHNOLOGY

_ NLX2500/500: Perfect 2-axis turning on 3.5 m² for short workpieces up to 500 mm | also with CELOS
_ NLX3000MC/1250: Precise high-performance turning and milling with BMT turret for turning lengths of up to 1,250 mm | also with CELOS
_ NLX4000BY/1500: Precise high-performance turning and milling with BMT turret for turning lengths of up to 1,250 mm | also with CELOS
_ CTX beta 2000 TC: Turn & Mill complete machining with the biggest Y-stroke of 300 mm in its class
_ CTV 315 linear: Vertical turning of large workpieces of up to 300 mm in length weighing 25 kg
_ SPRINT 65: Up to three turrets with three Y-axes and unique B-axis and Direct Drive technology

MILLING TECHNOLOGY

_ DMC 650 V: The new vertical machining centre with a unique machine concept for more power and flexibility | also with CELOS
_ HSC 30 linear | HSC 70 linear: Highest precision and surface finish for tool and mould making applications | also with CELOS
_ DMU 80 P duoBLOCK®: The fourth-generation duoBLOCK® for 30% increased performance, precision and efficiency | also with CELOS
_ DMC 85 FD monoBLOCK®: Complete machining mill-turn with threefold pallet changer for maximum productivity
_ DIXI 270: High-end precision machining up to 12 t with a threefold improvement in volumetric accuracy
_ DMF 600 linear: Dynamic travelling column milling centre with linear drives and 6-m X-travel for workpieces up to 10 t
_ i80L: Compact horizontal machining centre for the serial production of engine components in the automotive industry
_ ULTRASONIC 30 linear: High contour accuracy as well as surface finishes of Ra < 0,1 μm in Advanced Materials

ECOLINE

_ CTX 450 ecoline | CTX 650 ecoline: The new compact machines for chuck sizes of 250 mm and 400 mm with 3D control technology

SERVICES

_ UNO 20 I 40: Unique high-tech features for entry-level tool presetters

Visit www.dmgmoriseiki.com for further information
