Hainbuch clamping head adapter enables quick change-over to a different clamping diameter

In no time at all, the Hainbuch clamping head adapter turns a large clamping head into a small one. This allows a quick change-over to another clamping diameter and eliminates the purchase of large clamping heads. The clamping head adapter converts for example, a 100 chuck into a 65 chuck. To do this, the clamping head adapter is inserted into the 100 chuck and the normal 65 clamping heads are inserted. Often large workpieces are clamped with large chucks and large clamping heads. However, what happens when smaller workpieces have to be machined in between? Instead of buying large clamping heads with a small diameter or changing the entire chuck – which in turn increases the setup time – the clamping head adapter is used. Smaller clamping heads are usually in stock and have a lower price. In addition, if users already use smaller clamping heads, they save on the purchase of new large clamping heads.

Key advantages:

• Smaller clamping heads can be used in larger chucks [size 100, 125 and 160]
• Use of existing clamping heads [size 65 and 100]
• Costs savings thanks to use of smaller clamping heads
• Smaller clamping heads are mostly in stock and available faster
• Covers a larger range of clamping diameters
• Boosts productivity and saves time thanks to faster change-over between large and small clamping diameters

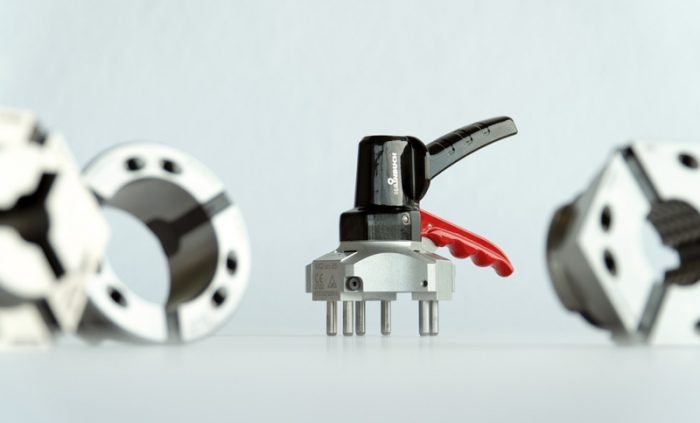

Universal manual changing fixture

With the help of a changing fixture, clamping heads are safely and easily inserted and removed. This allows change-over to a different clamping diameter or to an adaptation in just seconds. Up to now though, separate changing fixtures were needed for the hexagonal or round clamping heads as well as for special extension lengths. Now there is one universal manual changing fixture. It is available in sizes 42/52 and 65 and it can change both geometries of clamping heads and even clamping heads with an extension length of up to 19 mm.

Key advantages:

• Only one changing fixture per size for hexagonal [Toplus] and round [Spanntop] clamping heads
• Clamping heads with front nose extension of up to 19 mm can be changed

For more information, please visit http://www.hainbuch.com.
