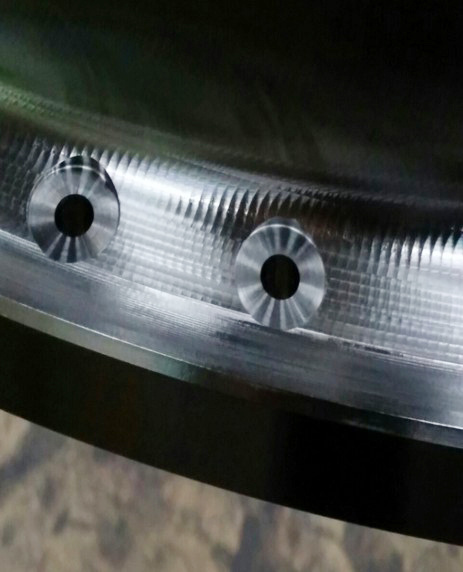

HEULE’s BSF Back Spot Facing Tool utilized by Korean jet-engine manufacturer for gas turbine machining

Photo by Heule Werkzeug AG

The aircraft industry is known for its need for most reliable solutions. So a Korean jet-engine manufacturer who uses the BSF Back Spot Facing Tool for the spot facings on its gas turbine casings. Beside the satisfying result, it was the fascinatingly simple function principle who convinced the customer.

Gas turbine casings are large workpieces that any manufacturer would like to machine completely in one setup. The BSF tool enables the access to the surface that has to be machined through the bore itself. Hence, it can operate in very limited space conditions behind the bore. In this application sample, the tool carries out a spot facing of 2.14 x the diameter of the bore. The maximum spot facing diameter BSF can attein is 2.3 times the bore diameter.

For more information, please visit http://www.heule.com.
