Ideal for mobile long-term recordings at high speed: MotionBLITZ®LTR2 portable

This new complete system records up to 55 minutes at a time in full resolution

The new MotionBlitz®LTR2 portable system from Mikrotron was developed specifically for mobile long-term recording of high-speed video. Thanks to its compact dimensions and high light sensitivity, the LTR2 system can also be used in difficult environments.

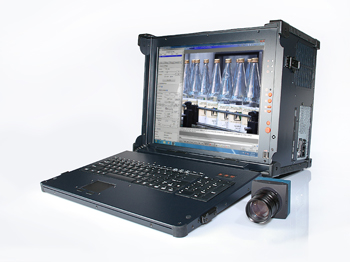

Photo by Mikrotron

The camera stores images in real time directly to a ring memory hard drive system with a volume of 1.6 TB, saving the user inconvenient waiting times during download. At full resolution, recording times of up to 55 minutes can be achieved – and at VGA resolution even up to 16 hours.

That gives quality managers and employees in technical monitoring entirely new application scenarios and options for the analysis of complex processes. For example, lengthy experimental sequences can be filmed in a single pass, or packaging processes thoroughly monitored over longer periods.

Other application areas are motion analysis and flow behavior of liquids and gases in university research, or motion analysis in sports and medicine.

The ready-to-operate complete system is also easy to use and has a number of convenient functions, like the ImageBLITZ® intelligent trigger system, which records the relevant period before and after the trigger signal.

The greatest advantages and data for the new MotionBlitz® LTR2 portable at a glance

• Convenient: real-time hard drive recording without time-consuming download
• Compact: with dimensions of only 44x35x24 cm, extremely flexible and mobile
• Long-lasting: up to 55 minutes recording time at full resolution (1280 x 1024 pixels) and maximum speed (253 fps), up to 16 hours at VGA resolution
• Detailed: recording frequencies of up to 35,000 fps using the integrated RoI function
• Highly sensitive: extremely high light sensitivity of 2500 ASA monochrome and 2000 ASA with RGB color
• User-friendly: Easy-to-use Windows-based MotionBLITZ® Director2 user software
• Complete: portable PC in robust aluminum housing with keyboard and screen
• High-speed CMOS digital camera from the EoSens series, full camera link frame grabber,
  Camera link cable, and operating software all included in the package

• CID: 1557
