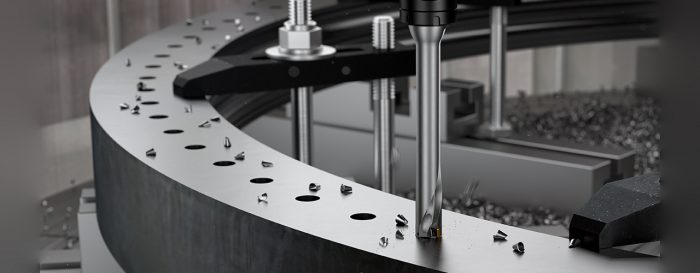

Sandvik Coromant presents its new CoroDrill® DS20 indexable drills

The CoroDrill® DS20 from cutting tool and tooling system specialist Sandvik Coromant is the first indexable drill concept capable of producing hole depths up to 7xD. The drill, which includes completely new designs for both the body and inserts, provides users with reliable, predicatable chip control and outstanding penetration rates in all 4-7xD applications.

Replacing the existing CoroDrill 880 and CoroDrill 881 tools, 4-5xD CoroDrill DS20 indexable drills provide tool life improvements of up to 25% and productivity gains up to 10%, depending on workpiece material. The 6-7xD variants represent an entirely new capability range of indexable drills from Sandvik Coromant. To complement the introduction, the company is releasing a new Modular Drilling Interface (MDI) that acts as a coupling between the drill and adaptor. Available in Coromant Capto® and HSK shank types, the MDI provides high precision, excellent centring capabilities and reduced tool inventory.

CoroDrill® DS20 indexable drills are both versatile and cost-efficient, increasing tool life and productivity in nearly all workpiece materials compared with current best-in-class concepts. No pilot drilling is needed.

“Among the most important factors when drilling to depths of more than 5xD is controlled cutting forces, secure chip evacuation and high centring capabilities,” explains Håkan Carlberg, Senior R&D engineer, Indexable drilling at Sandvik Coromant. “Going from a 5xD to a 7xD drill, the theoretical difficulty increases approximately three-fold due to an increased inclination to bend. Designing a CoroDrill DS20 7xD drill requires careful consideration for around 50 parameters that all depend on each other. The outcome is improved process security through lower forces and lighter cutting, particularly at entry. In turn, users achieve lower cost per hole, the ability to drill deeper and reduced sound levels.”

The drill body is strong and fatigue-resistant with higher levels of stiffness than ever achieved before, while chip flute shapes are individually designed for each drill size and insert. This combination of factors leads to less vibration, predictable wear patterns and increased tool life. In addition, next-generation ‘double-step’ technology reduces entry cutting forces by up to 75% compared with CoroDrill 880 tools to improve centring capabilities. Strong insert design and bulk strength provide extra toughness, with four true cutting edges provided on both centre and peripheral inserts.

Regarding the new MDI, double centring with high fitting accuracy enables good run-out precision and optimal repeatability. Here, flange and surface contact between the drill body and nut provides increased stability and promotes hole quality. One size can be used for several drill diameters.

CoroDrill DS20 indexable drills are available from 15 to 65 mm in diameter with a selection of shank types, insert sizes, grades and geometries to suit all material types and applications, including those found across the general engineering, automotive, oil and gas, pump and valve, and aerospace sectors.
