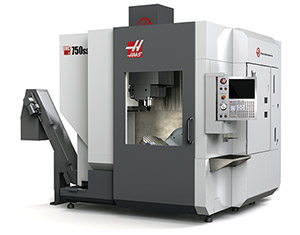

UMC-750SS universal machining center by Haas allows rapid machining of 5-axis parts

Photo by haas

Haas Automation expands its line of universal machining centers with the UMC-750SS, a Super-Speed version that offers high performance and speed for quickly machining 5-sided (3+2) and simultaneous 5-axis parts.

The UMC-750SS is a 5-axis, 40-taper universal machining center with 762 x 508 x 508 mm travels, 30.5 m/min rapids, and an integrated high-speed, dual-axis trunnion table. The machine is equipped with a 15,000-rpm inline direct-drive spindle, a high-speed 40+1 tool side-mount tool changer, and Haas Automation’s powerful high-speed machining software.

The UMC-750SS’s high-speed, roller-cam trunnion table offers 150 deg/sec feedrates to quickly position parts to nearly any angle for 5-sided (3+2) machining, or provide full simultaneous 5-axis motion for contouring and complex machining. The trunnion provides +110 and -35 degrees of tilt and 360 degrees of rotation for excellent tool clearance and large part capacity, and the 630 x 500 mm table features standard T-slots and a precision pilot bore for fixturing versatility. To simplify job set up, the UMC-750SS features Dynamic Work Offsets and Tool Center Point Control, and comes standard with Haas Automation’s Wireless Intuitive Probing System.

The machine’s 15,000-rpm inline direct-drive spindle is powered by a 22.4 kW vector drive system that yields 122Nm of cutting torque. The Haas inline system couples the spindle directly to the motor to reduce heat, increase power transmission, and provide excellent surface finishes.

A wide selection of high-productivity options is available for the UMC-750SS, as well, including a belt-type chip conveyor, high-pressure through-spindle coolant systems, expanded program memory, and much more.

For more information, please visit http://int.haascnc.com.
