TOPTICA’s new iChrome FLE laser engine features power level up to 100mW per laser line

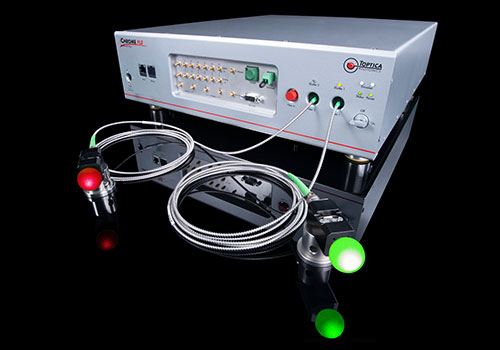

TOPTICA’s iChrome FLE is a flexible laser engine that combines up to 7 laser lines in up to two polarization-maintaining single-mode fibers. Power levels reach up to 100mW per laser line.

The latest member of the iChrome family, the iChrome FLE, is designed as a “flexible laser engine” to serve the numerous and very diverse requirements in biophotonics.

Up to 7 laser lines from 405-785nm

Up to 7 wavelengths (between 405 and 785nm) and two fiber outputs can be integrated into the iChrome FLE. The fiber outputs can be configured separately, so that individual wavelengths (e.g. UV or IR) can be corrected separately in the application. Alternatively, a fiber switch/splitter can be installed, allowing each wavelength to be switched separately to one of the two fibers, or to distribute the power between both fibers.

The numerous laser requirements from microscopy were decisive for this development. For example, some imaging techniques require multiple, switchable fiber outputs in addition to the large number of wavelengths, such as in confocal microscopy in combination with wide-field illumination (fiber switching). In other applications, such as light sheet microscopy (aka SPIM), multiple light sheets are often used, which need to be illuminated with exactly the same intensity (fiber splitter). Like all iChrome laser engines, the iChrome FLE features fully automatic adjustment, which ensures consistent laser output and easy “no screwdriver” installation.

Key features

• Automatic alignment technology COOLAC
• Complete-off, zero photons in off state
• AOM/AOTF free, no cross talk between wavelengths
• 2 fibers with fiber switch and unique variable splitter

Key Applications

• Flow cytometry
• Confocal microscopy
• Live-cell imaging
• TIRF
• FRAP
• High throughput screening
• Genome analyzers
• Optogenetics

For more information, please visit https://www.toptica.com.
