ABB IRB 910SC fast SCARA Robot for confined spaces

In designing its Selective Compliance Articulated Robot Arm (SCARA), or IRB 910SC, ABB has delivered a single arm robot capable of operating in a confined footprint. ABB’s fast SCARA robot is ideal for the Small Parts Assembly, Material Handling and parts inspection.

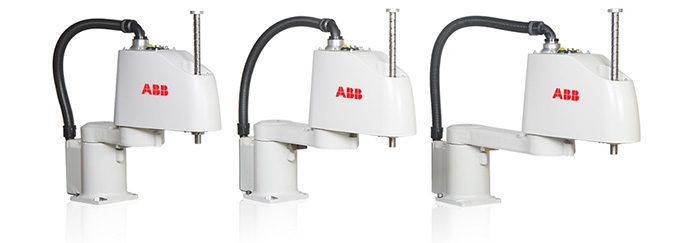

IRB 910SC SCARA Robot
Photo by ABB Automation GmbH

Variants
With a maximum payload of 6 kg, the IRB 910SC is available in three configurations (IRB 910SC –3/0.45, IRB 910SC – 3/0.55m, and IRB 910SC – 3/0.65.) All are modular by design, with different linking arm lengths and have individual reaches of 450 mm, 550 mm and 650 mm, respectively.

Tabletop mountable, each member of our SCARA family is IP54-rated for optimum protection against dust and liquids. A Clean Room ISO-5 option is under development.

Applications
ABB’s SCARA family is designed for a variety of general-purpose applications such as tray kitting, component placement, machine loading/unloading and assembly. These applications require fast, repeatable and articulate point-to-point movements such as palletizing, depalletizing, machine loading/unloading and assembly.

ABB’s SCARA family is ideal for customers requiring rapid cycle times, high precision and high reliability for their Small Part Assembly applications and for laboratory automation and prescription drug dispensing.

Features:

• A Clean Room ISO-5 option is under development
• IP54 protection
• Table top mountable
• Ease of integration
• Custom interfaces
• Modular design

Customer benefits:

• Short cycle times which achieved by high speed
• High precision which is achieved by superior motion control
• Superb reliability due to reuse and standard proven components

Main applications:

Small Parts Assembly:

• Screw driving
• Inserting
• Assembly/ disassembly
• Mounting

Material Handling:

• Picking and placing
• Parts transfer
• Parts handling
• Sorting
• Packaging

Inspection:

• Product inspection
• Testing
• Quality control

For further information visit: www.abb.com
