Behringer Eisele’s new PSU 450 M underfloor circular sawing machine features high versatility and flexibility

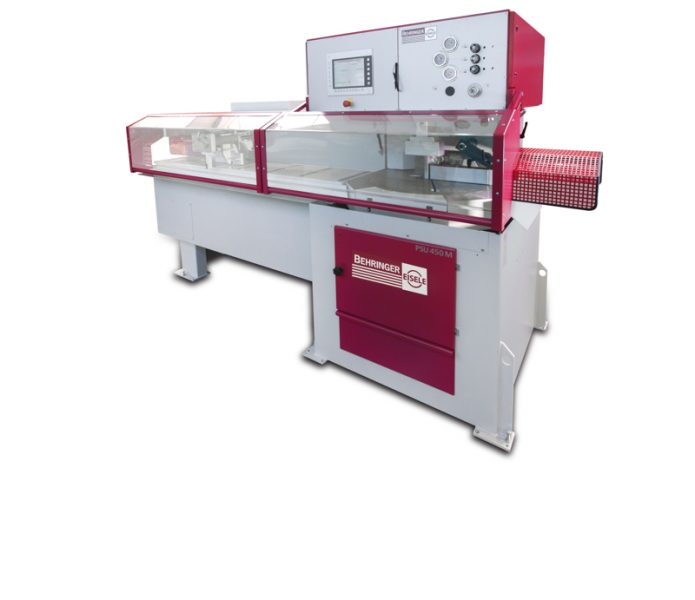

Photo by Behringer GmbH

New underfloor circular sawing machine PSU 450 M from Behringer Eisele offers impressive versatility.

Based on the proven technology behind the PSU 450 H, the PSU 450 M has been upgraded with a newly developed control system which permits it to be supplemented both by automatic mitre setting and also a feed gripper. The result is a highly flexible machine concept which sets whole new standards, particularly for automatic single-bar operation.

The basis for this modular concept is a durable, stable machine substructure which ensures optimum vibration damping and low-noise sawing operation. A worm gear featuring a rotation compensation system developed specifically for the purpose by BEHRINGER EISELE permits outstanding cutting output coupled with a long saw blade service life.

Particular care was taken in re-engineering the machine and developing the mitre setting facility. This is optionally available with an electronically controlled mitre axis or with a manually (steplessly) adjustable angle adjustment facility. Additionally, provided fixed stops at 30° / 45° / 90° simplify operation of the manual mitre device.

The PSU 450 M comes with an intuitive and clearly structured touch control system. For repeated sawing assignments, program memory locations are available which permit the storage of both cut lengths, right and left-hand angles and piece numbers per order.

By combining automatic mitre adjustment with the feed gripper, cuts with varying angle combinations ranging between + / – 30° can be manufactured in automatic sawing operation. Fast, precise material transport is guaranteed by the feed gripper, equipped with a single feed stroke of 1,500 mm.

The underfloor circular sawing machine is equipped with a hydraulic clamping device arranged horizontally and vertically on the left and right of the saw blade which holds the stock in the correct position during sawing. A steplessly adjustable clamping pressure reduction facility makes child’s play of sawing profiles.

The high-performance saw drive with its output of 3.0 / 3.6 kW offers 4 different speeds (6 / 12 / 24 / 48 rpm). In conjunction with the steplessly adjustable saw blade feed, the PSU 450 M is ideally suited for the troublefree machining of all steel types commonly encountered in the metalworking industry – including stainless steel. A bar change is quickly and simply performed by means of a bar start detector. A remnant length reduction facility cuts down material consumption significantly. To prevent saw blade breakage, the machine features an integrated cutting pressure shut-off mechanism, and a fitted machine light makes for more convenient operation of the new PSU 450 M.

For more information, please visit http://www.behringer.net.
