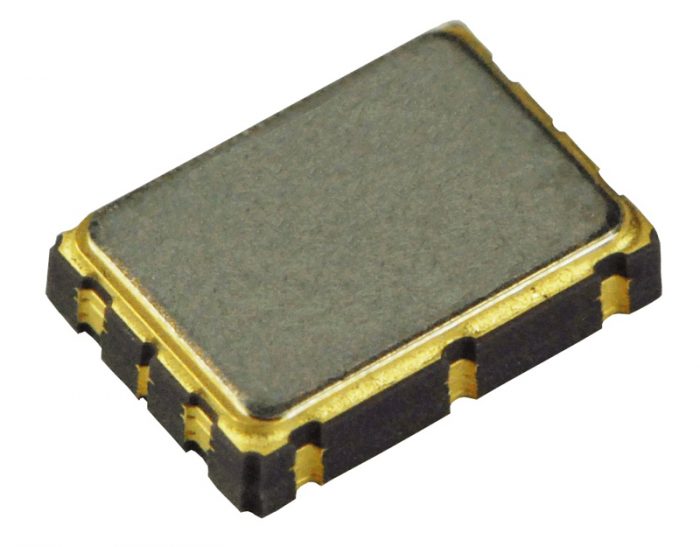

Epson’s new SG-8506 programmable oscillators offers convenience to high-speed interfaces

Epson Europe Electronics GmbH (“Epson”) presents the SG-8506 programmable oscillators (P-SPXOs) with a supply voltage of 2.5 V to 3.3 V and a wide frequency range from 50 MHz up to 800 MHZ offer a temperature range -40 °C to +85 °C and a tight stability of ±50 ppm including 10-year aging.

Epson’s SG-8506 brings the convenience of programmable oscillator technology to high-speed interfaces. Using a Σ-Δ fractional-n PLL, Epson’s SG-8506 achieves very low jitter of 0.3 psRMS (12 kHz to 20 MHz). The initial setup frequency is set using OTP (one-time programming). The user can override the startup frequency via the I2C interface.

To support rapid product development, Epson’s SG-8506 oscillators can be ordered with 24-hour turnaround from distributors or users can program their own lab using Epson’s SG-Writer II and blanks. Easy-to-use software can be downloaded from Epson’s website.

Features

• Low Jitter: 0.3 psRMS
• Fast-Turn Prototypes
• Differential output: LVPECL
• Temperature range: -40 °C to +85 °C
• Power Consumption: <90 mA maximum
• Wide Frequency Range: 50 MHz – 800 MHz
• Output Enable (OE) or Standby (ST)
