HARTING releases multiple coding options for its new Han® Q 5/0 insert

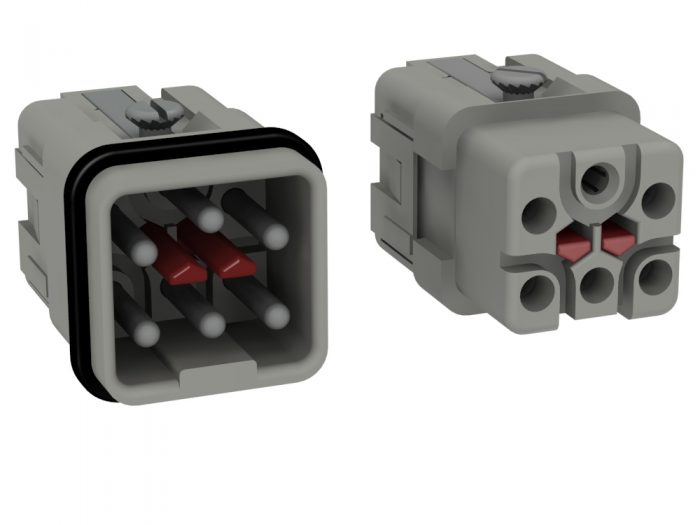

Han® Q 5/0 Einsätze
Photo by HARTING Technology Group

HARTING has equipped the Han® Q 5/0 insert for crimp contacts with a wealth of coding options. Coding is useful wherever several connectors with inserts that are impossible or difficult to distinguish from one another are mounted side-by-side in applications. Coding is intended to make it impossible for incorrect plugging to occur. This makes the connector safer when being handled.

The use of two pluggable red pins gives the Han® Q 5/0 a total of 36 different options for coding. The new Han® Q 5/0 insert with coding option – article no. 09 12 005 3004 (pin), 09 12 005 3104 (female) – is plug-compatible with the previous Han® Q 5/0 versions with crimp or Quick Lock connection.

The possible plug-in positions in the insulator are indicated by upper-case letters, facilitating correct assembly.

For more information, please visit http://www.harting.com.
