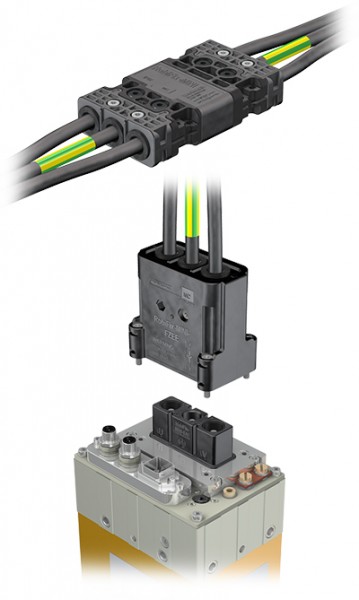

Multi-Contact’s RobiFix-MINI features extremely compact design with significantly reduced weight

Photo by Multi-Contact AG

With the latest addition to its Roboticline program, Multi-Contact has created a further solution for high-frequency welding technology. Thanks to its compact, lightweight design, RobiFix-MINI is easily integrated into modern lightweight design concepts.

The smallest member of the RobiFix family can be assembled by hand and features extremely compact dimensions (80 × 30 × 140 mm) and greatly reduced weight.

RobiFix-MINI is designed for 16 mm², 25 mm², and 4 AWG cables. Its unique, flat design means it can be installed on robot arms or as a manual connector. This connection is ideal for minimizing downtime and maintenance costs, for example in automotive body shops.

RobiFix-MINI can be used both with traditional applications within a frequency range from 50 to 3000 Hz and with new, trendsetting technologies with frequencies of up to 10 kHz. The new integrated touch protection improves safety, which increases the number of potential fields of application.

The proven MULTILAM technology guarantees exceptionally high contact reliability.

For more information, please visit http://www.multi-contact.com.
