Advantech launches its new SOM-9590 Type 7 COM Express Basic Module

Embedded Modules & Design-in Services

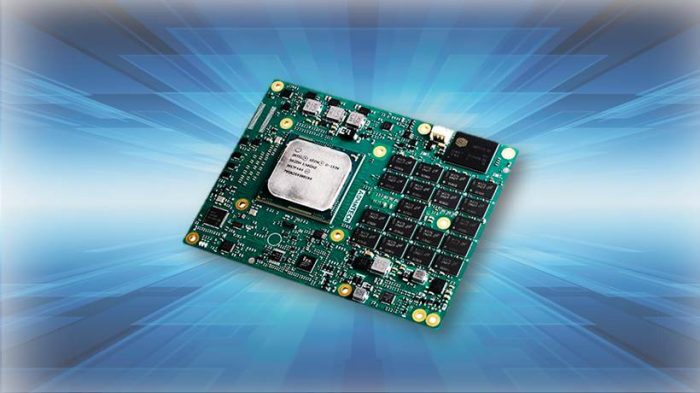

Photo by Advantech Europe BV

Advantech, a leading embedded computing solutions provider, announces the release of its new Type 7 COM Express Basic Module designed for a ruggedized applications, SOM-9590. The SOM-9590 provides an ideal foundation for new product designs due to its server-grade computing capability. With all solder-down design components, SOM-9590 meets the requirements of users requiring a reliable, high-performance solution. Target applications include railway transit, defense, mining, and communications requiring high computing power, data bandwidth, and the ablility to work in harsh indoor and outdoor environments.

Integrated Server Performance and Enhanced Security Protection

SOM-9590 delivers powerful server-grade performance powered by Intel ® Xeon® processors and integrated with two 10GBASE-KR interfaces to help fulfill ever-increasing computing application demands in the area of edge networks. Users can take advantage of SOM-9590’s native 10GBASE-KR interface to design 10GbE carrier boards. TPM 2.0 is secured with 128bit capability (up to 256bit), a secure boot, and frozen BIOS to provide the best possible protection for user applications.

Reliability Guaranteed for Mission-Critical Applications

SOM-9590 features many design elements that fulfill the requirements of demanding environments. All components, including the processor, DDR4 memory, and SSD storage use onboard design, meet industrial-grade standards, and are IPC-A-6012 class 3 compliant in the hardware and layout phase. With certification from the MIL-STD-810G standard, SOM-9590 meets the exact demands of military applications. It’s capable of survival at vibration 7.7Grms (Method 514.7C-4), operating at a 50,000 feet altitude (Method 500.6 Procedure II), and it can perform in a -40 ~ 85°C temperature range. SOM-9590 has the IPC-A-610G Class 3 qualification—defined by IPC-org as fulfilling the highest quality product demands for critical applications.

SOM-9590D8AA-U0A1 is available for order. Please contact an Advantech sales office or visit the website (www.advantech.com) for more information.

SOM-9590 Features

Powerful Performance Capability in Slim Body

  • Intel® Xeon® Processor D1539 with TDP 35W
  • iManager, WISE-PaaS and Embedded Software APIs
  • Low Module Profile 10.3 mm
  • Wider Ability in Bandwidth and Connectivity
  • Configurable PCIe Gen3 x16, x8 and 7 x1 expansion
  • Two 10GBASE-KR interfaces and 1000BASE-T
  • USB 3.0/ 2.0, SATA III, UART, GPIO and I2C

24/7 Non-Stop Reliability for Extreme Environments

  • Onboard ECC Memory and Storage SATA SSD
  • Certified by Miltary Standard MIL-STD-810G
  • Qualified by Manufacturing Process IPC-A-610G Class 3

Add-on Services

  • Conformal Coating Services
  • Advanced Cooling Solution – Quadro Flow Cooling System (QFCS)
  • Enhanced longevity of 7-15 yrs and beyond for long life military programs

For more information, please visit http://www.advantech.eu.
